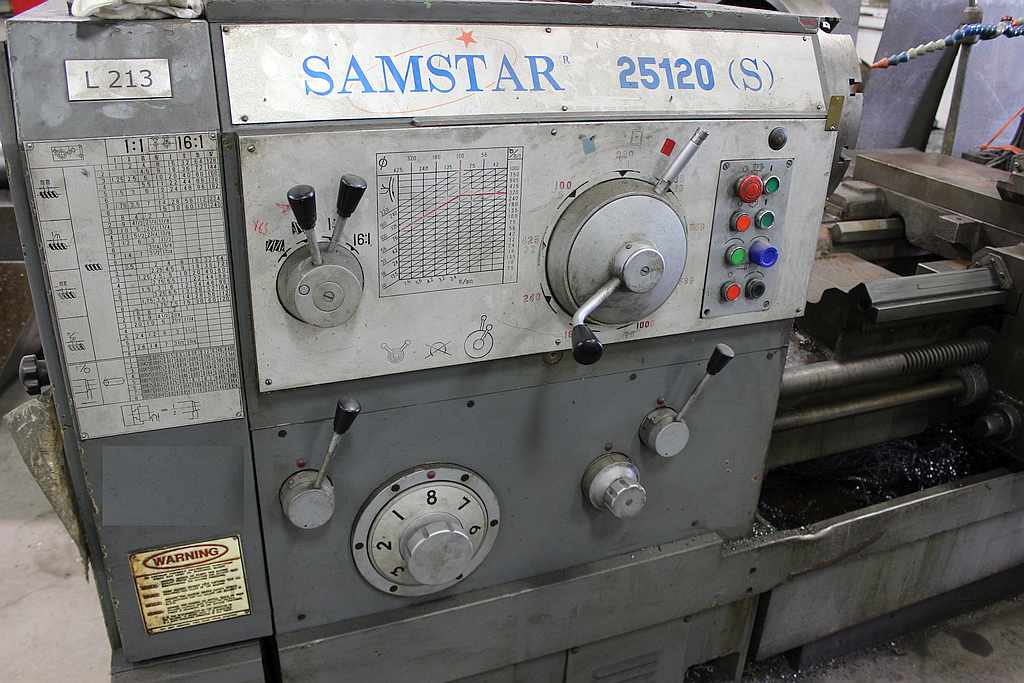

25" X 144" CC, SAMSTAR, 1997, 2-AXIS SONY DRO, TAPER ATTACH., LOADED W/ TOOLING OUR STOCK NUMBER: 10970

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


Unknown
Lathes (Manual)
Engine Lathes
used
10000 (LB)
1997
$0.00

Description

NEW: 1997

SPECIFICATIONS:
SWING OVER BED WAYS.............................. 25"
DISTANCE BETWEEN CENTERS......................... 120"
SWING OVER CROSS SLIDE........................... 15 3/4"
SWING IN GAP..................................... 36 5/8"
CROSS SLIDE TRAVEL............................... 19 3/4"
TOP SLIDE TRAVEL................................. 9 3/8"
SPINDLE NOSE CAMLOCK............................. D1-11
SPINDLE BORE..................................... 4 1/2"
SPINDLE SPEEDS (18).............................. 10 - 1000 RPM
TAILSTOCK QUILL DIAMETER......................... 4"
TAILSTOCK QUILL TRAVEL (2 SPEED)................. 12"
QUILL INTERNAL TAPER............................. #6 MT
BED WIDTH........................................ 21 3/4"
METRIC THREADS (51).............................. 1 - 240mm
INCH THREADS (40)................................ 14 - 1/16 TPI
MODULE THREADS (53).............................. 0.5 - 120mm
DIAMETERAL PITCH THREADS (42).................... 30 - 1/8 TPI
ENLARGED FEEDS AND PITCH THREADS CHANGE GEAR TO.. 16 TO 1 RATIO
LONGITUDINAL FEEDS (64).......................... 0.0037 - 0.9055 IPR
LONGITUDINAL RAPID FEED.......................... 160 IPM
MAIN MOTOR....................................... 20 HP
RAPID TRAVERSE MOTOR............................. 1 1/2 HP
COOLANT UNIT MOTOR............................... 1/8 HP
APPROX. OVERALL DIMENSIONS....................... 203" L x 76" W x 61"H
APPROX. WEIGHT................................... 10000 LBS

OUTSTANDING FEATURES & EQUIPMENT LIST:

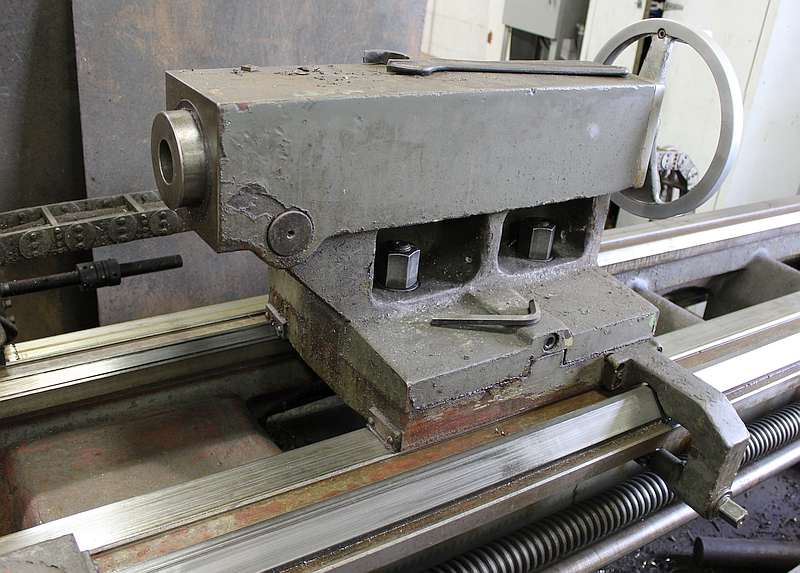

TAPER ATTACHMENT

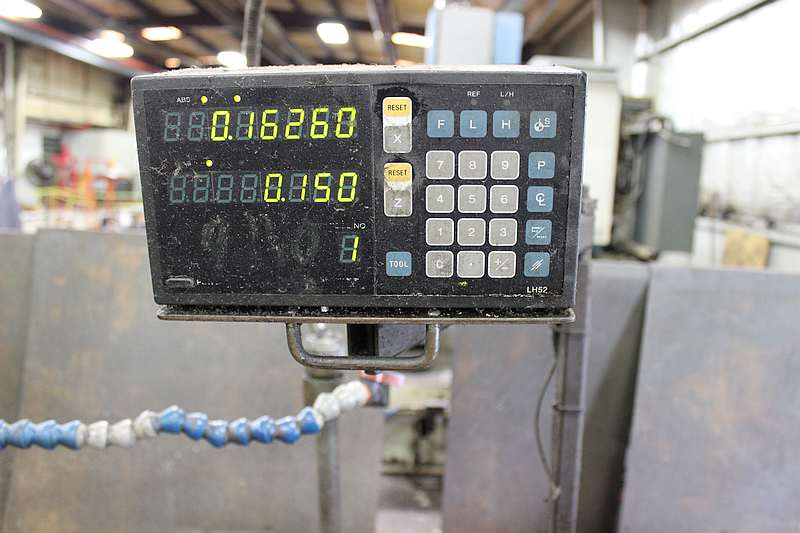

SONY DIGITAL READOUT SYSTEM

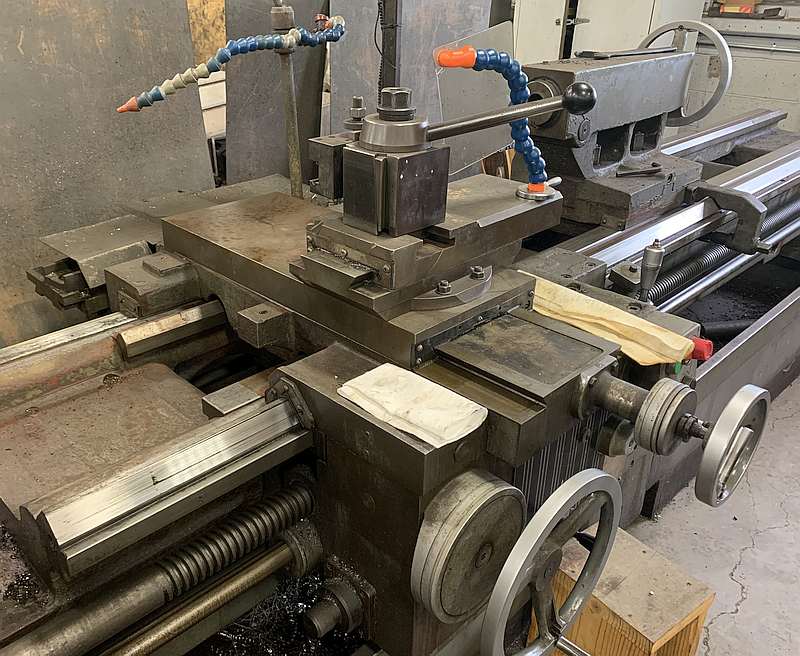

DROP ON / QUICK CHANGE TOOL POST W/ HOLDERS
COOLANT SYSTEM
SPLASH GUARD

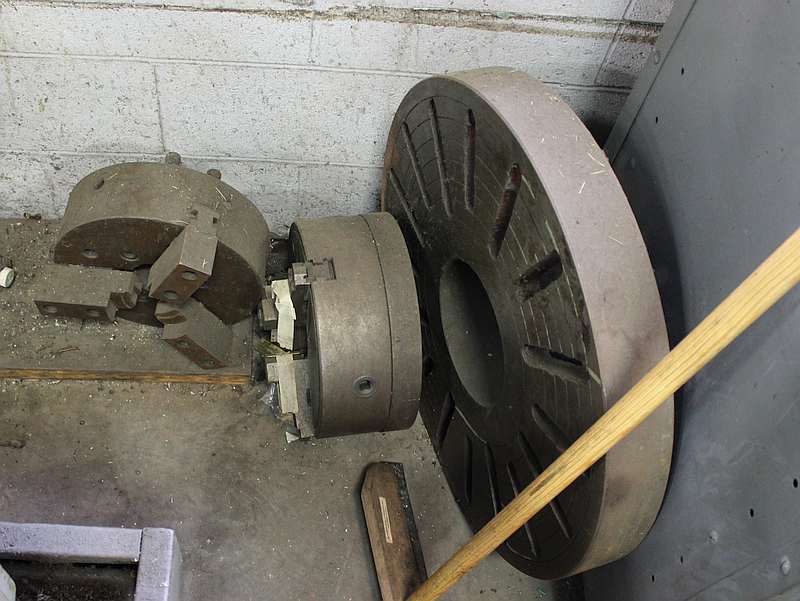

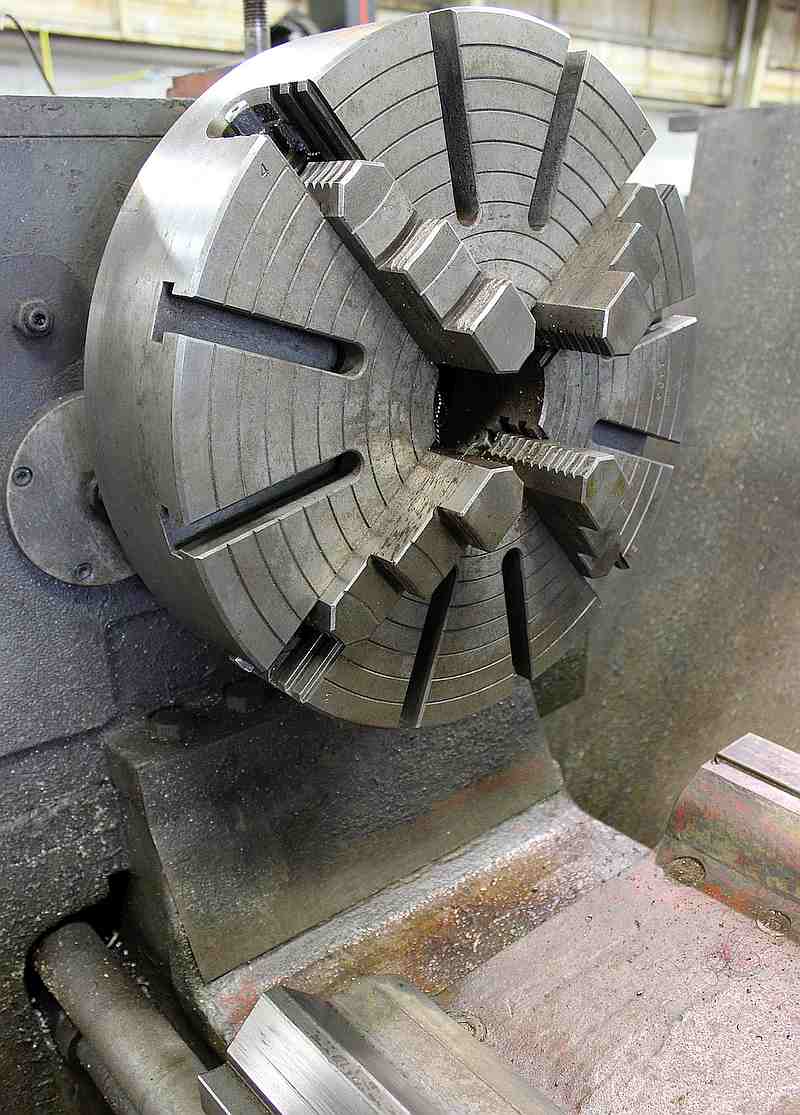

18" 4-JAW CHUCK
12" 3-JAW CHUCK
26" SLOTTED FACE PLATE
SPINDLE REDUCTION SLEEVE
STANDARD & LARGE CAPACITY STEADY RESTS
FOLLOW REST
WORK LIGHT
FOUR WAY POWER RAPID
HARDENED & GROUND BED
CLUTCH & BRAKE SYSTEM
4 POSITION TURRET
2 SPEED TAILSTOCK
#6 MT CENTERS

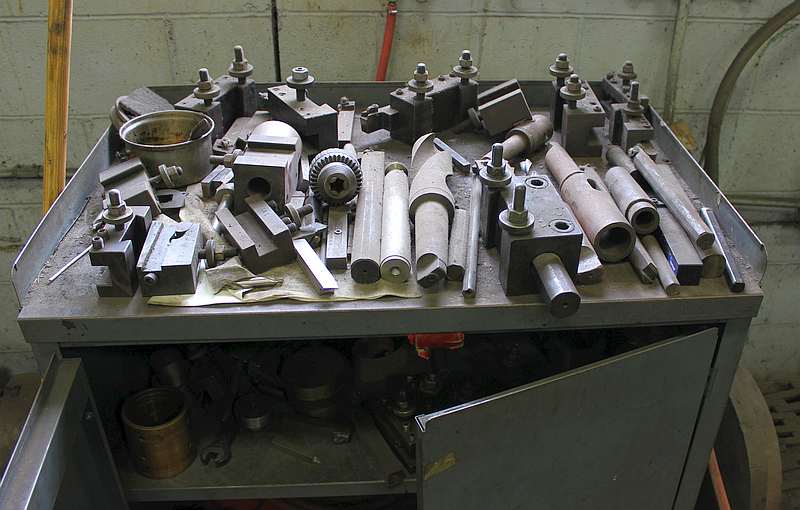

ALL AVAILABLE TOOLS & MANUALS

SPECIFICATIONS SUBJECT TO VERIFICATION
