'REFERENCE NUMBER: 14054C
MODEL #: N/A
SERIAL #: 005
25 TONS MAXIMUM CAPACITY
32″ FB x 34″ LR BED AND UPPER PLATTEN
4 POST @ 2-1/2″ DIAMETER
26″ LR x 24-5/8″ FB DISTANCE BETWEEN POSTS
13″ STROKE (MIN)
30-1/4″ DAYLIGHT OPENING

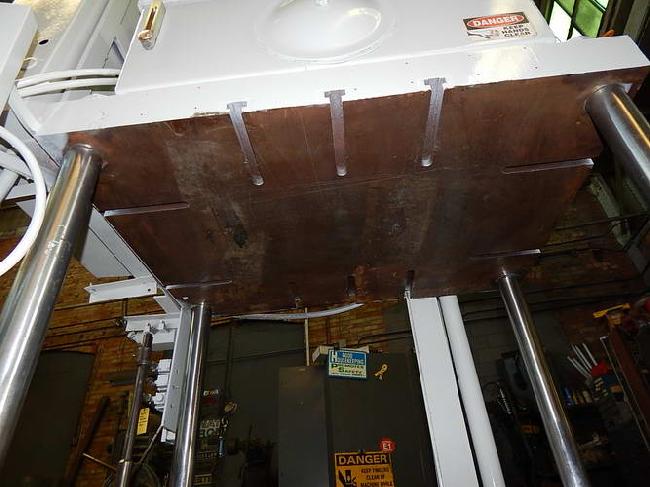

4″ UPPER PLATEN THICKNESS
69″ FLOOR TO PLATEN
110″ OVERALL HEIGHT
UP-ACTING BED

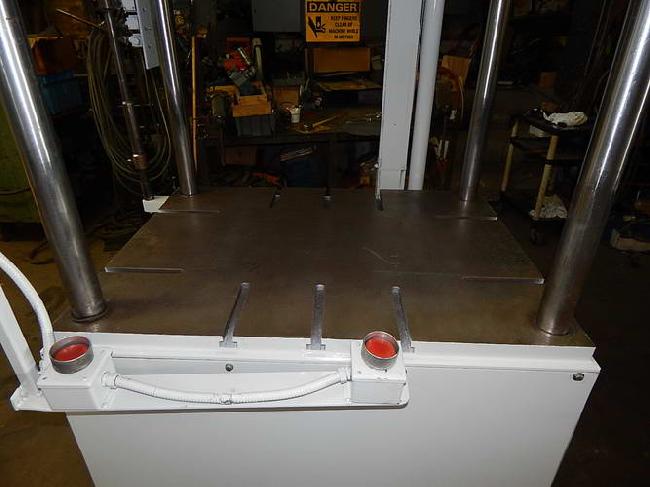

T-SLOTTED LOWER RAM AND PLATEN
DUAL PALM BUTTONS
MOTOR: 20 HP 220/440/ 3/60
INCH, SINGLE, AUTO MODES
To view more information on the 25 TON KEYSTONE 4 POST UP-ACTING HYDRAULIC TRIM PRESS, including reviews, brand information, photos, videos, and more,
