25 CUBIC FOOT ALMCO VIBRATORY FINISHER
PRICE: Loaded on Truck, Our Warehouse, York, PA $17,500.00
HMC Stock No. 18005
Machine Serial No. 119602
Machine Model No. OR25VLR
New Date: 1996
Bowl Type
Bowl Inside Dimension: 90-1/2"
Processing Channel: 14" Wide x 16" Deep
Discharge Door: 12" x 6-1/2"
Discharge Chute Height: 47-3/8"
Vibration Frequency: 900 to 1250 VPM
EQUIPPED WITH:

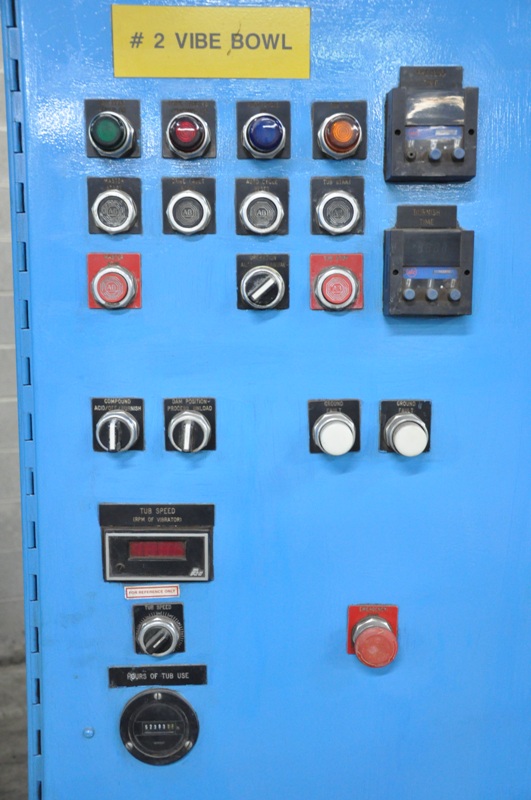

Operator Control Panel with Manual and Auto Cycles
Liquid Compound On/Off, Process Timer, Burnish Timer
Allen Bradley AC Inverter Tub Drive, Model 1336 Plus
Fabricated Base Construction with (6) 6" Dia. x 8" Long Coil Springs
Swiveling Sound Enclosure
20 HP Main Motor
Wired for 3 Phase, 60 Cycle, 230/460 Volts

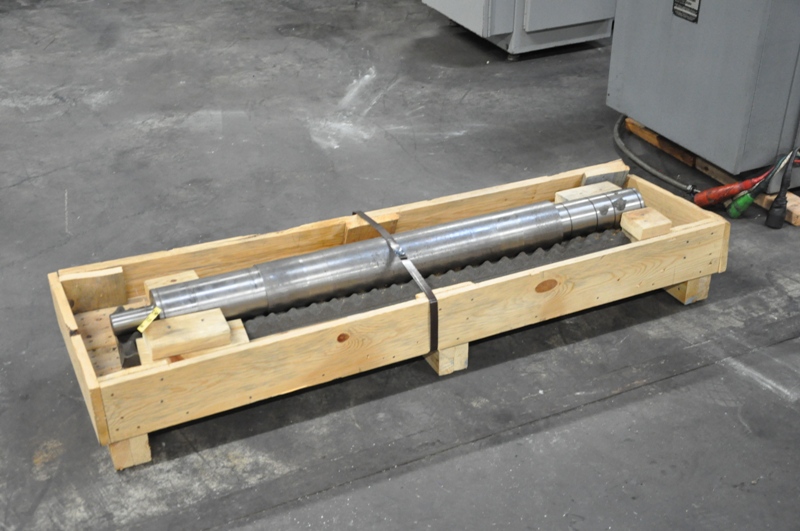

In 2003 the tub was stripped and a new neoprene lining was molded. Drive shaft was replaced with a new one and a new larger bearing. A spare used drive shaft comes with the machine and is in very good condition. Machine has been in storage since this work was done.
Overall Machine Size Assembled: 101" Dia. x 85" High
Control Panel: 36" L-R x 22" F-B x 88" High

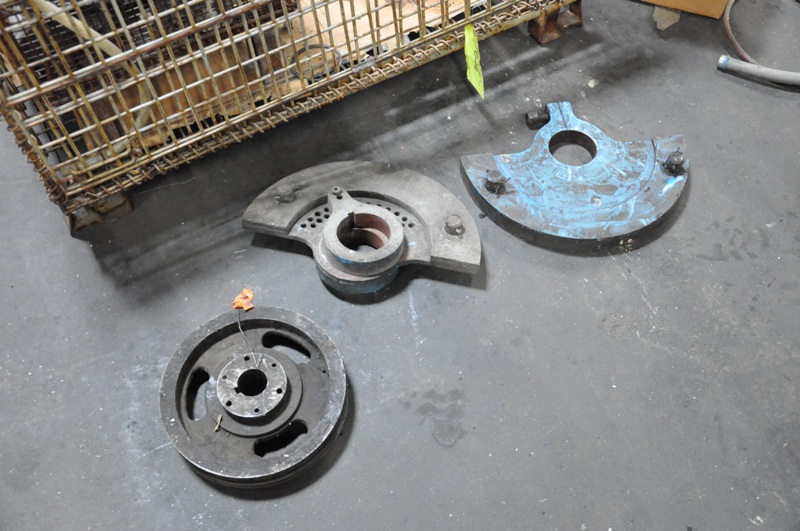

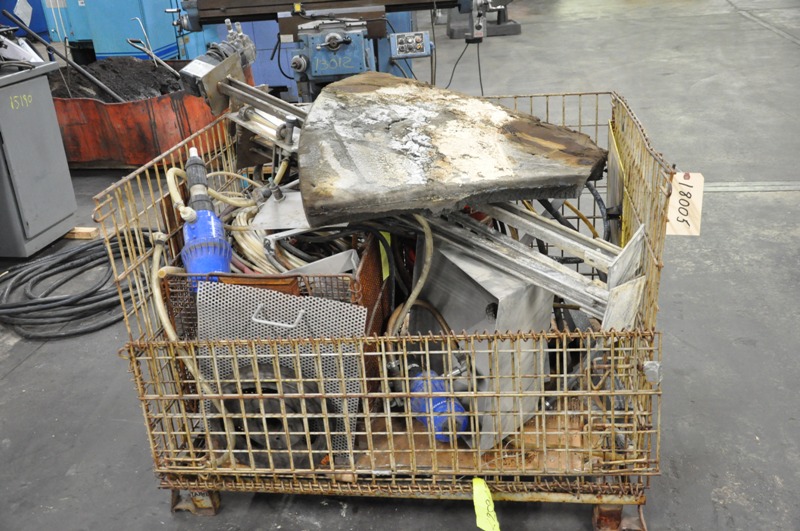

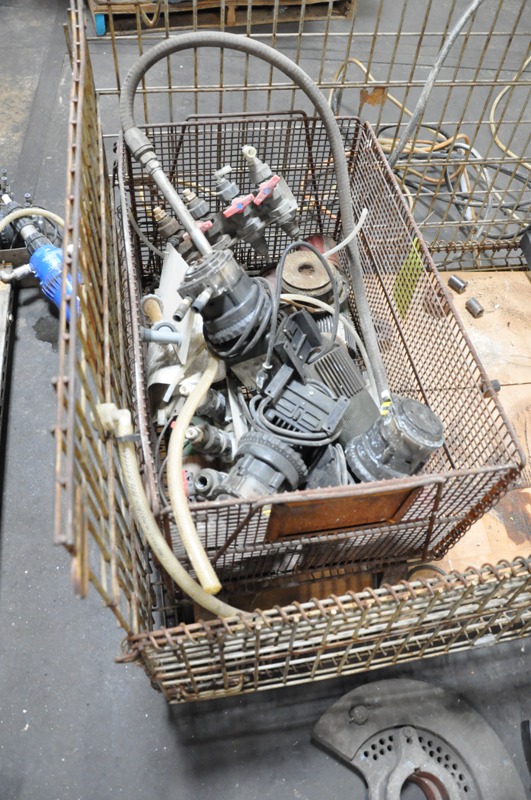

Basket with Assorted Parts: 48" L-R x 40" F-B x 40" High
Metal Stand for Bowl: 84" L-R x 78" F-B x 66" High
Sound Enclosure Segments: 84" L-R x 60" F-B x 81" High
Hood for Bowl: 109" L-R x 80" F-B x 60" High
Skid of Shipping Legs: 48" L-R x 48" F-B x 12" High
