25.5" X 80" HAAS SL-40LB 2-AXIS CNC TURNING CENTER LATHE - HAAS SL-40LB
SL-40LB
Lathes and Turning Centers CNC
2 Axis Turning Center
used
(LB)
2007
$0.00

Feature Video

Description

Specifications:
Over Front Apron 34.5" Over Cross Slide 25.5" Over Tailstock 25.5" Capacities: Max. Cutting Diameter (varies with turret) 25.5" Max. Cutting Length (without workholding) 80" Bar Capacity 6.5" Travel & Feedrates: X Axis 17" Z Axis 80" Rapids on X 710 in/min Rapids on Z 320 in/min Max Thrust X 5500 lb Max Thrust Z 9,000 lb Spindle: Max Rating 55 HP Max Speed 1400 RPM Spindle Nose A2-11 Spindle Bore 7.0" Turret: Number of tools 12 Stations OD vs ID Tools (Any combination) Will Vary With Turret Style Boring Bar Rear Clearance (form back of turret) 4.37" General: Air required 4scfm, 100 PSI Coolant capacity 120 Gal

Equipped With:

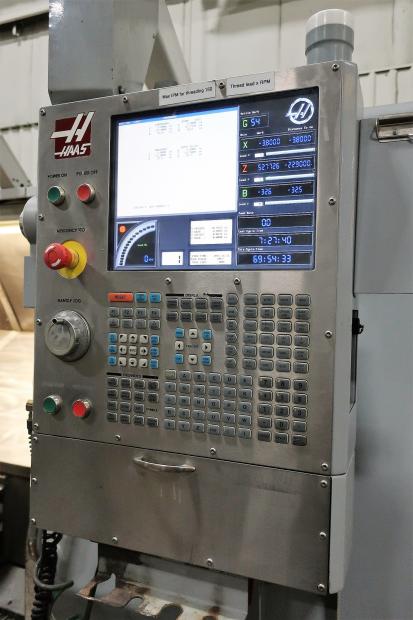

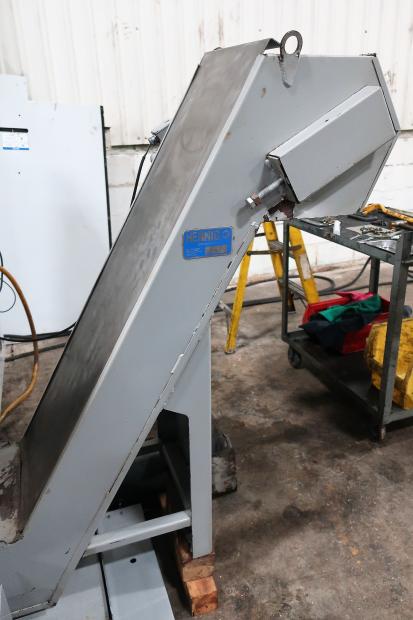

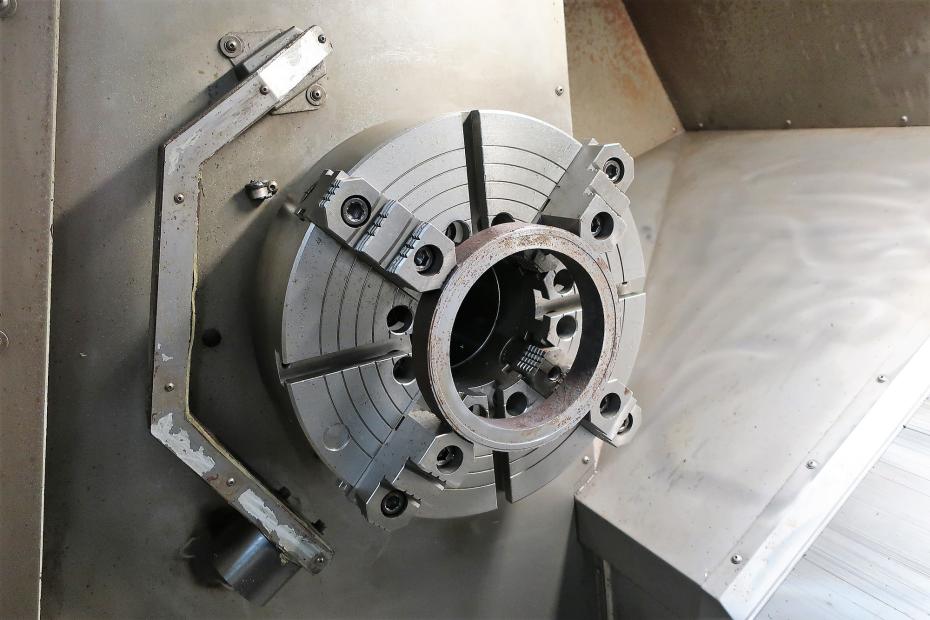

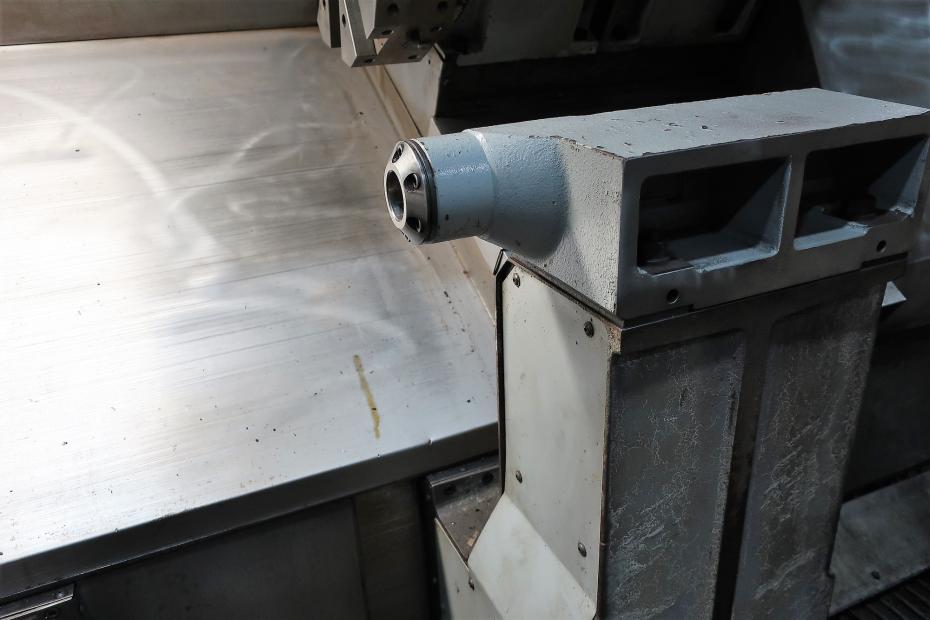

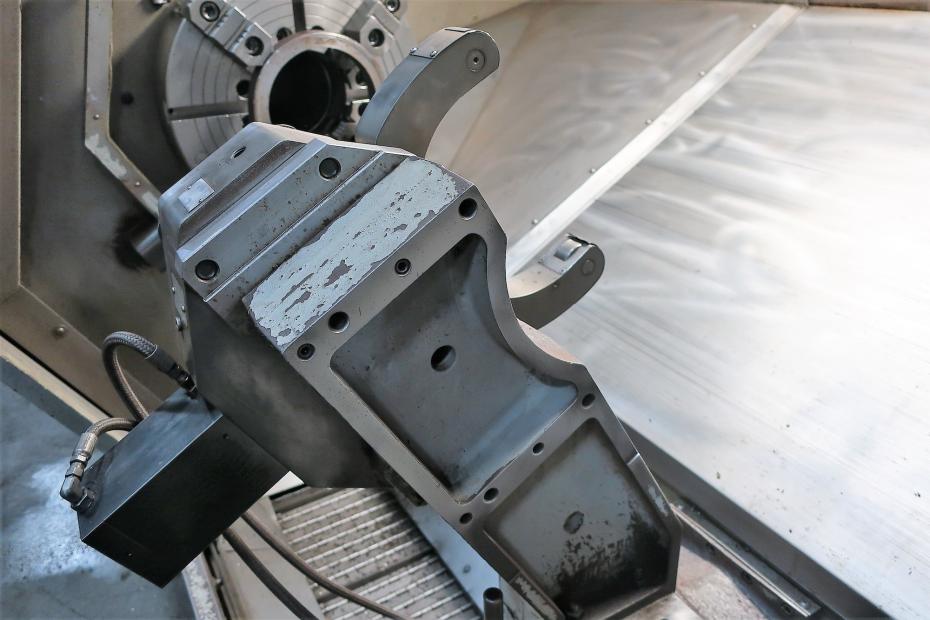

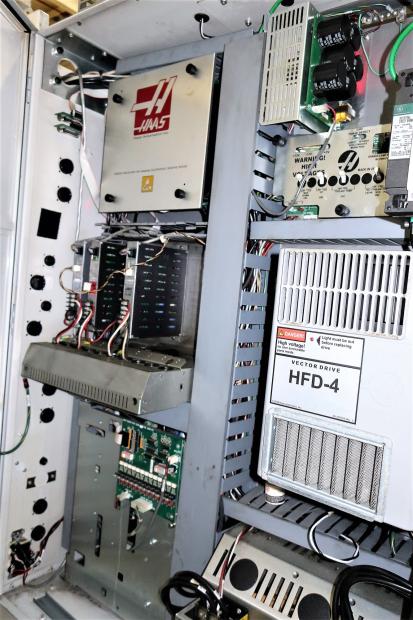

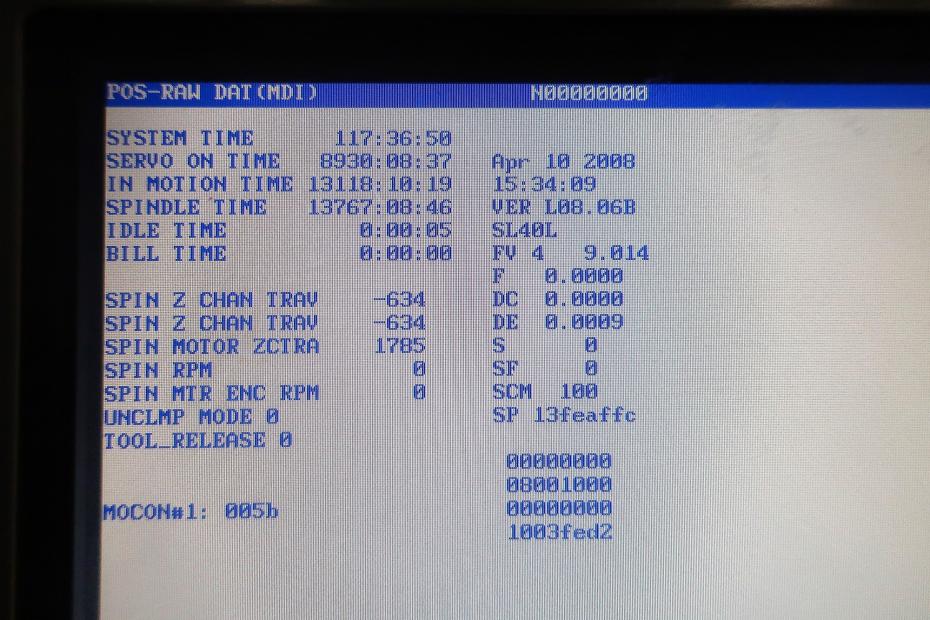

Haas CNC Controls Big Bore Spindle, 7.0" Bore Hydraulic Steady Rest High Pressure coolant system 55 HP High Performance option Chip Conveyor 20" 4-Jaw Chuck Tailstock Remote Jog Handle All Available manuals Spindle Orientation visual quick code set up for Tool Probe(no probe) High Intensity Lighting Tool Presetter rigid Tapping Remote Jog Handle Ethernet User definable macros auto jet blast early power failure detection

25.5" X 80" HAAS SL-40LB 2-AXIS CNC TURNING CENTER LATHE, 7" Bore, Hydraulic Steady rest,
Stock Number 12871
