Inventory Number: 2480-150
Technical Specifications:
220V/3PH/60HZ
Year of manufacture: 2000

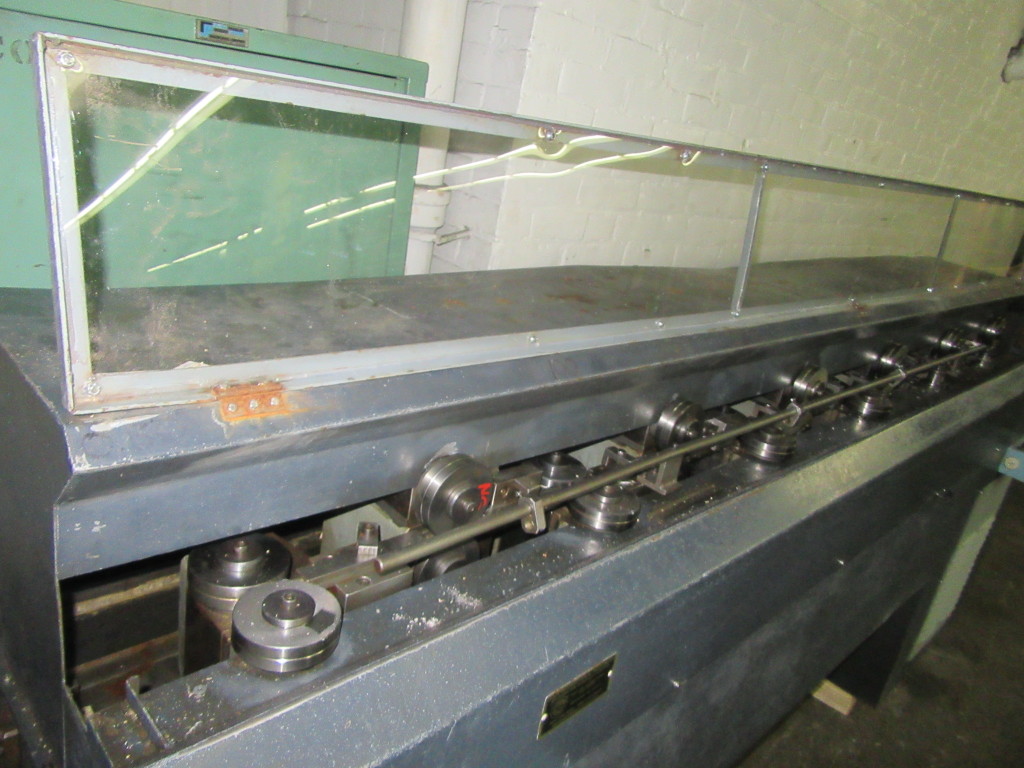

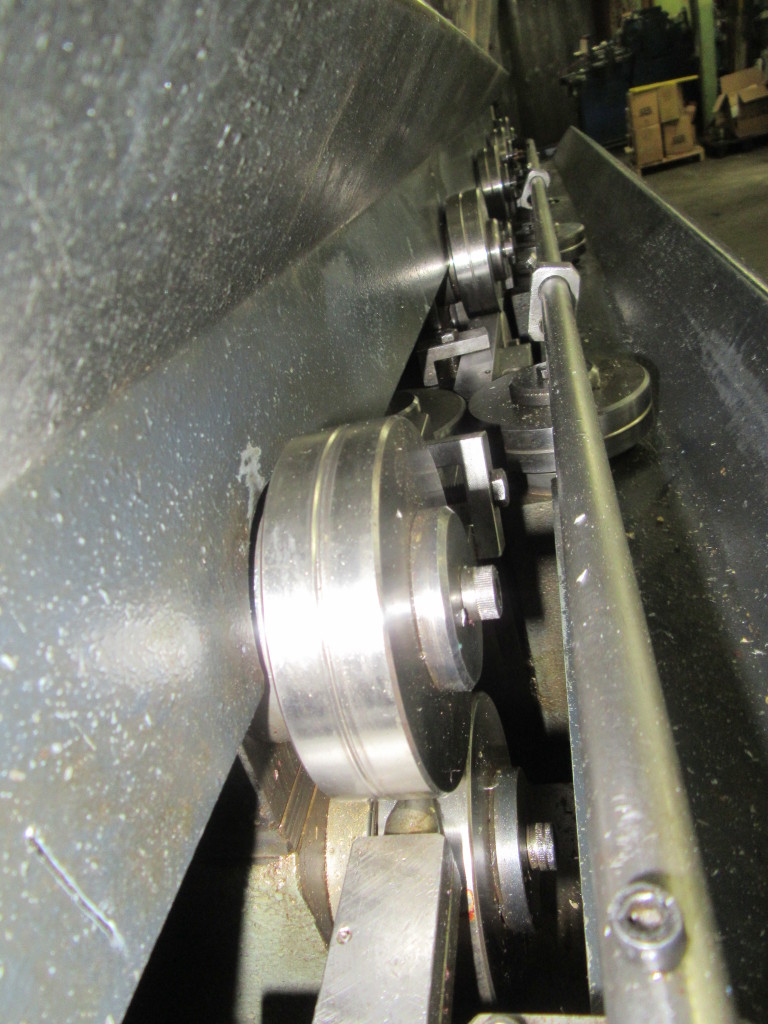

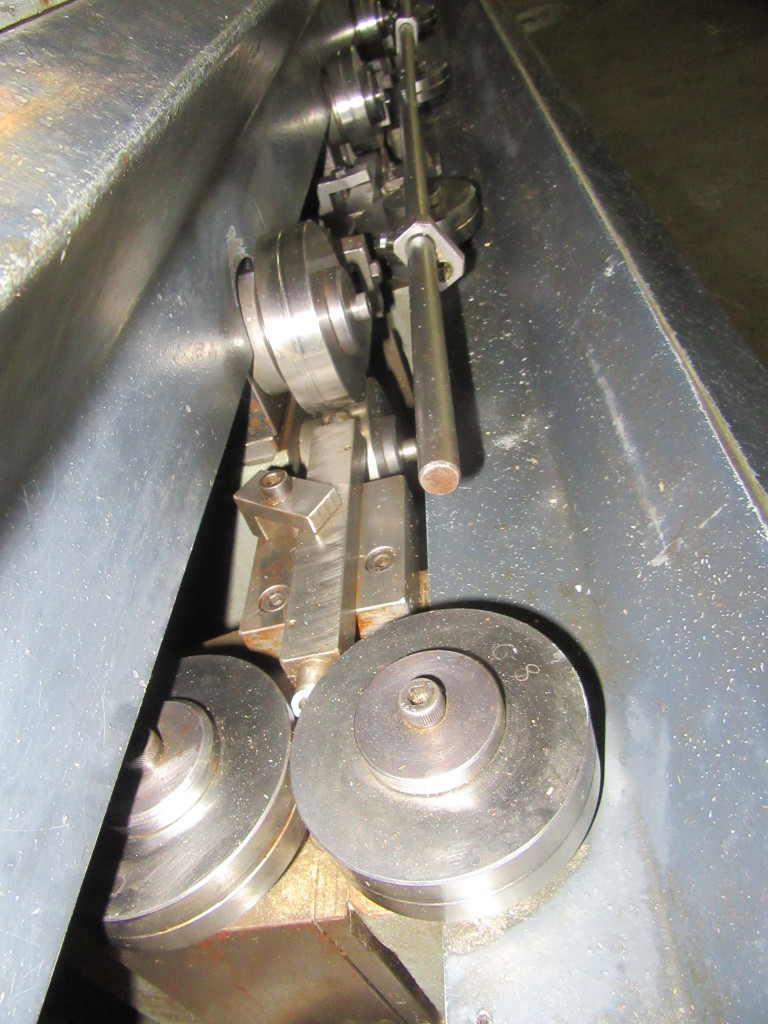

Number of rolling heads: 12
Production speed: 20 & 70 meters/minute
Motor: continuous governing from 4.5 to 6 HP
Tooled wire size capacity:
MINIMUM: .120"
MAXIMUM: .040" square
(See Sample Photo Below)
Reduction is 8% Per Roll
Roll size: 3.5" diameter
Overall dimensions: 102" x 24" x 48" high
Estimated weight: 2000 Lbs.
The maximum input for this machine is 0.19 Inch (square wire 5mm) and the machine has standard reduction, normally used only for solid wire.
Inlet wire size measures approximately 0.12" - 3.048 MM
outlet wire size measures approximately 0.04" - 1.016 MM
Equipped With:
Speed reducer
With hookups for Coolant & lubrication - an external pump and tank is required for oil Mobil met 446 cutting oil ( no emulsion )

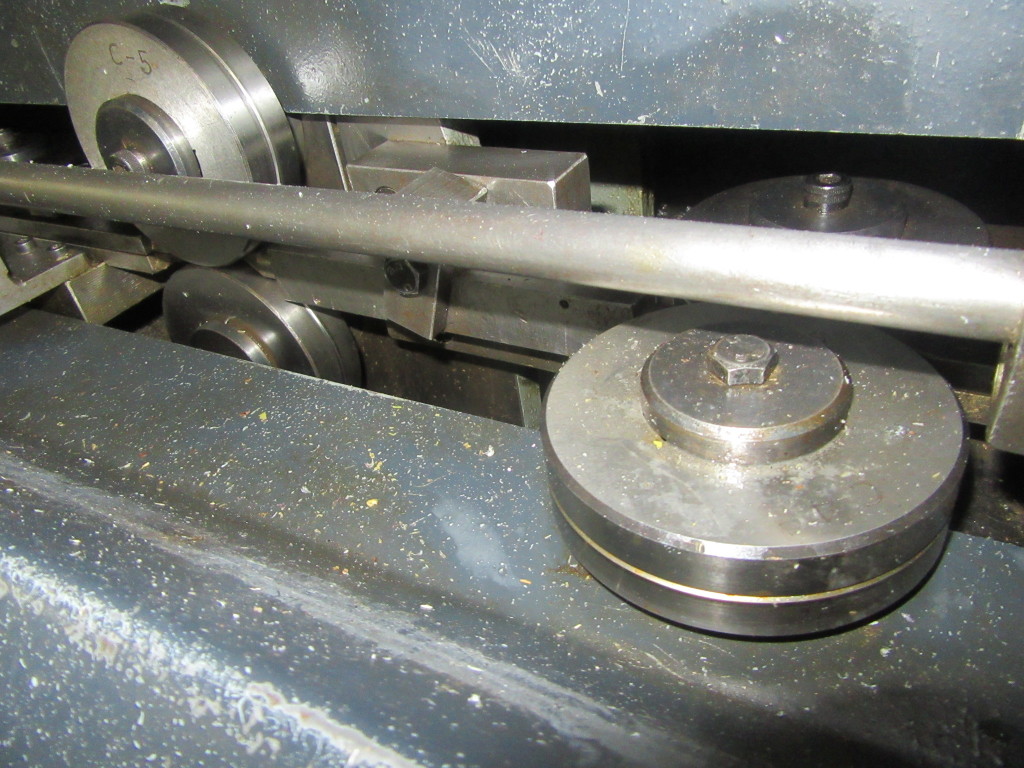

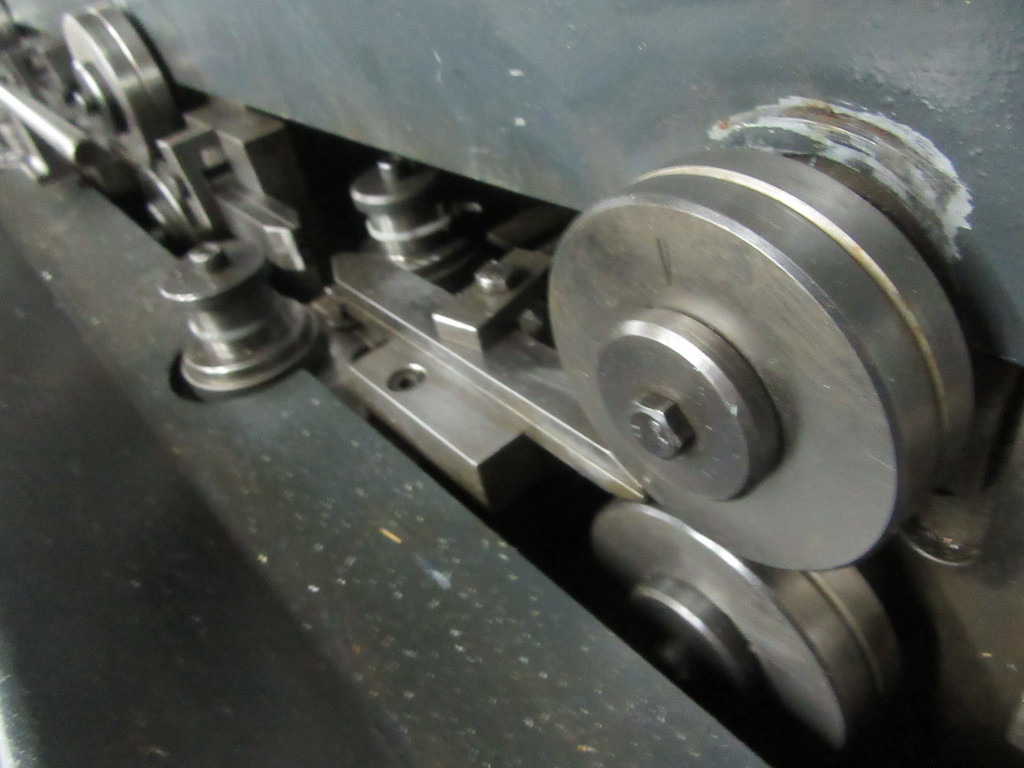

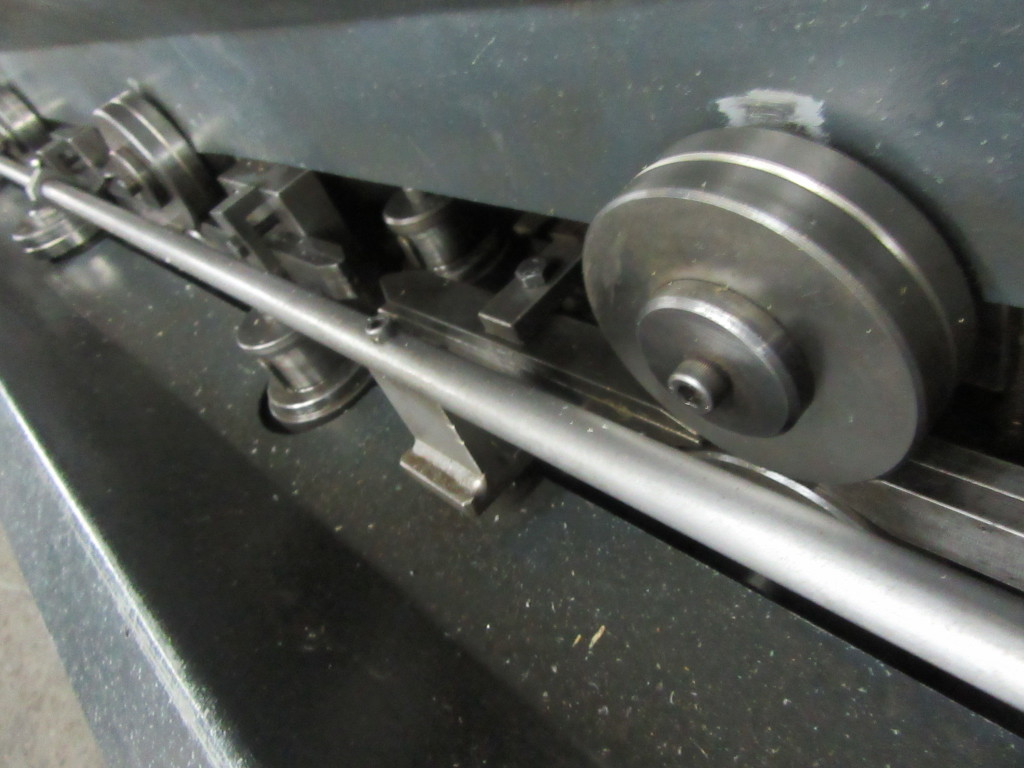

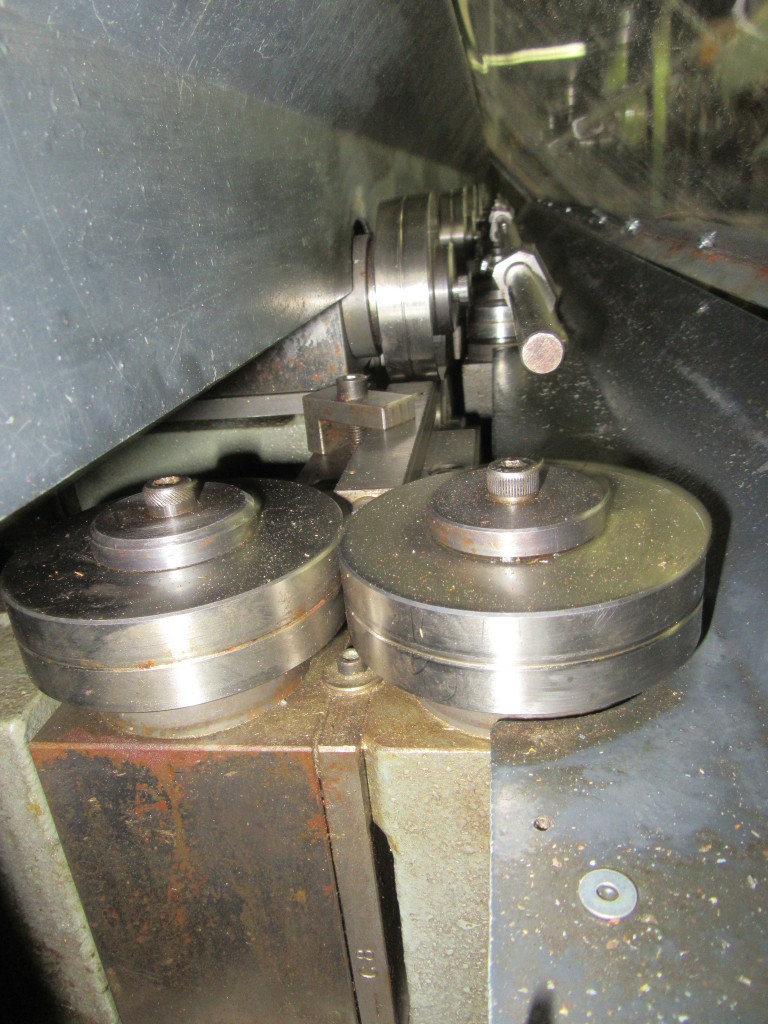

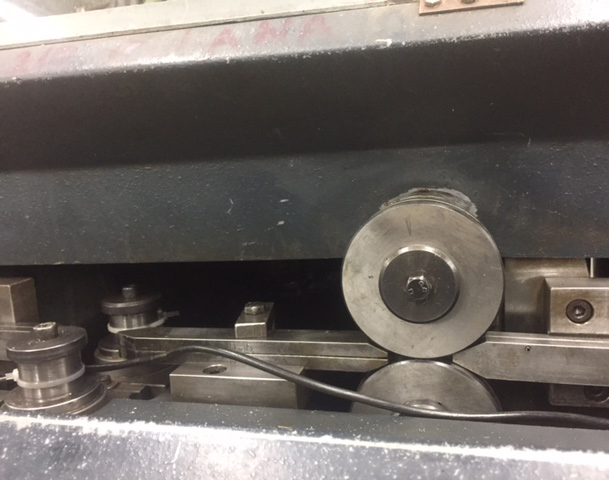

High Chromium steel rolls
