Tonnage (US): 247 tons
Maximum Bend Length: 169.3"
Distance Between Frames: 148"
Stroke Length: 9.8"
Open Height (no holders): 20.5"
Throat Depth: 17.7"
Machine Stroke: 9.8"
Table Height: 37.4"
Approach Speed: 8.7" per second
Bending Speed: 0.79" per second
Return Speed: 9.8" per second
Number of Cylinders: 3
Hydraulic Fluid Capacity: 33 gallons
Machine Length: 209"
Machine Width: 95"
Machine Height: 127"
Machine Weight: 41,100 lbs.
Nominal Supply Current: 100 A
Provided Power: 36 kVA
Backgauge Range: 27.5"

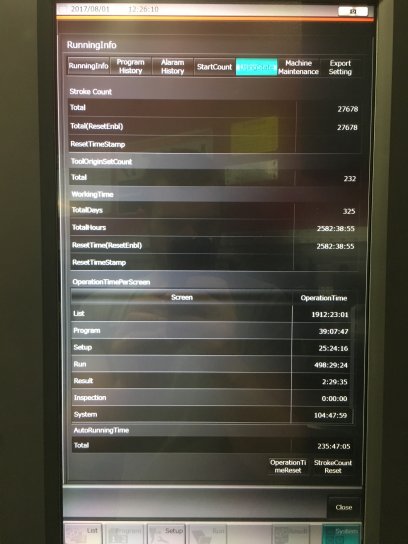

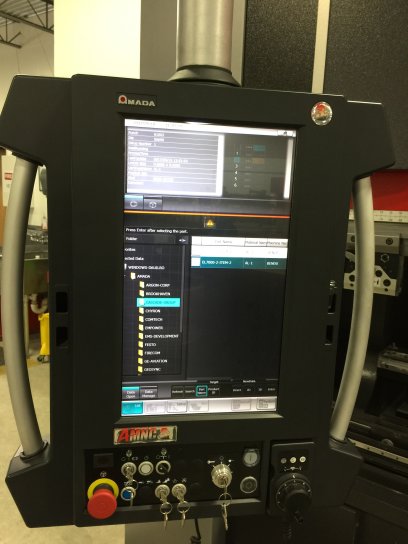

Control Type: AMNC 3i
Program Capacity: Unlimited via net
Possible Axis Under CNC Control: 11
RAM: D1 & D2
Backgauge: L1 & L2
Backgauge Horizontal: Y1 & Y2
Backgauge Vertical: Z1 & Z2
Ram Repeatability: 0.00004"
Backgauge Speed (L-axis): 1,181" per minute
Backgauge Speed (Y-axis): 3,543" per minute
Backgauge Speed (Z-axis): 787" per minute
To view more information on the 247 TON X 169.3" AMADA HG 2204-M20 MFG: 2015 Â OUR STOCK NUMBER: 10865, including reviews, brand information, photos, videos, and more,
