System Specifications

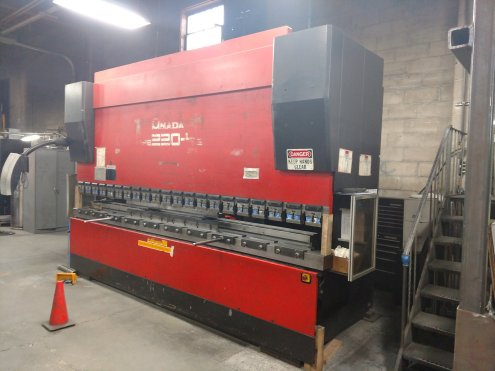

Hydraulic Press Brake
Capacity : 242 U.S. tons
Bed Length: 168 inches
Maximum Stroke Length : 7.8 inches
Open Height : 18.5 inches
Throat Depth : 16.5 inches
Distance Between Side Frames: 148 inches
Ram Repeatability : +/- 0.0004 inches
Approach Speed : 7.87 inches per second
Bending Speed : 0.04 to 0.787 inches per second, programmable
Return Speed : 0.04 to 7.87 inches per second, programmable
Overall Machine Length: 193.7 inches
Machine Width : 68.5 inches (105" including control and pendant)
Machine Height : 119.25 inches
Hydraulic Oil Capacity : 92 gallons
Machine Weight: 37,700 pounds
Backgauge: Model: Amada Type B
Repeatability
X Axis +/- 0.0004 inches
Movement Range
X Axis 27.5/37.5 inches
R Axis 9.84 inches
Z Axis 72 inches
Feed Speed
X Axis 19.5 inches per second
R Axis 6.2 inches per second
Z Axis 39.3 inches per second
CNC Controller, Model: Amada OPERATEUR:
Axes of Control
7 standard
Y1Y2 Ram depth
X1X2 Backgauge
Z1Z2 Horizontal finger position of two stoppers
R Vertical finger position of two stoppers
Please click on link to view video under power:
https://youtu.be/J92gG_wnyAg
To view more information on the 242 TON X 167" HFE2204 "DOWN-ACTING" CNC PRESS BRAKE MFG:2000 Â OUR STOCK NUMBER: 11152, including reviews, brand information, photos, videos, and more,
