Inventory Number: 2417-310
Technical Specifications:
208V/3PH/50-60HZ

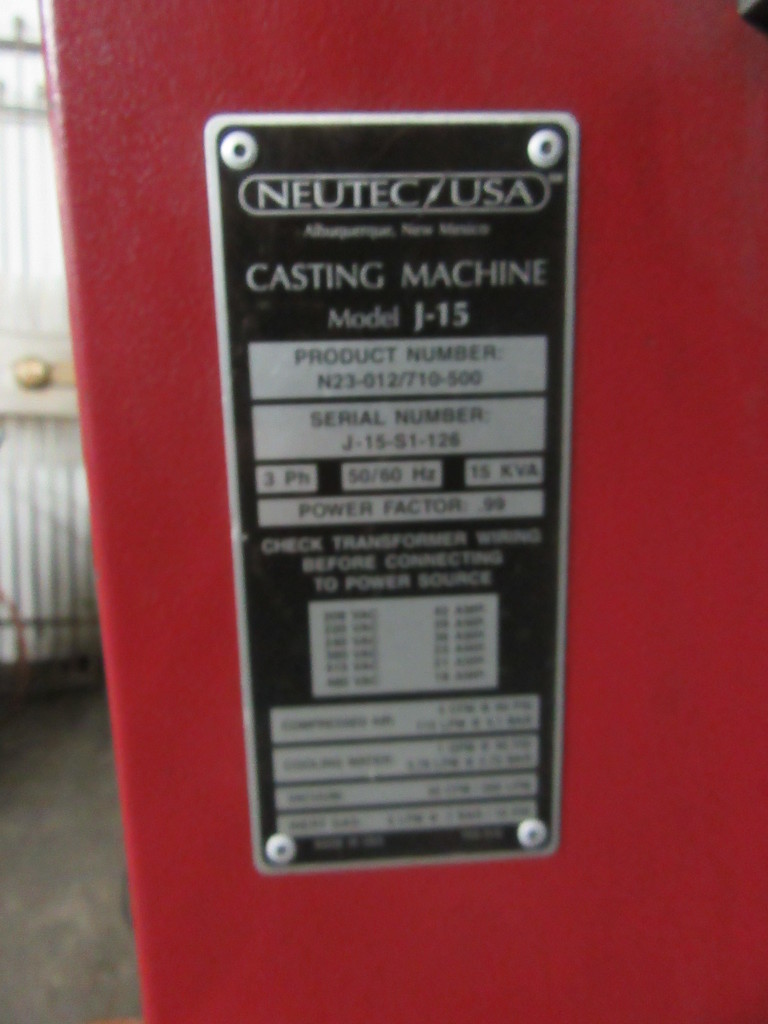

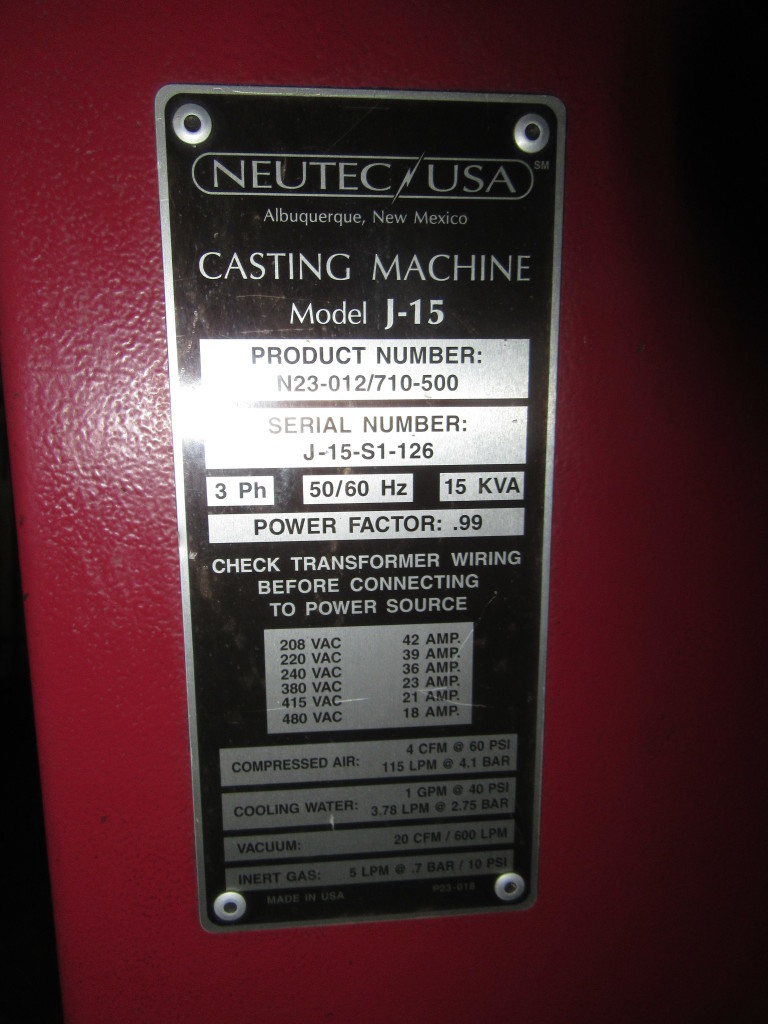

S/N: J-15-S1-126

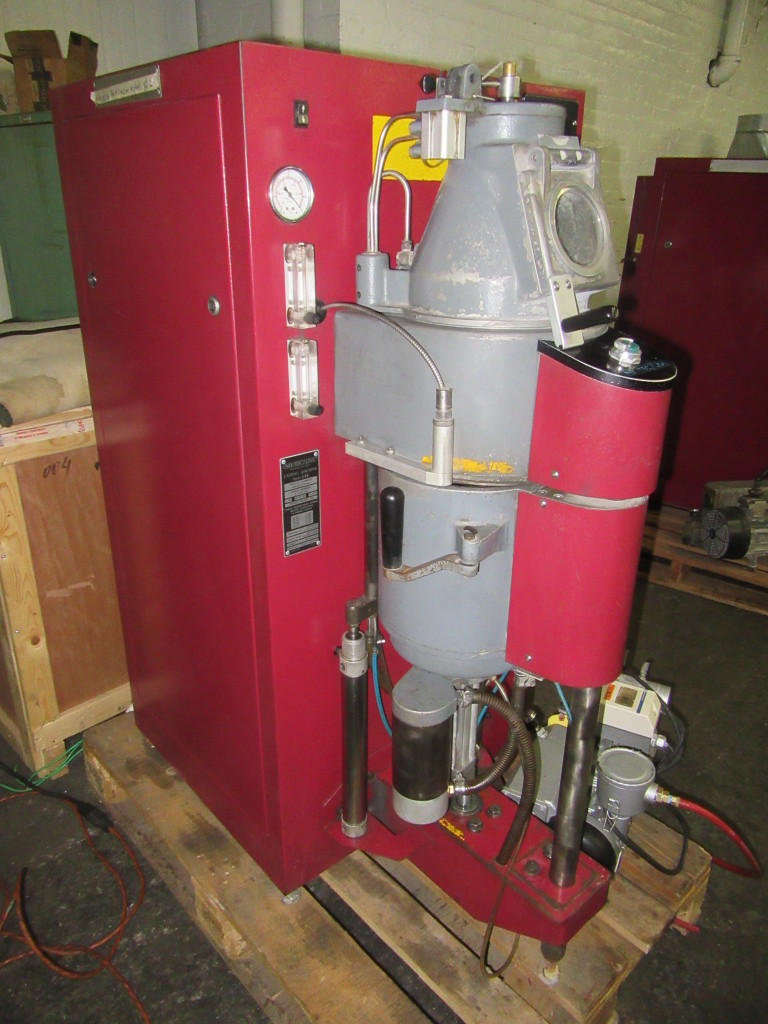

Variable frequency production caster
Cycle time: less than 3 minutes
Production: up to 25 flasks per hour
Crucible capacity: 1961 gr - 14 kt gold
Alloy capacity: up to 5424 gr - 14 kt gold
Working capacity of casting crucibles: 60% of liquid capacity(fine grain) alloy
Maximum power: 15kW
Maximum flask capacity: 152mm diam. x 305mmH
(perforated only; flanged or flangeless) 6" diam. x 12"H
Minimum flask capacity: 76.2mm diam. x 152mmH
(perforated only; flanged or flangeless) 3" diam. x 6"H
Normal cycle time: 21/2 to 3 minutes
Max. temperature: 1550 deg C/2825 deg F
CRATED DIMENSIONS: 40" WIDE X 54" LONG X 75" HEIGHT
CRATED WEIGHT: 1190 Lbs
UNCRATED DIMENSIONS: 26" WIDE X 42" LONG X 56" HIGH
UNCRATED WEIGHT: 950 Lbs.
Equipped With:
Vacuum pump
Water pump
15 KVA power refractor
REPLACEMENT PRICE NEW
NUETEC JL15 REPLACED WITH MODEL 615
PRICE NEW $78,700 (INCLUDES WTR COOLER & GRAIN TANK)
