PROCECO PASS THROUGH PARTS WASHER

PRICE: Loaded on Truck, Our Warehouse, York, PA …… $54,500.00

Stock # 12154
Serial # 01-302
New 2001
Model # BCW24X24-G-8PW-4W-BO-SS-SC

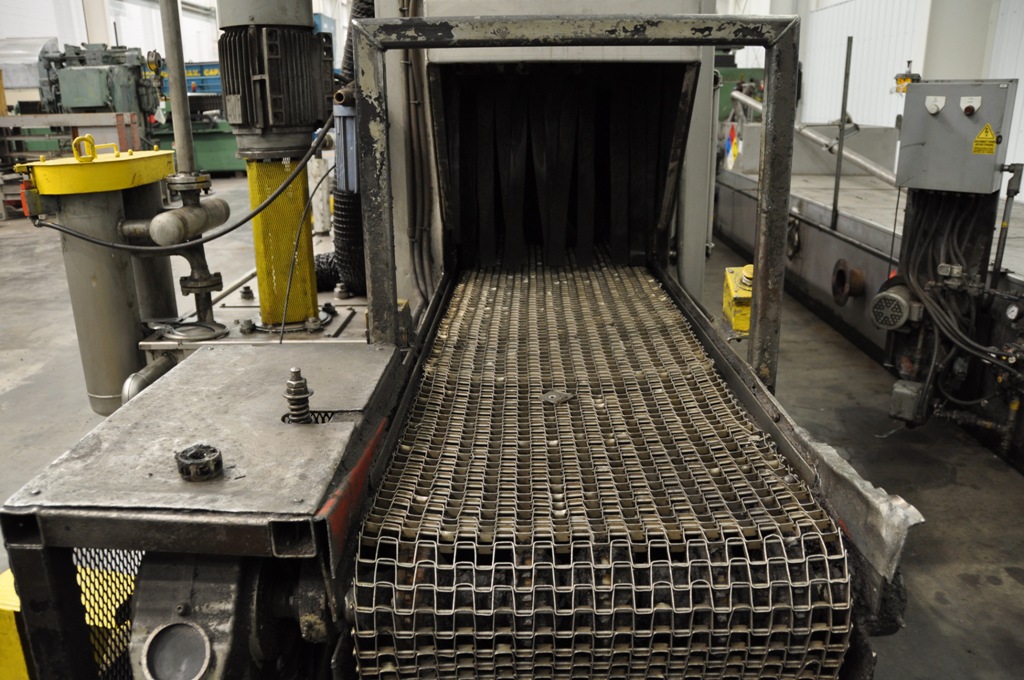

Conveyor Width: 24"
Conveyor Load Capacity: 25 Lb./Ft²
Maximum Part Width: 24"
Maximum Part Height: 24"
Conveyor Speed: Variable, But Range is Unknown at this Time
Heat Source: Natural Gas, 800,000 BTU at 2 PSI
Tank 1 Volume: 1530 Gallons
Tank 2 Volume: 700 Gallons

EQUPPED WITH:
8 of Pre Wash
4 of Wash
Part Blow Off at End of Washer

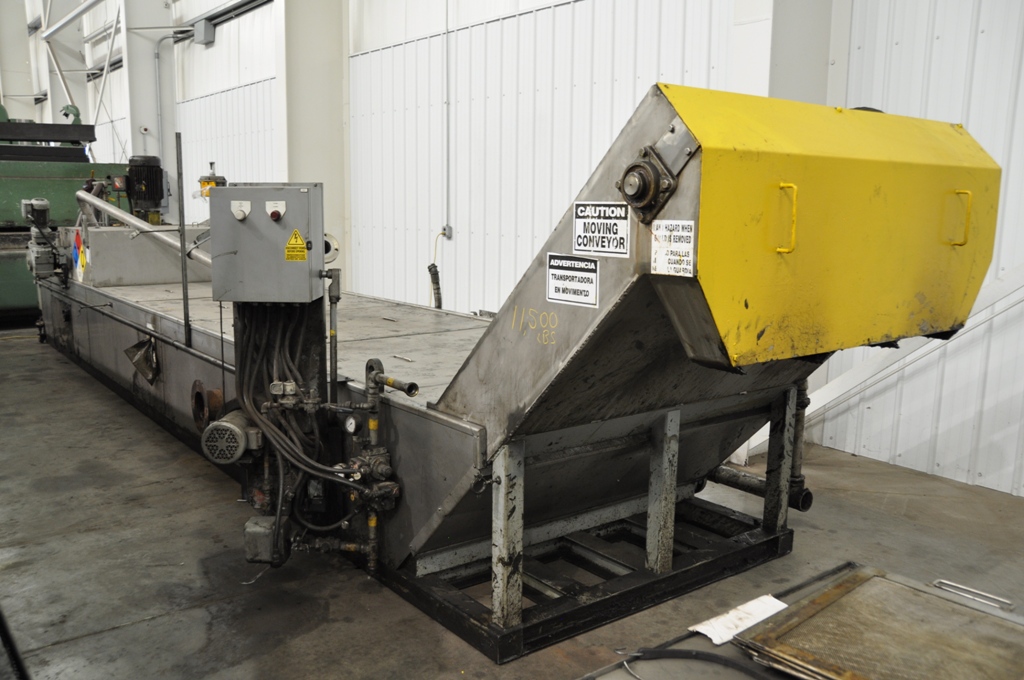

Side Mounted Sludge Conveyor
All Stainless Steel Construction (Welded)

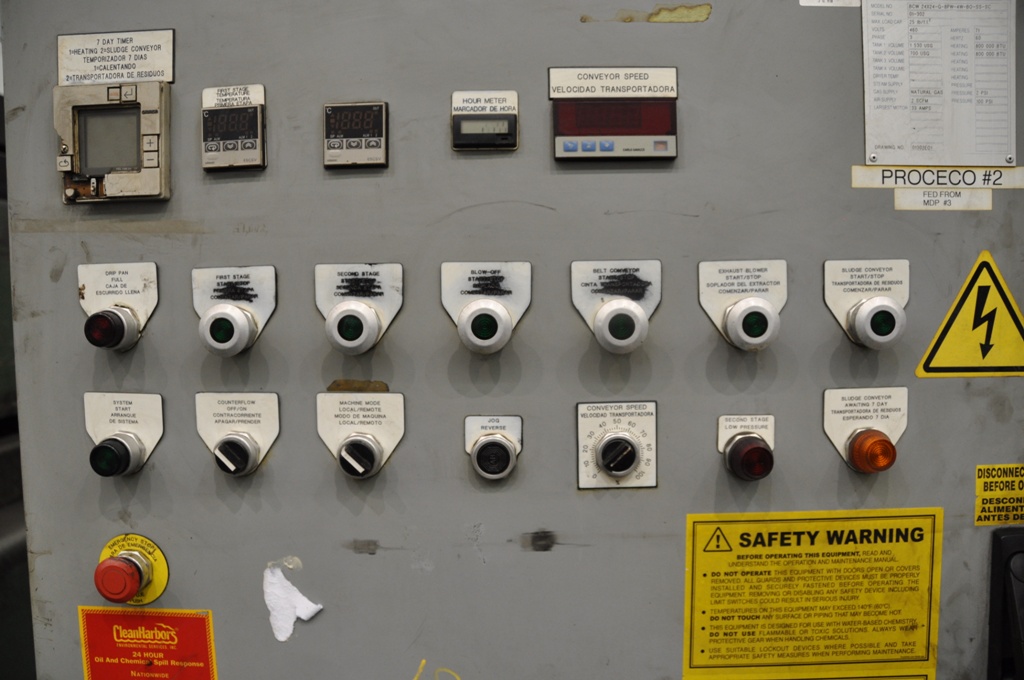

7-Day Timer
Temperature Control for Stage 1 and Stage 2
Conveyor Speed Read-Out
Jog Reverse
Counter Flow
Operator Access Doors

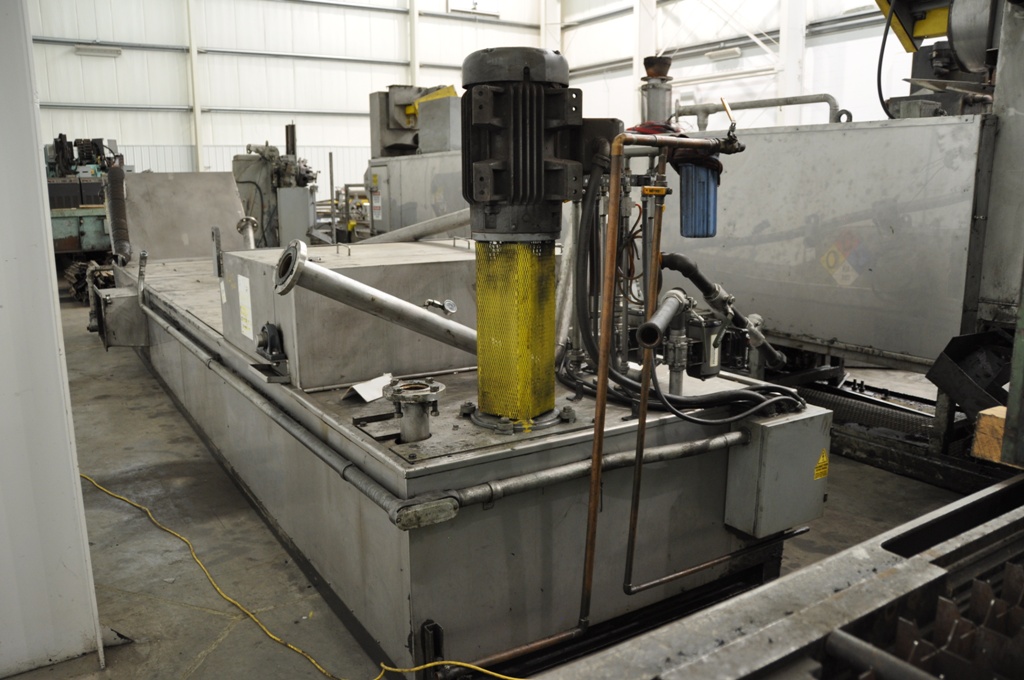

30 HP 1st Stage Pump
15 HP 2nd Stage Pump

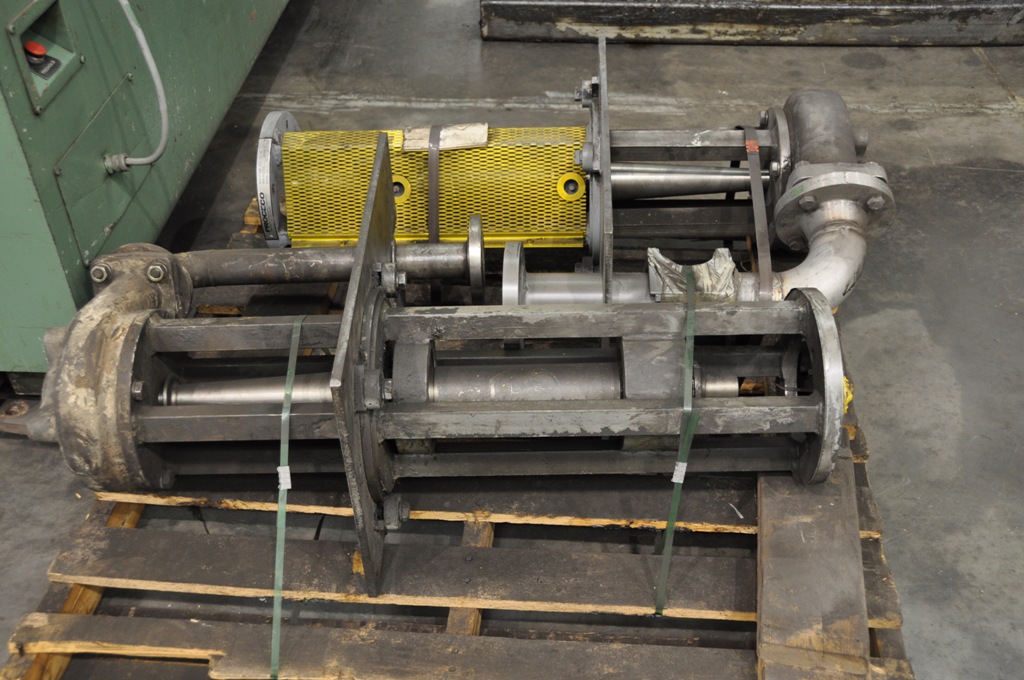

(2) Additional Pump Assemblies (No Motors)
Previous Application: Washing CV Joints for Rebuild
Voltage: Wired for 3 Phase, 60 Cycle, 460 Volts

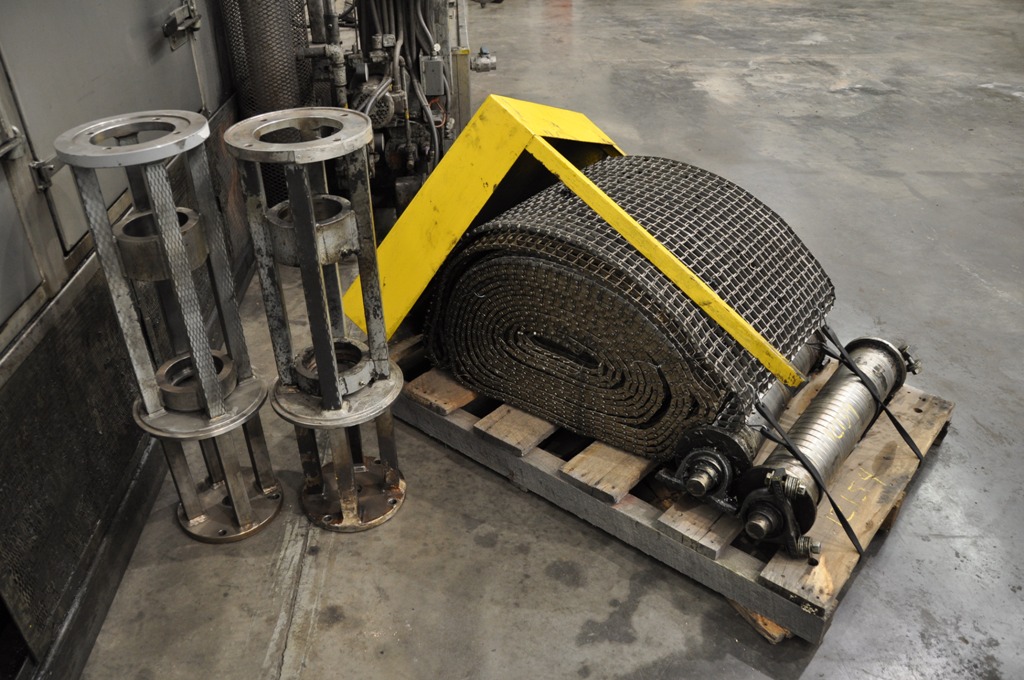

This washer was originally fitted with an extra long loading table approximately 60 long. That table frame is no longer with this washer but the conveyor is along with the end support rolls. The buyer is welcome to fabricate their own loading station using as much or as little of the conveyor that is present.

DIMENSIONS:
Overall Size Washer: 396" L-R x 98" F-B x 110" H x 18,000 Lbs.
Sludge Conveyor: 372" L-R x 100" F-B x 76" H x 11,500 Lbs.
Skid of Pumps: 48" L-R x 48" F-B x 36" H
Skid of Conveyor: 60" L-R x 98" F-B x 36" H
$500.00 to load on flat bed truck. Price to load in sea container on request.
