12610
Specification Description
DATE OF MANUFACTURE 2006
PALLET SIZE 24.8 X 24.8"
NUMBER OF PALLETS 2
PALLET LOAD CAPACITY 2640 LBS
SPINDLE NOSE TO PALLET TOP 6.8 - 36.41"
X AXIS TRAVEL 39.37"
Y AXIS TRAVEL 31.50"
Z AXIS TRAVEL 33.46
RAPID TRAVERSE RATE X /Y/Z AXES 2362 IPM
SPINDLE SPEEDS 15,000 RPM
SPINDLE TAPER CAT 50
SPINDLE MOTOR 50 HP AC
SPINDLE TORQUE 744 FT LB
PALLET INDEXING 1 degree
TOOL CAPACITY 60
MAX. TOOL WEIGHT 59 LBS
APPROX. DIMENSIONS 300 X 141 X 126"
MACHINE WEIGHT 39,751 LBS

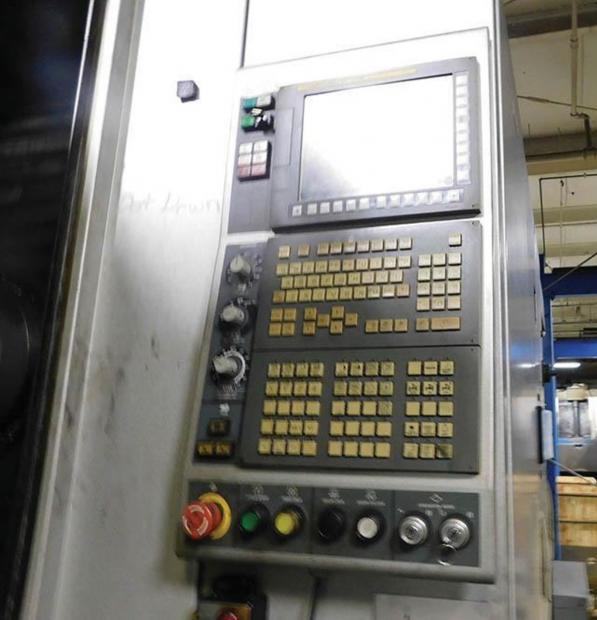

FANUC 31i A CNC CONTROL WITH 10.4" CRT
Pallet index 1 degree
60 POSITION AUTOMATIC TOOL CHANGER
THRU SPINDLE COOLANT
HIGH PRESSURE COOLANT
To view more information on the 24.8 X 24.8 PALLETS TOYODA FH630SX CNC 4-AXIS HORIZONTAL MACHINING CENTER, including reviews, brand information, photos, videos, and more,
