Technical data:
Work area (X x Y): 100" x 50"
Capacity
Maximum sheet thickness: 0.25"
Maximum punching force: 20 tons
Active presser foot: Up to 2.5 tons
Maximum workpiece weight: 330 lbs.
Speeds
X axis: 3543 ipm
Y axis: 2362 ipm
Simultaneous (X and Y): 4252 ipm
C axis: 180 rpm
Maximum stroke rate when punching (E=1 mm): 900 1/min
Maximum stroke rate when marking (approximate): 2,200 1/min
Maximum acceleration
X axis: 472 in/s2
Y axis: 315 in/s2
C axis: 200 1/s2

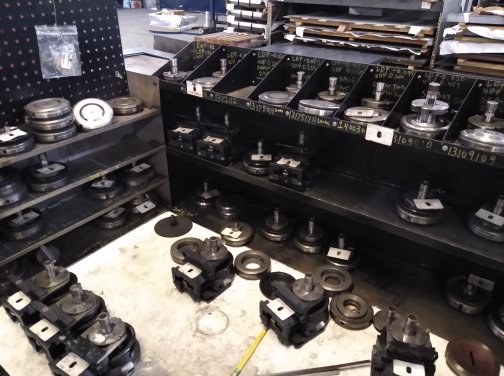

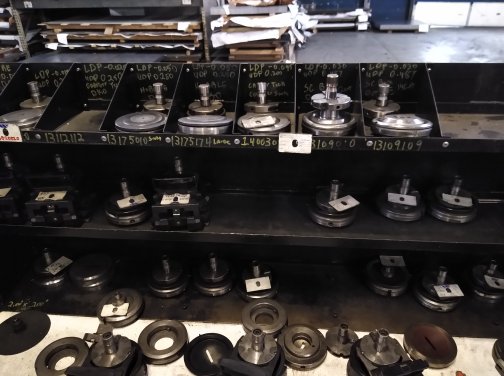

Tools
Linear magazine: 19 tools with 2 clamps
No. when using Multitool: 19-190 tools
Multitool: 5/10 station
Tool change time
Single tool: < 3.5s
MultiTool: < 0.9s
Accuracy
Positioning accuracy Pa: +/- 0.004 in.
Repeatability Ps: +/- 0.001 in.
Programmable parts chute
Maximum part size when using fixed chute: 8 x 8 in.
Space requirements
Including safety: 293 x 254 in.
Average power consumption (approximate): 9 kW
In standby mode (approximate): 0.7 kW

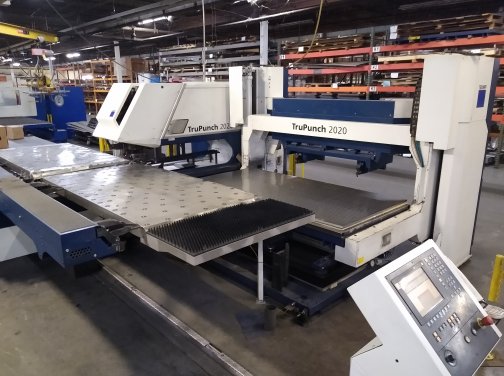

To view more information on the 22 TON TRUMPF TC2020R BOSCH 50" X 100",AUTOMATIC LOAD/UNLOAD, MFG:2010 OUR STOCK NUMBER: 11670, including reviews, brand information, photos, videos, and more,
