Max. Punching Capacity 20 metric ton
Max. Material Thickness 0.250" (6,35 mm)
Punching Accuracy 0.004" (0,1 mm)
Nominal Workpiece Size2 (Y,X) 49.21"x 49.21" (1250 x 1250 mm)
Table Type Capacities
Brush table Up to 160 lbs. (73 kg)

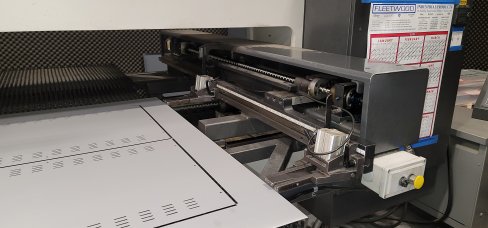

Floating Clamps 2 manual lock
Maximum Clamp Spread 37.4" (950 mm)
Feed Clearance 0.984" (25 mm)

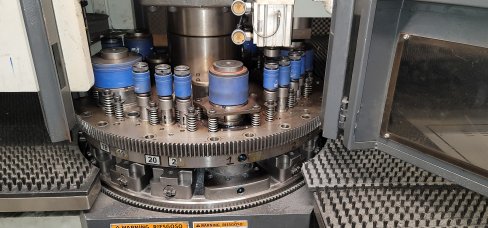

Turret Configuration 21 stations
Angular Positioning Accuracy 0.05 degrees
Axis Traverse Speed Up to 3149 IPM (80 m/min.) combined
Maximum Hit Rate at 2 mm Working Stroke
0.04" (1 mm)Feedrate Up to 650 HPM
1" (25 mm) Feedrate Up to 300 HPM

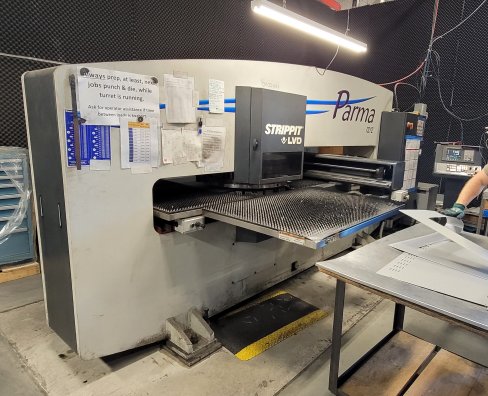

To view more information on the 22 TON, STRIPPIT/LVD, PARMA 1212, 3 A/I, THICK TURRET, MFG:2007 OUR STOCK NUMBER: 12052, including reviews, brand information, photos, videos, and more,
