TECHNICAL DATA:
Capacity................... 22 Ton
Sheet Size................. 50" x 50" (Longer Using Auto Repo.)
Thickest Material.......... 10ga. M.S.
Max. Hole Diameter......... 3-1/2"
Number of Stations......... 31 (With 3 A/I Sta.-(2) 1 1/4", (1)-2")
Max. Ram Stroke............ 1.575"(Adjustable)
X/Y Axis Only Hit Rate (.079" Pitch)(.098" Stroke).... 1,000 HPM
X/Y Hit Rate(.079" Pitch)(.118" Stroke) 720/510 HPM
X/Y Hit Rate-1" Centers(.315" Stroke) 340/280 HPM
Linear Positioning Speed... 2,559 IPM (X), 1,968 IPM (Y)
Max. Forming .............. 1/2" Flange
Standard Control........... Fanuc 18P
Tape Format................ E.I.A. or A.S.C.I.I.
Programming Mode........... Absolute/Incremental/Manual
Smallest Progammable Increment........ .001"
Electrics.................. 220/440 Volts/3/60
Machine Weight............. 21,500 Lbs.

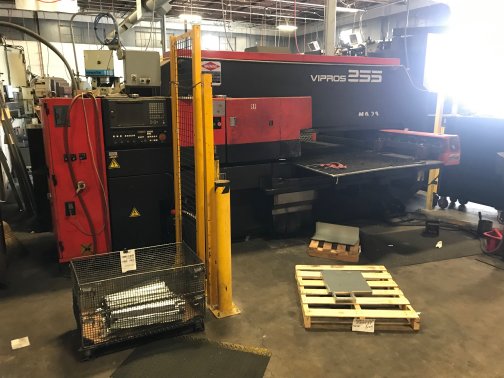

To view more information on the 22 TON AMADA,VIPROS 255,FANUC 18P,31 STA.,3 A/I, MFG:2001 OUR STOCK NUMBER: 11590, including reviews, brand information, photos, videos, and more,
