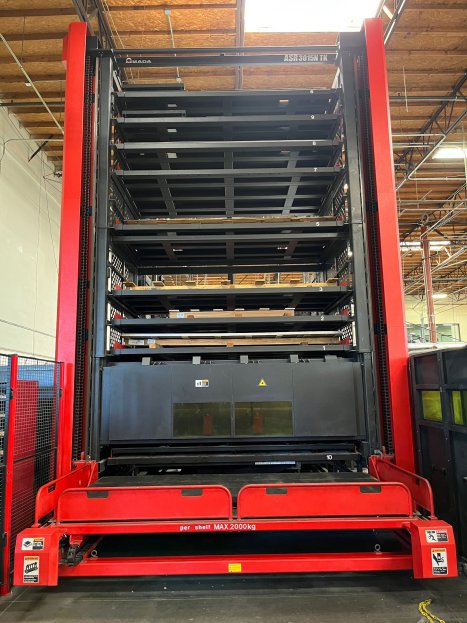

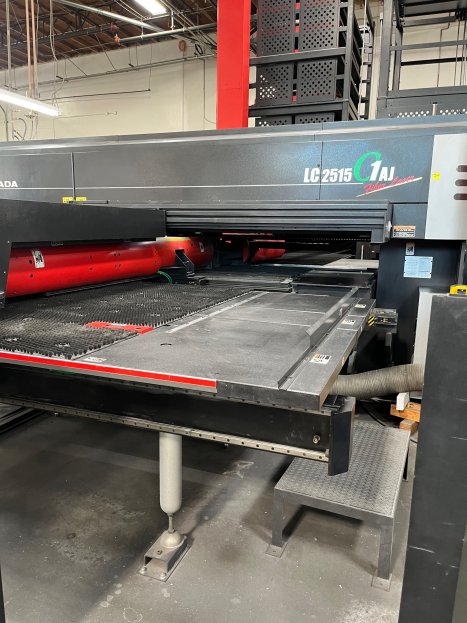

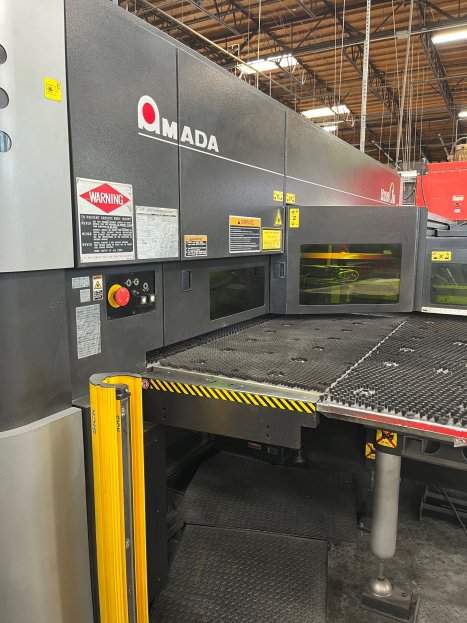

22 TON AMADA LC2515 AJ FIBER LASER TURRET COMBO MACHINE,10 SHELF ASR3015N TK OUR STOCK NUMBER: 12503

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


22 TON AMADA LC2515 AJ FIBER LASER TURRET COMBO MACHINE,10 SHELF ASR3015N TK OUR STOCK NUMBER: 12503
Unknown
Lasers
CNC Punch Laser combo
used
(LB)
0
$0.00

Description

Motion Package Punch:

Sheet moves in the X and Y-axis Laser:
Sheet moves in the X-axis while the laser cutting head moves in the Y-axis
Drive Motors Fanuc AC Servo (X, YP, YL, Z, T, C-axes)
Punch Processing Range 120" x 60" (max. due to table cabin)
Laser / Combination Processing Range 98.4" x 60" (120" x 60" with 1 repositioning cycle)
Traverse Speed: X-Axis 3937"/min.
Traverse Speed: Y, YL, Z-Axes 3149"/min.
Max. Laser Cutting Speed 1200"/min.
Repeatability 0.0002"
Max. Sheet Weight 110 lbs. to 330 lbs. (depending on table speed)
Max. Material Thickness 0.25"
Work Chute Size (X/Y) 15.75" x 60"

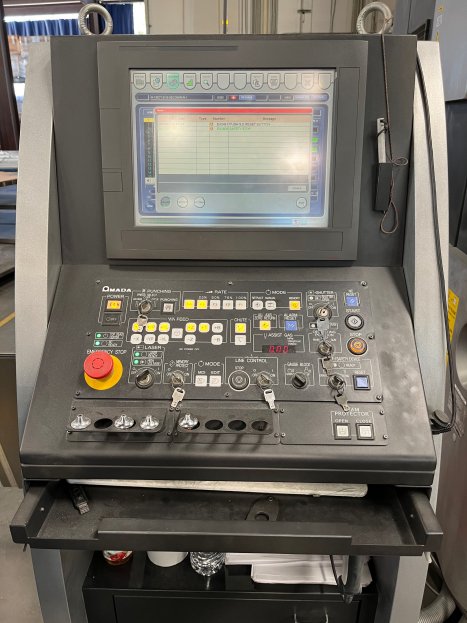

CNC Controller AMNC-F

Punching System:
Tonnage 22 US
Hit Rates X: 370/min. Y: 280/min. (0.197" stroke, 1" pitch)
Tooling Type Amada Thick Turret

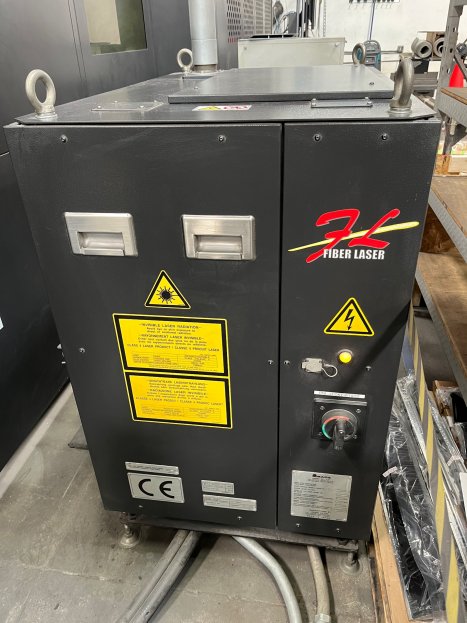

Fiber Laser Resonator:
Max. Continuous Laser Output 2kW
Laser Source Fiber laser Power Stability 2% or less Beam Diameter Approx. 27mm diameter at source
Power Mode Selection CW, gated pulse (CNC controlled) Laser Wavelength 1.08 m
Electrical Requirements 200VAC, 3-Phase, 50/60HZ, 8.8kVA
