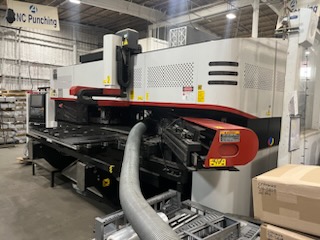

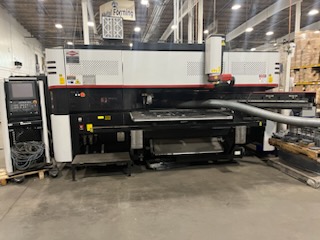

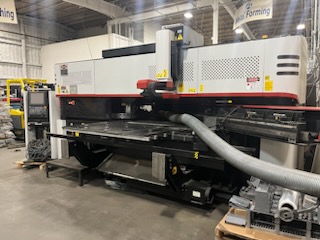

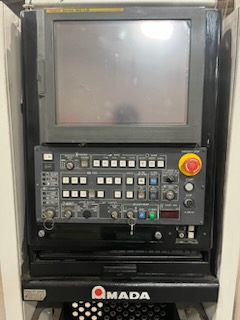

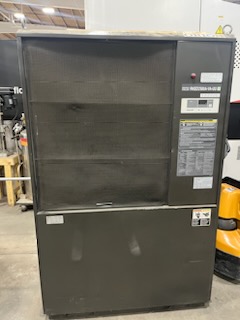

22 TON AMADA LC-C1 NT SERIES PUNCH/LASER COMBINATION MACHINE MFG:2009 OUR STOCK NUMBER: 12447

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


LC-C1 NT SERIES
Punches
CNC Laser Turret Punch Combination
used
31000 (LB)
2009
$0.00

Description

Standard Features:

The laser portion of the C1 features the AMADA/Fanuc AF2000i-B LU2.5 resonator

with 2.5 kilowatts of cutting power. The laser head moves in the Y-axis via a

direct drive servo mechanism for maximum speed and accuracy, and is isolated

from punching vibration to help maintain beam integrity and cut quality. A

cartridge-type lens assures simple and fast lens changes when required. The

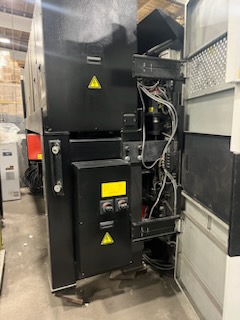

resonator is located on a frame designed to reduce floor space requirements

and to provide isolation from punching vibration.

The punching portion of the C1 is based upon the highly successful AC-series

of 22-ton servo drive turret punch presses. The servo drive not only offers

punching speeds of up to 370 hpm on 1" centers, but is also more efficient

than hydraulic punch drives, requiring no pump or chiller.

To maximize punching productivity in conjunction with laser cutting, the C1

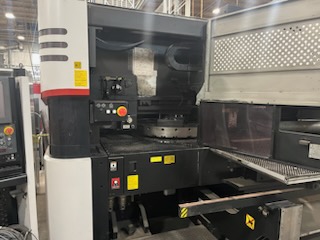

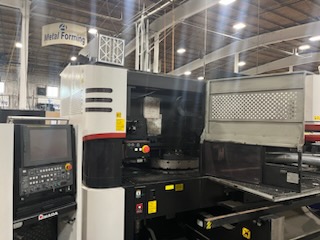

features the new 45-station MPT Multi-Purpose Turret. Two of the unique

features of the MPT turret include four tapping tool stations (English and

metric thread tools available) and three powered die lift stations to

facilitate upward forms while reducing material scratches and preventing

downward forms from hitting the forming dies during sheet movements.

The C1 is equipped with a versatile brush table that provides a number of

features to increase productivity and part quality. The brushes help reduce

material scratching, while limiting punching noise. Pop-up urethane rollers

help reduce brush wear during the laser processing of thick materials. Special

high-temperature brush material is installed in the laser cutting area (Y-

axis), and a large 15-3/4" x 50" work chute helps ensure the easy removal of

finished parts and scrap. A lifting brush table section helps to remove

downward forms from the die before the next sheet moves into place. An

automatic sheet loading feature simply requires the operator (in manually

loaded applications) to place the sheet within approximately 2" of the X-Y

gauge blocks, and activate the automatic loading mechanism. This provides

accurate material placement against the gauge blocks and activates the

pneumatic work clamps. With its full 4 x 8 sheet capacity in up to 1/4"

thick material, the C1 achieves better material utilization ratios, especially

when using AMADAs Dr. ABE Blank software for dynamic nesting.

Specification:

Max. sheet size w/o reposition: 79" x 50"

Amada/Fanuc laser resoxnator model: AF2000i-B LU2.5

Max. sheet weight: 110 lbs. (F1) 330 lbs. (F4)

Max. material thickness: 0.25"

Max. continuous laser output: 2.5kW

Tap applications: Mild steel, stainless steel and aluminum

Punch servo drive: AC servo

Press tonnage: 22 tons

Turret capacity: 45 station (1) AI + (4) tapping stations (MPT turret)

Max. hit rate: X Axis 370 hpm - Y Axis 275 hpm

(on 1" pitch at 0.118" stroke) for punching pattern

900 hpm (at 0.019" pitch and 0.055" stroke) for marking pattern

Work chute size (X/Y): 15.75" x 50"

Max. table feed rate (X/Y): 3,150 ipm x 2,362 ipm

Positioning accuracy during combination process: 0.0027"

Approx. floor space requirement: 226 sq. ft.

Power requirements: 69Kva

Machine weight: 15.5 tons
