Description

The EM2510NT delivers:

* High productivity with slug pull protection
o 500 HPM on 1" center - worlds highest hit rate!
o Vacuum-powered slug pull protection system!
* Up to 50% documented cost reduction over conventional turret presses
* Connectivity with your entire shop through the machines NT-based

controller - instantly access part programs, multi-media help files and

production schedules

EM2510NT Standard Features

* High speed punching - newly designed AC servo direct twin drive improves

hit rate, 500 HPM on 1" centers and 1800 SPM marking system
* 100" X-axis table can process 8 sheets without repositioning, reducing

process time and improving accuracy
* Energy-saving design levels out power consumption, reducing it by up to

60% compared to conventional machines
* Higher positioning speed improves productivity

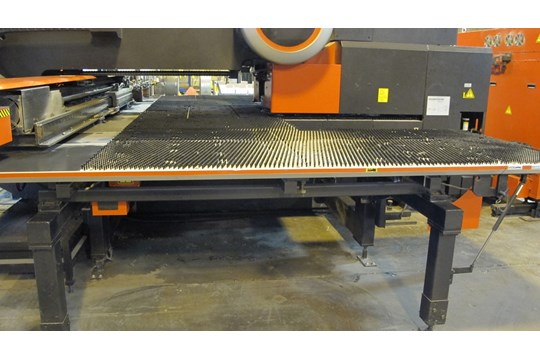

* Brush table design provides scratch-free processing, eliminating

secondary finishing, and also minimizes noise during positioning

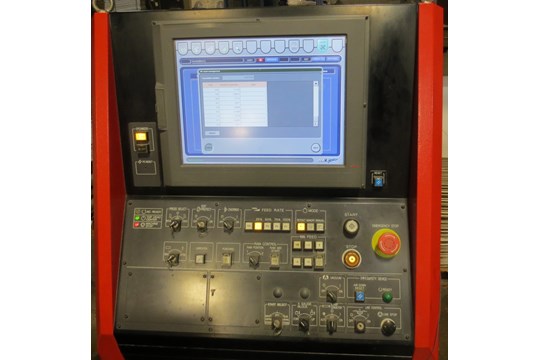

* Free-standing, PC-based network CNC Control allows for flexible layout
* Increased turret feed clearance - .984" accepts higher forming process
* Power vacuum slug pull system (patent pending) virtually eliminates slug

pull concerns


Technical Specifications
HPM 500HPM (0.197" stroke & 1" pitch)
780SPM (0.197" stroke & 0.040" pitch)
1800SPM (0.197" pitch marking)

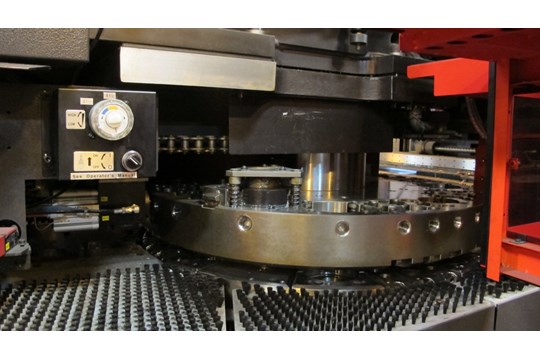

Turret 58 Station 2 A/I
Slide Type Die Holder Standard
Feed Clearance0.984"
Press Capacity20 Metric Tons
AMNC-F (Fanuc) Controller Network support and job input by bar code
Sheet Size (without reposition) 50" x 100"
Axis Speed X-Axis: 3950"/min.
Y-Axis: 3150"/min.
Brush Table Standard

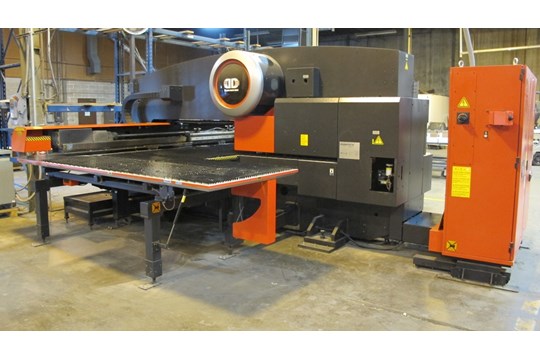

Click on the links below to view this super clean machine under power:

HTTPS://YOUTU.BE/iHgdQiYXs74
