General Punching Tonnage: 22
Punching Capacity: 1/4"
Frame Type: Captured Bridge
Drive Type: AC Servo
Punch/Form/Scribe Drive Type: AC Servo
Maximum Punch Stroke: 1.65"
Maximum Travel W/O Reposition: 50" X 98.4" (50" X 196.8" with 1 reposition)
Maximum Feed Rate: X-Axis 3,150 IPM, Y-Axis 2,362 IPM
Maximum Material Weight: 331LBS
Maximum Hit Rate: 900 HPM (at 0.019" pitch and .055" Stroke for marking)
/ X-Axis 350 HPM, Y Axis 280 HPM (on 1" Pitch @ .118 Stroke)

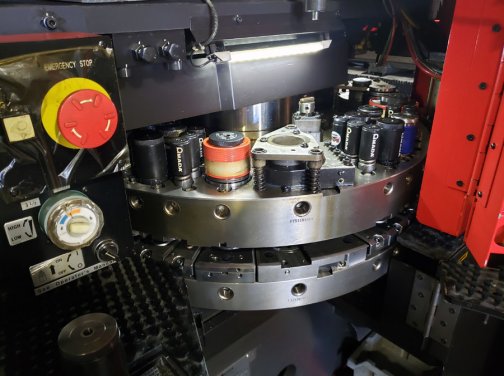

Turret Type: Thick style
Number of Turret Positions: 51
Number of Auto-Index Stations: 4
Turret Rotational Speed: 30 RPM
Auto-Index Rotational Speed: 60 RPM

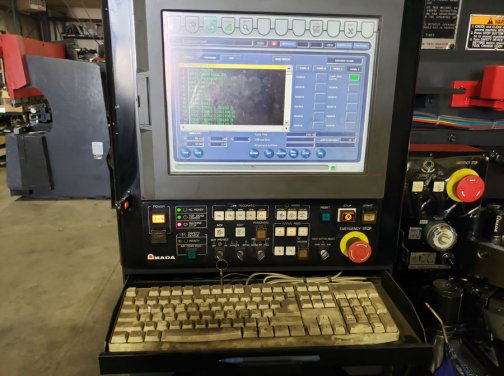

CNC Controller: Amada AMNC/PC

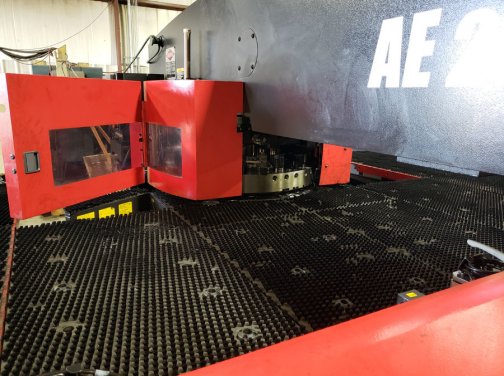

Table Type: Brush
Clamping Type: Pneumatic
System Weight: 28,660 LBS
Installed Dimensions: 201.57" Wide X 163.58 Deep X 80.16" Tall
Please click on link to view video under power:
https://youtu.be/wtSjgkqWBgo
