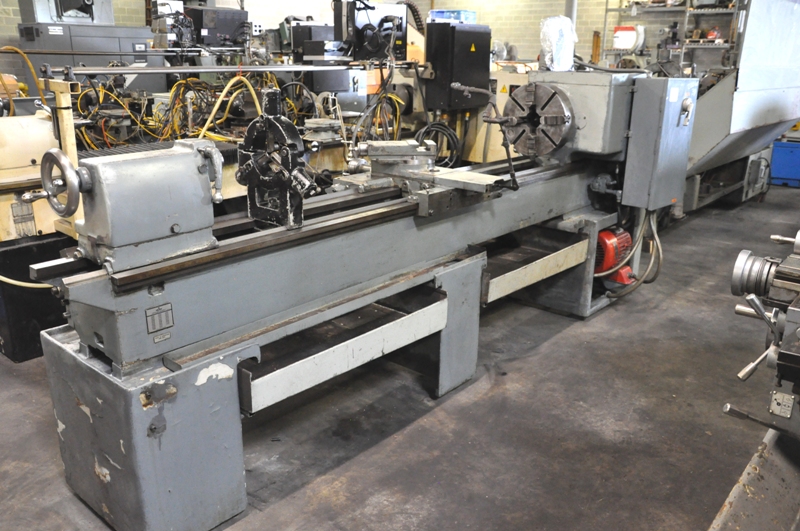

22" X 80" LEBLOND ENGINE LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $14,500.00
Stock # 15024
Machine Serial # 12E-460
Machine Model: Regal Servo Shift
New 1981
Swing Over Ways: 22"
Swing Over Cross Slide: 12"
Distance Between Centers: 80"
(12) Spindle Speeds: 40 to 1600 RPM
Spindle Mount: L-2
Hole Through Spindle: 3.050"
(48) Feeds: .0018 to .104 IPR
(48) Inch Threads: 2 to 112 TPI
(48) Metric Threads: .05 to 2.6
Tailstock Diameter: 4.040"
Quill Travel: 5" (Goes Farther, Only Marked to 5")
Taper in Quill: #4 Morse
EQUIPPED WITH:

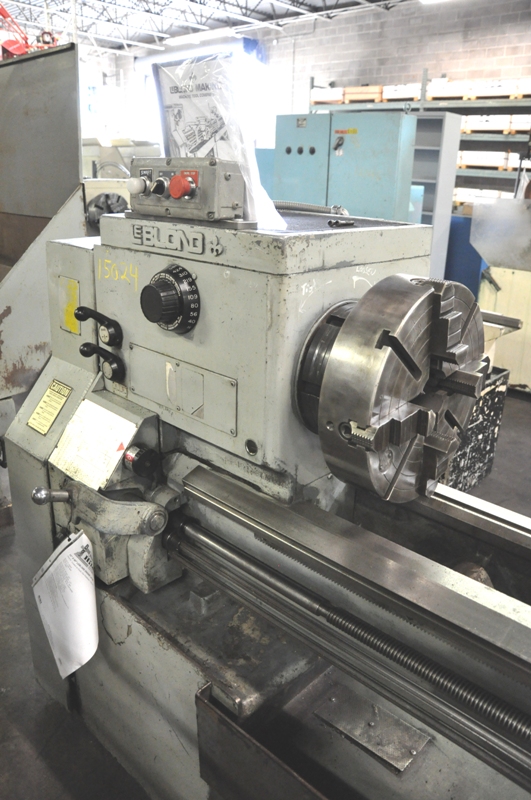

15" Cushman 4-Jaw Chuck

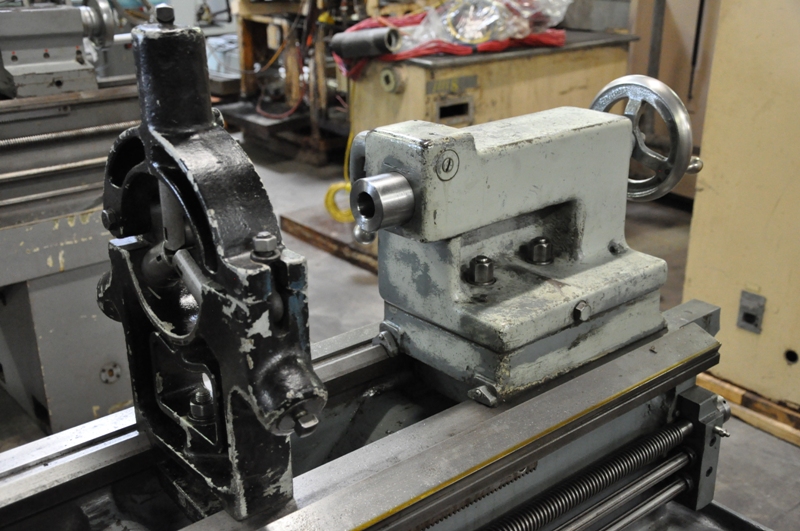

6" Roller Bushing Steady Rest
Inch/Metric Threading
Inch/Metric Cross Slide Dial
Inch/Metric Markings on Tailstock Quill
(2) Removable Chip Pans

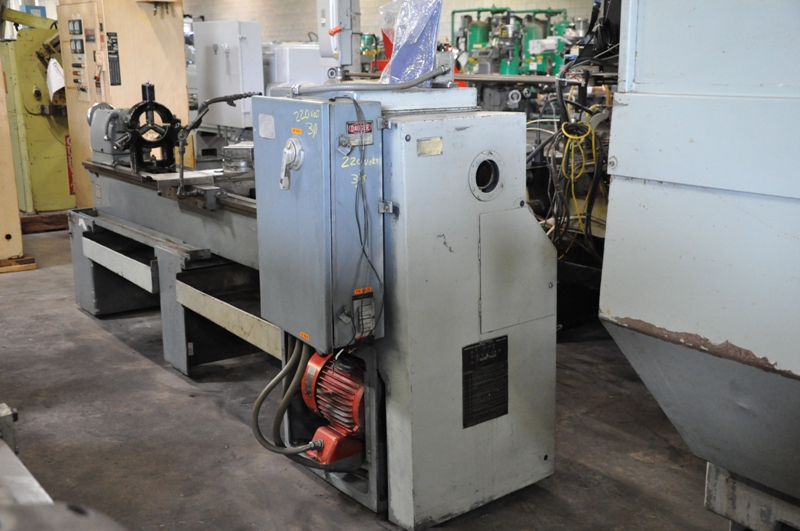

7-1/2 HP Main Motor
Wired for 3 Phase, 60 Cycle, 220 Volts
Overall Size: 144" L-R x 48" F-B x 56" H
