Description

The AC-NT Series enables fabricators to greatly increase punching speeds-and

combined with innovative tooling designs-performs functions that would

normally have to be done as secondary operations. Some of these include: high-

speed contouring, burr-free slotting, high-speed marking, and complex forming

that would normally have to be done by press brake. These expanded functions

are a fulfillment of Amada1s ongoing commitment to develop machine tools that

enhance productivity and reduce secondary operations.

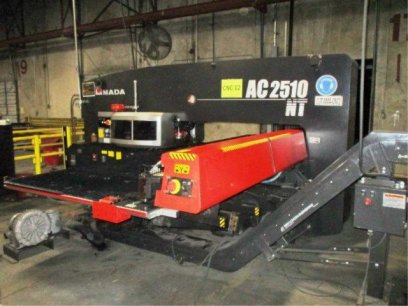

AC2510NT Series Standard Features

The AC-NT series utilizes an AC servo motor to drive the ram (eliminating

the hydraulic power supply and chiller
Electrical consumption is less than one-half of comparable hydraulic

machines
Higher positioning speed improves productivity
Space-saving design takes the cost of valuable floor space
The AC-NT offers significantly faster punching speeds than mechanical

turrets

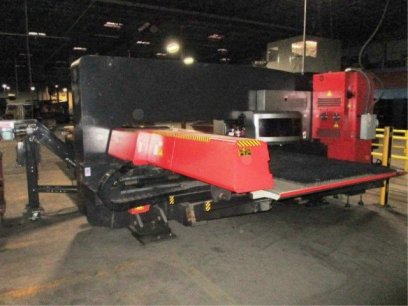

Brush table design provides scratch-free processing, eliminating secondary

finishing, and also minimizes noise during positioning

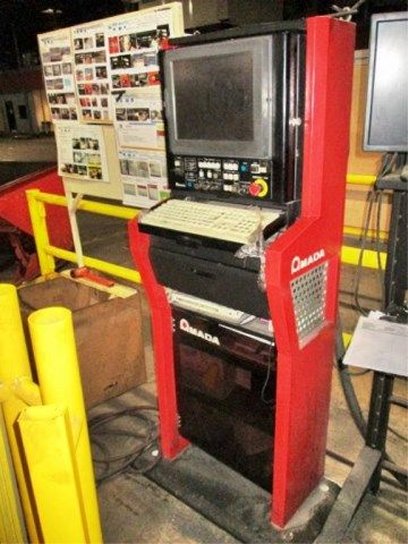

Free-standing, PC-based network CNC Control allows for flexible layout
Connectivity with your entire shop through the machines NT-based

controller, instantly access part programs, multi-media help files and

production schedules

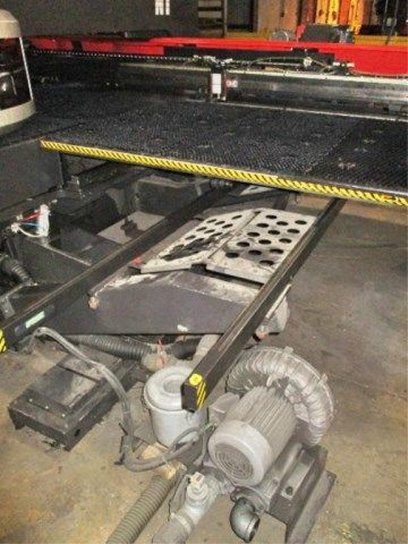

Power vacuum slug pull system (patent pending) virtually eliminates slug

pull concerns

Tonnage 22
Press drive system Single AC servo drive
Stroke length 1.65"
Max. thickness 0.12" (brush table)
AC-2510NT Travel Range 50" x 98.4"
Max. feed rate X : 3,150" - Y: 2,362" Max. mass of material 331 lbs. (F4)
AC-2510NT Max. hit rate X Axis 370 hpm Y Axis 275 hpm (on 1" pitch at 0.118"

stroke) for punching pattern 900 hpm (at 0.019" pitch and 0.055" stroke) for

marking pattern
Punching accuaracy 0.003" and 0.002" (FA mode)
Turret rotation speed 30 rpm
Auto-Index rotation speed 60 rpm
NC control AMNC/PC
Power requirement 19kVA
Max. air consumption 75NI/min
AC-2510NT Machine mass :26,000 lbs.
