Sheet size 60" x 100", 60" x 200" with repo
Brush Table Capacity up to 243 lbs (110 kg)
Capacity 20tons
Maximum material thickness: 1/4" (6,35 mm)
Maximum hit rate: up to 430 HPM on 0.984" (25 mm) centers
Marking stroke: up to 1700 SPM
Axis Traverse Speed up to 3780 IPM

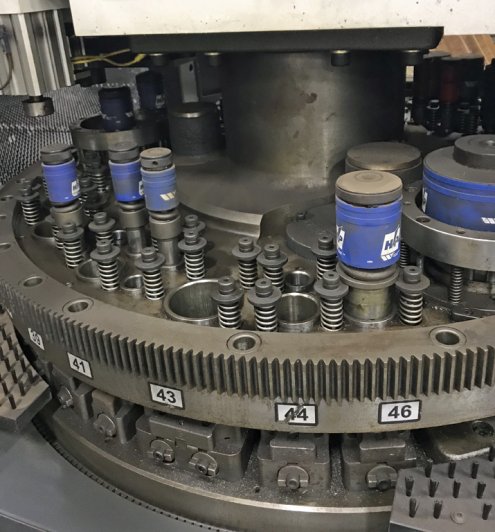

Large capacity 47-station thick turret
24 A = 0.5"
16 B = 1.25"
4 C = 2.00"
3 D = 3.5"
Auto-Index 3 D = 3.5"
Three programmable 3.5" (88,9 mm) auto index stations
Angular Positioning Accuracy 0,05 degrees
Punching Accuracy 0.004 ? (0,1 mm)
Indexable multi-tool capability offers more capacity
Quick-change die holders
Smart Clamp ensures the smallest possible no-punch zones
Smart Stroke automatically optimizes ram stroke
Energy reduction system minimizes power consumption
Fully programmable ram system
0.984" (25 mm) feed clearance for more forming capacity
Fanuc 18i PB Integrated TOUCH-P control is intuitive and simple to use

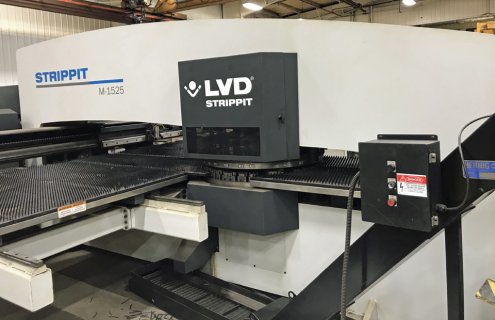

To view more information on the 22 TON LVD STRIPPIT FANUC 18I 60" X 100" 47 STA. 3 A/I THICK MFG:2012 Â OUR STOCK NUMBER: 11184, including reviews, brand information, photos, videos, and more,
