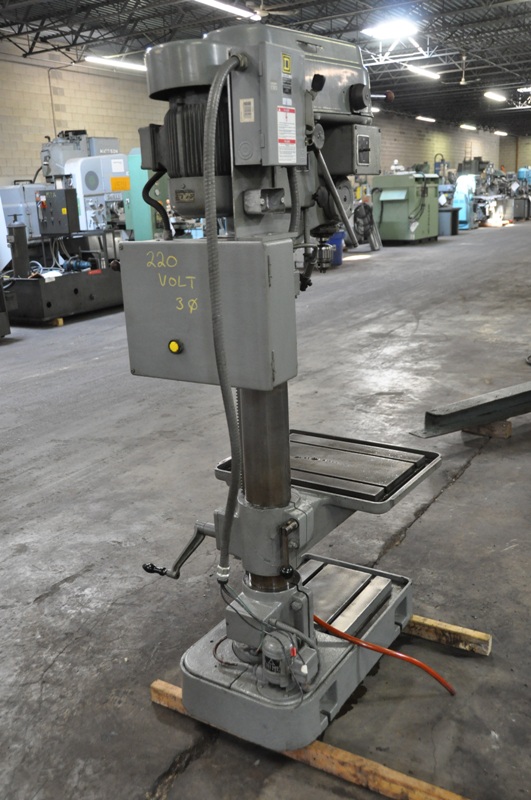

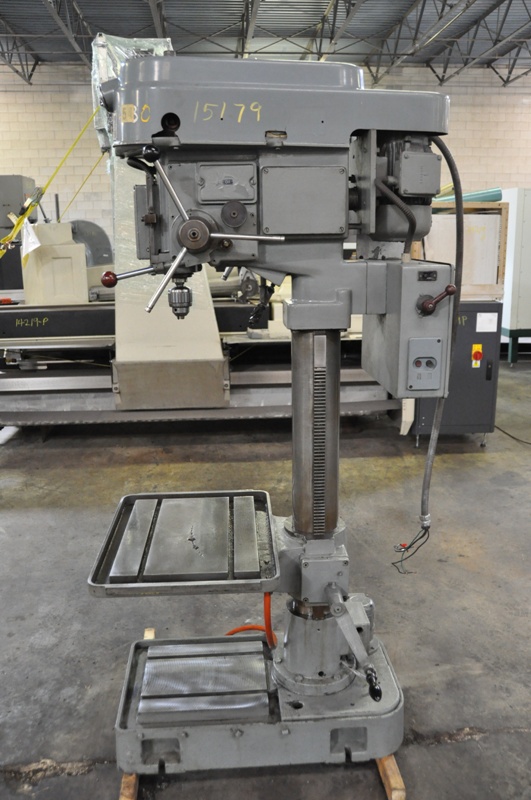

22" ALZMETAL GEARED HEAD DRILL PRESS
PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $2,500.00
Stock # 15179
Serial # 8110
Model: ESV
Type: AB3
New Date: Unknown
Drilling Capacity in Mild Steel: 1.1"
Drilling Capacity in Cast Iron: 1.4"
Spindle Speeds, Variable: 160 to 1420 RPM (Via Variable Speed Pulleys)
Spindle Taper: #3 Morse
Table Size: 18-3/4" F-B x 24-1/2" L-R Overall with Coolant Trough
Table Working Surface: 14-3/4" x 19-7/8" with (2) Tee Slots
Quill Travel: 6.29"
(3) Power Quill Feeds: .004", .007", .011" Per Revolution
Column Diameter: 5.11"
Distance Spindle Nose to Table Top: 28.26"
Distance Spindle Nose to Base: 45.19"
Centerline of Spindle to Round Column Edge: 11-1/4"
Made in Germany
Note: Inch Numbers Converted from Metric Numbers
EQUIPPED WITH:

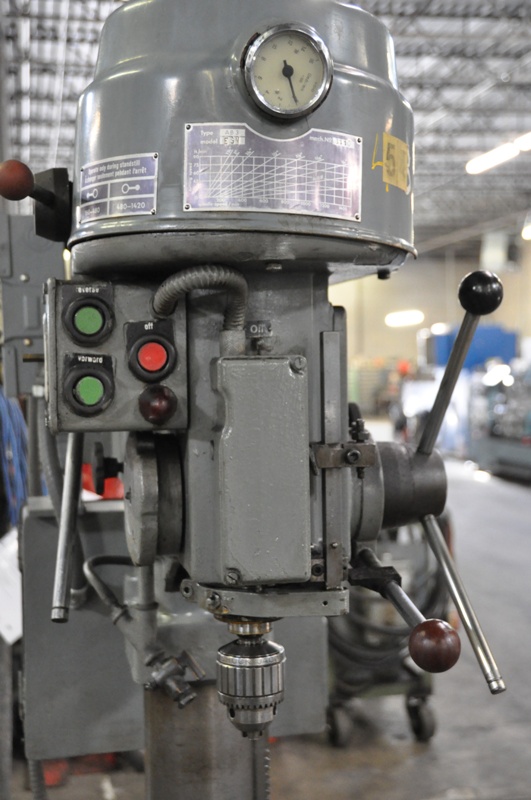

Spindle RPM Indicator
Jacobs Key Type Drill Chuck, 0-1/2" Cap. (No Key)
Coolant Pump Built into Machine Base
Table Elevation Via Gear Rack and Hand Crank
Table Rotate 360 Degrees Around Column
2 HP Spindle Motor, 1720 RPM
Wired for 3 Phase, 60 Hz, 220/440 Volts
Overall Size: 24-1/2" L-R x 35" F-B x 72-1/2" High x 850 Lbs.
