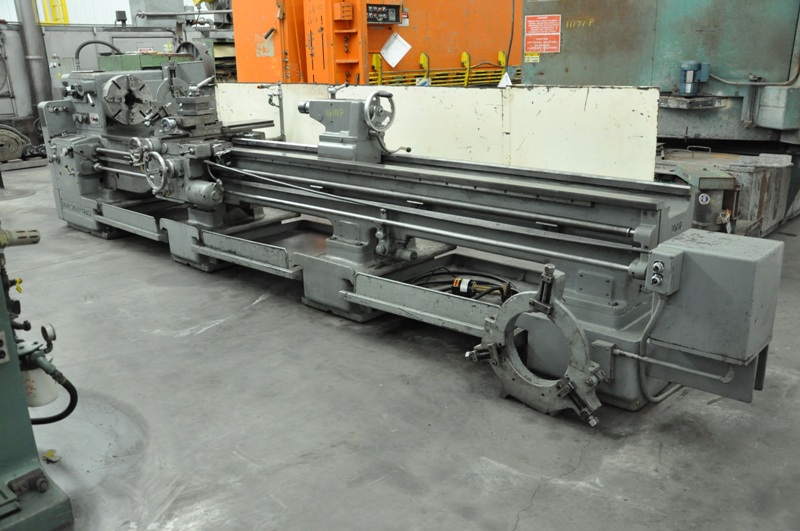

21" X 160" DEAN SMITH GRACE ENGINE LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $12,500.00
Stock No. 16111-P
Machine Serial No. 39568-12-72
Machine Model No. 2112
New Date: 1972
Swing Over Ways: 21-1/2"
Swing Over Cross Slide: 12-5/8"
Distance Between Centers: 160" Maximum
Spindle Bore: 3-1/4"
Spindle Speeds: 8 to 900 RPM with High/Low Range
Spindle Nose Type: D8 Camlock

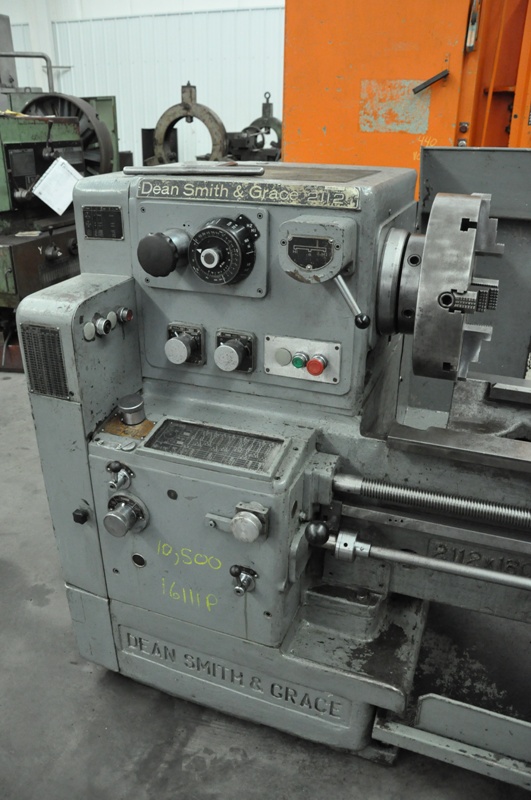

Preselect Servo Shifting Headstock
Inch Feeds: 2.24 to 61 Thousandths Per Revolution
Threads: 2 to 56 TPI and 0.5 to 14 MM

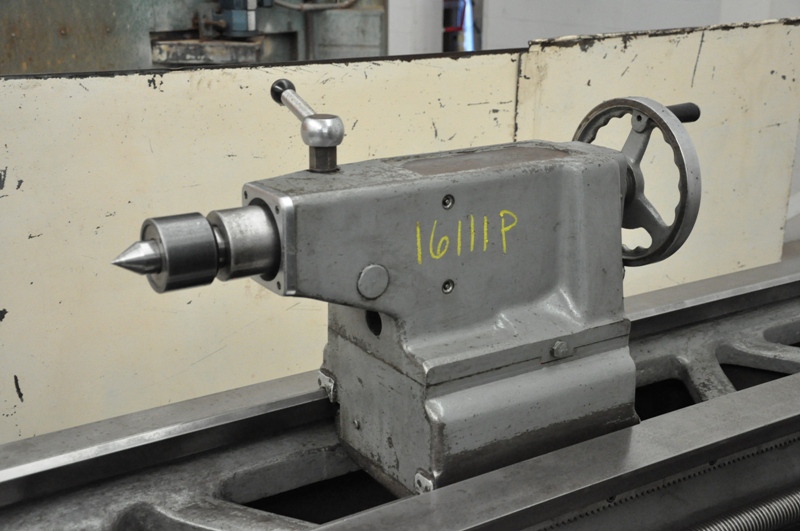

Tailstock Quill: 3" Diameter
Tailstock Taper: #5 Morse Taper
EQUIPPED WITH:

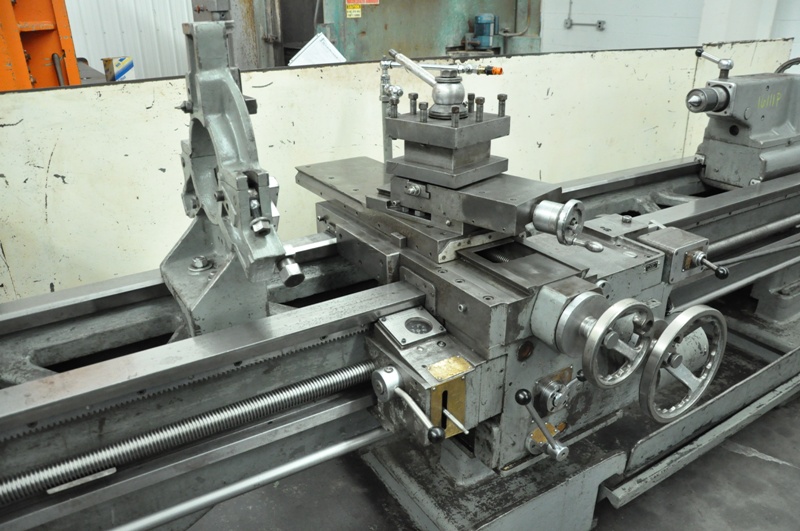

12-1/4" Steady Rest – Support Jaws MISSING
7-1/4" Steady Rest with Roller Type Support Jaws

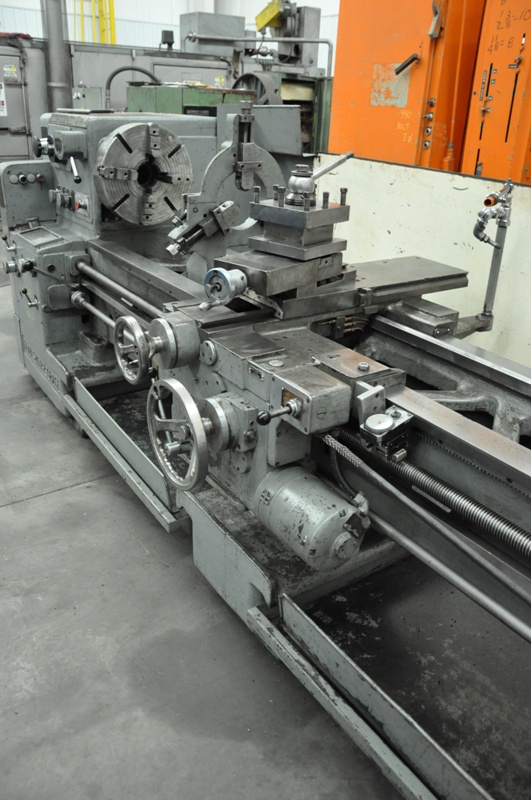

16" 4-Jaw Chuck with 1-Piece Hard Reversible Jaws
(1) Homemade Chuck Wrench
Rapid Traverse to Carriage and Cross Slide
Thread Chasing Dial
Thread Chasing Auto Trip Out Feature
Hardened and Ground Bed Ways in Fair Condition
7-1/2" Square Turret Type Tool Post
(1) Live Center (Needs New Bearings)

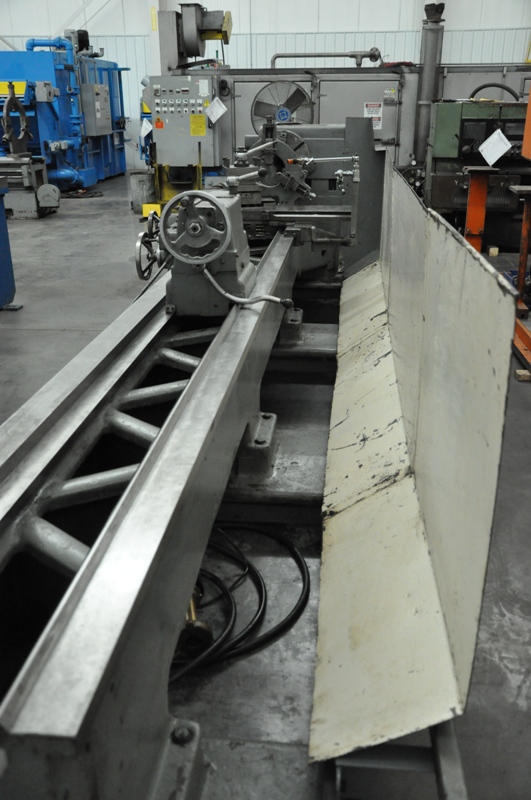

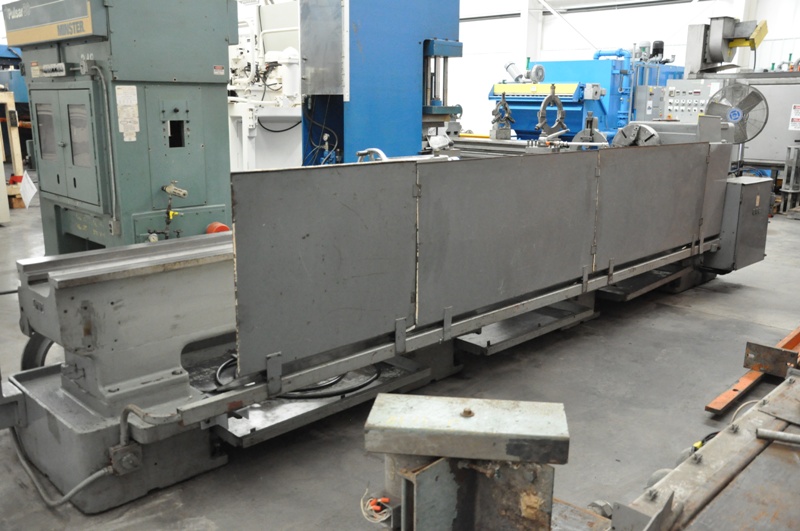

(3) Removable Chip Pans and Rear Splash Guards
(5) End Quadrant Gears Required for Full Set (ONLY Have 3)
Spindle Markings for Multi Lead Thread Start
1/25 HP Coolant Pump, Single Phase, 115 Volt
Auto Lube System to Carriage / Bed Ways and Cross Slide Ways
Approx. 15 HP Main Motor
Wired for 3 Phase, 60 Hz, 440 Volts
Square D Electrical Components
Overall Size: 238" Long x 55" F-B x 56" High x 10,700 Lbs.
