Description
Cr Onsrud Model 169G24C wide pro series CNC Router 10x14 work table 28" Z
The machine is in great shape with very low hours. Videos available at request

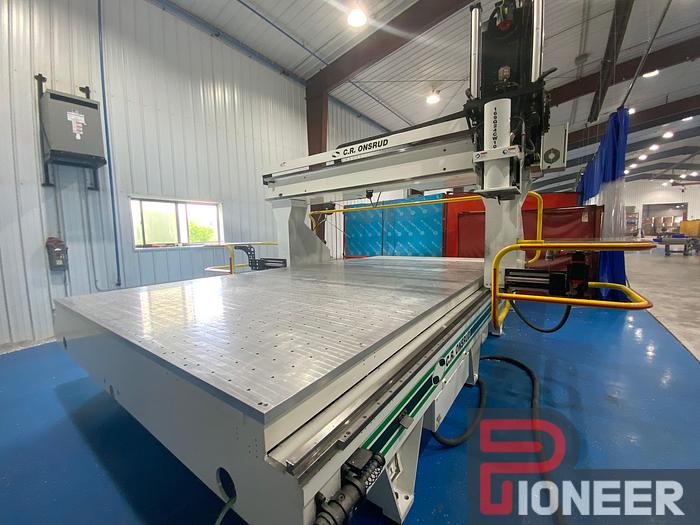

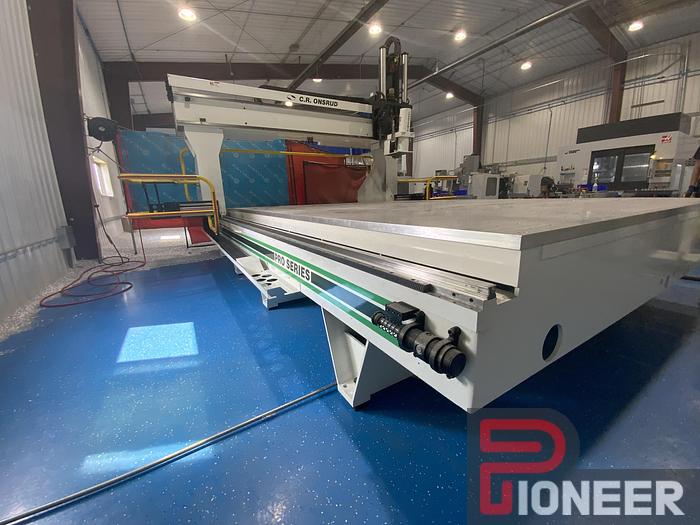

Dual supported gantry driven on both sides with independent servo motors and drives. This dual
channel design enhances accuracy & rigidity. The moving gantry, fixed table, design allows for up to
3,000 ipm programmable feed rates.
The Control system comes standard with full 3D capability (multi-axis interpolation).
Precision linear motion systems on all axes.
Standard with Onsrud Universal High Flow Vacuum Table System suitable for flow-through spoil
boards, dedicated fixtures, or easily upgradable for pod systems.
Aluminum Flat Table - Aluminum Base Tables - ground, cast, tool plate. Base tables can be customized with
a bolt pattern, matrix, T-slot, etc., and would require additional engineering. Custom tables are quoted per
project. (This option replaces standard Vacuum Table)

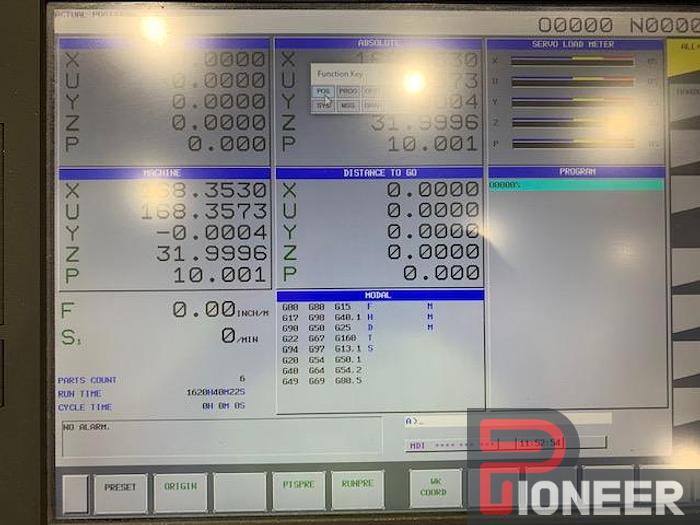

FANUC 0i Machine Controller System with Panel-i HMI - Industrial CNC Machine Controller with Fanuc
Panel-i HMI w/High Res touch screen. Fanuc 0i is not a PC with a control card but is a dedicated Industrial
PLC designed to control CNC motion, for maximum reliability and performance. Includes: Network capability,
adds Large FANUC Digital Drives & Servos. Includes Full remote diagnostic troubleshooting capabilities. Adds
m-code controlled vacuum zones (if equipped with Pneumatic Vacuum Zone option). Provided with 4-port
network hub (requires 460V out isolation transformer). Selecting this Option Replaces the standard controller
system.
Specifications
Manufacturer C.R. Onsrud
Model 169G24C "Wide Pro Series" CNC
Year 2020
Condition Used
Table Size 10x14
Standard Spindle 18kW, 24HP 24,000 RPM Long Nose Spindle w/ HSK-63F
Axis C-Axis Ability for Use With Aggregates
Tool Changer 12 Tool - Dynamic Automatic Rotary Tool Changer
Tool Changer Automatic Aggregate Tool Changer
Lubricator Automatic Oil Mist Lubricator with Separate Air Blast
Additional Features
3 axis - 24HP Spindle Upgrade - 4-Pole, 18kW, 24HP 24,000 RPM Long Nose Spindle w/ HSK-63F
Spindle Taper, fully programmable & reversible, variable speed, liquid cooled, quick-change spindle, capable
of routing & drilling, programmable feed rates w/override capability.
28-inches of Z stroke - Z-stroke of the ram is 28in. With standard 3-axis head, Clearance from spindle gauge
line to table is 31in. With standard 5-axis head height of 23in, Clearance from spindle gauge line to table is
28in.
