2019 STAR SB-20R TYPE G CNC SCREW MACHINE

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


SB-20R
Lathes and Turning Centers CNC
Swiss Type CNC lathe
new
(LB)
2019
$0.00

Description

Description:

This lightly used screw machine is in great shape and can be seen under power.

7727 Cutting Hours

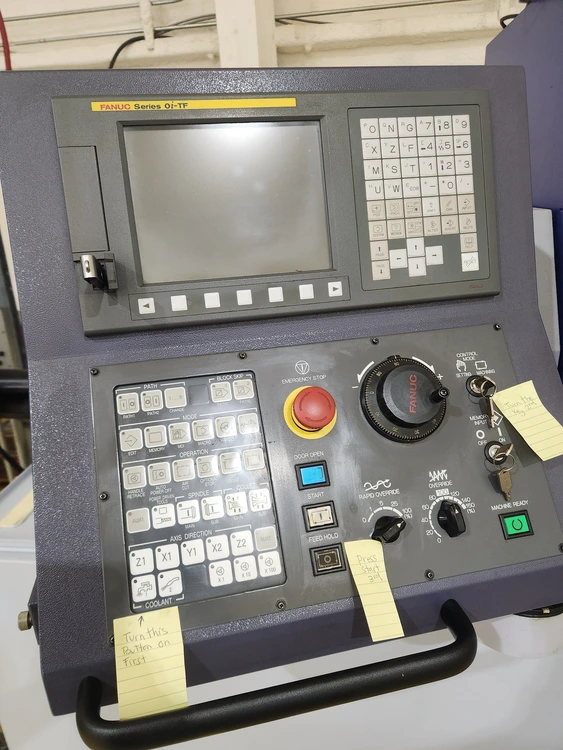

CNC Control Fanuc Oi-TF

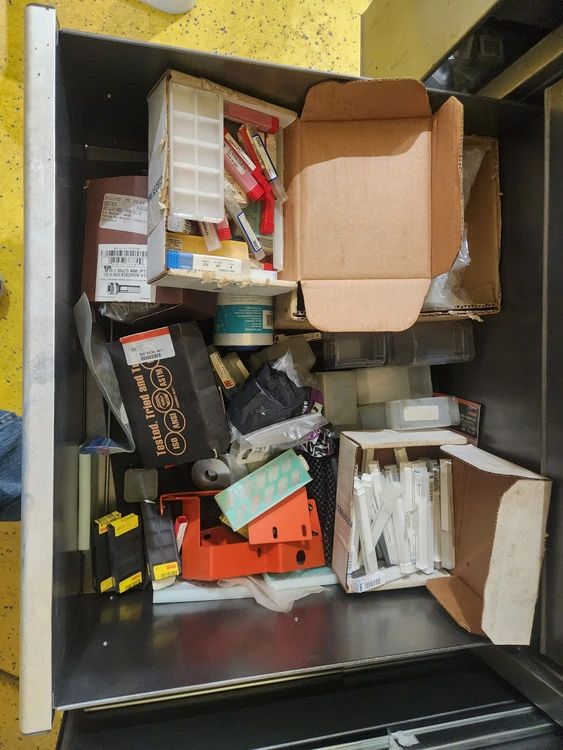

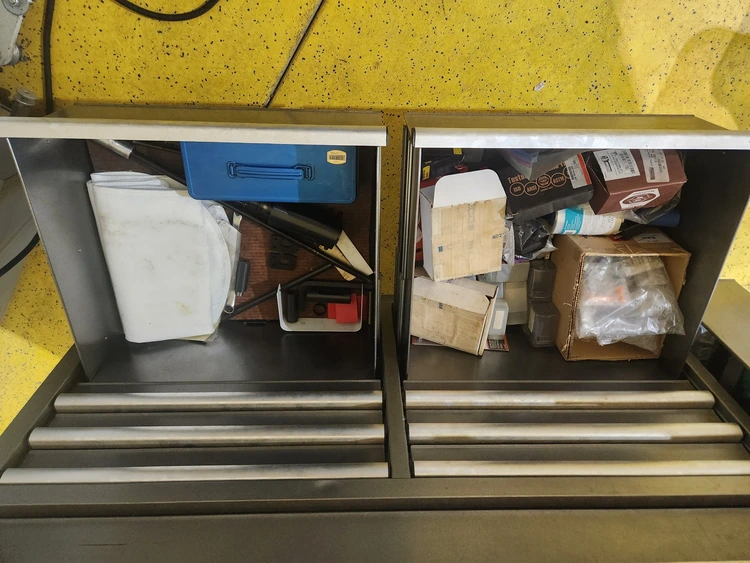

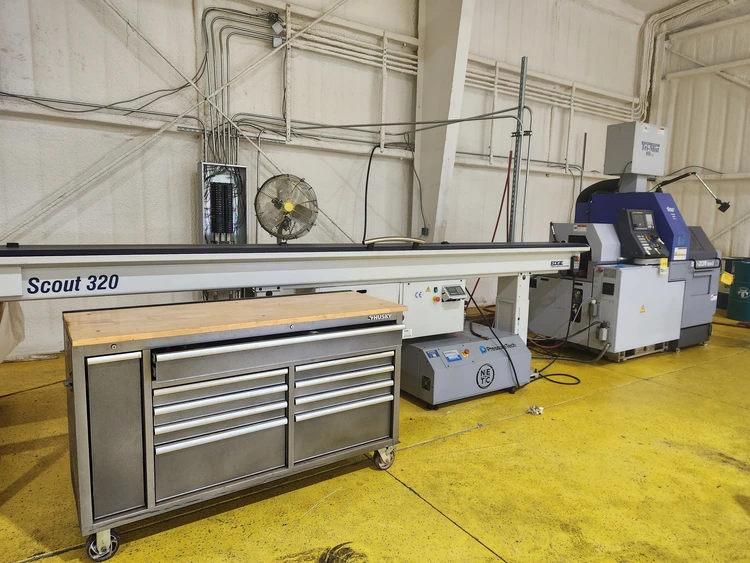

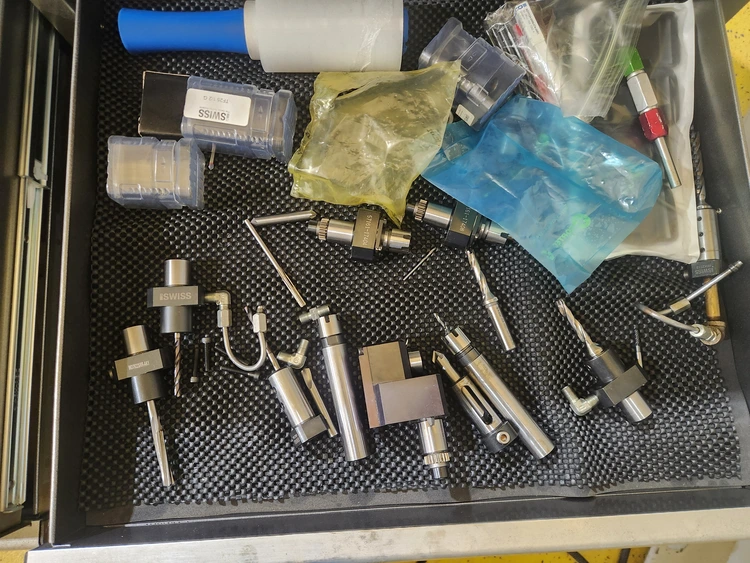

Comes with tooling, barfeed, mist collector.

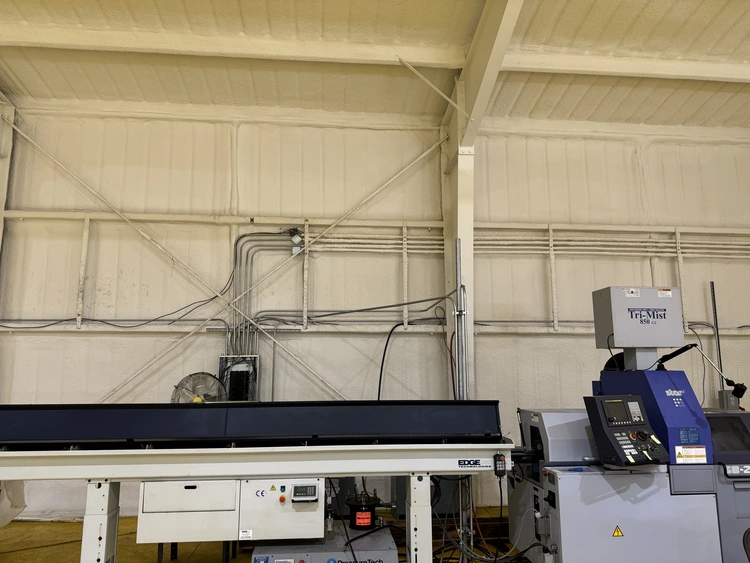

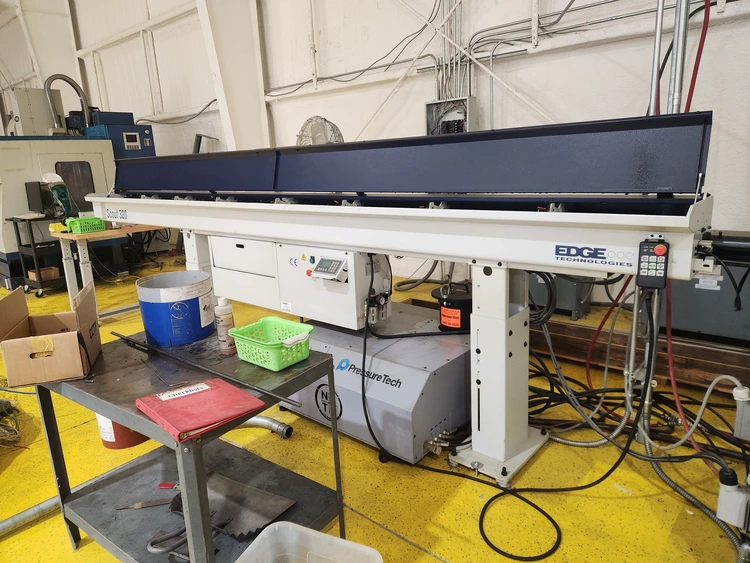

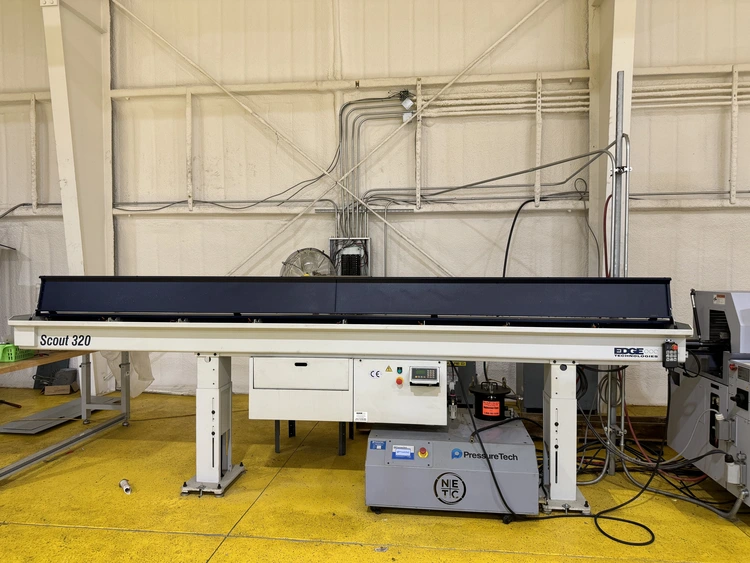

2019 Edge Technologies SCOUT320 Barfeed Serial # SC201911231

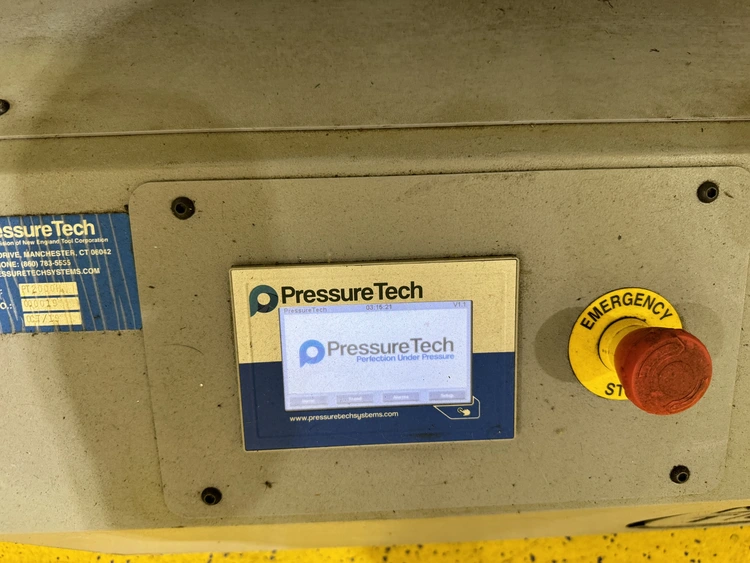

2019 Pressure Tech PT2000H High Pressure Pump Ser#000019 2000PSI

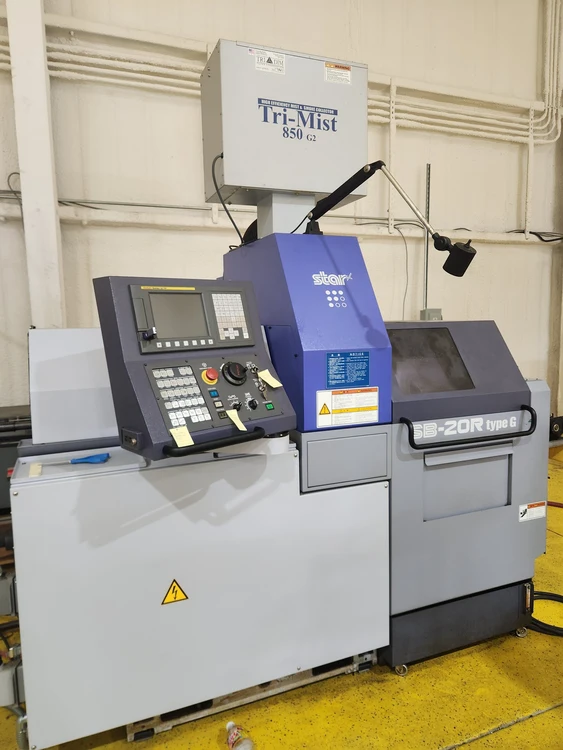

2019 Tri-Mist 850 G@ Mist and Smoke Collector

Located in Tremonton, Utah.

We care about the machines we sell and want all of them to enjoy continued productive and profitable service for our remarkable customers.

Included specifications are gathered from various sources such as firsthand inspection, owner or operator interviews, manuals, and OEM research. All machinery specifications, condition and details are represented accurately to the best of our knowledge.

Confirmation by purchasing entity is recommended and encouraged prior to purchase. Price, location, and specifications are subject to change.

Overview:

Type: Swiss Type Automatic Screw Machines

Manufacturer: STAR

Model: SB-20R TYPE G

Year: 2019

Stock #: LKF

Status: For Sale

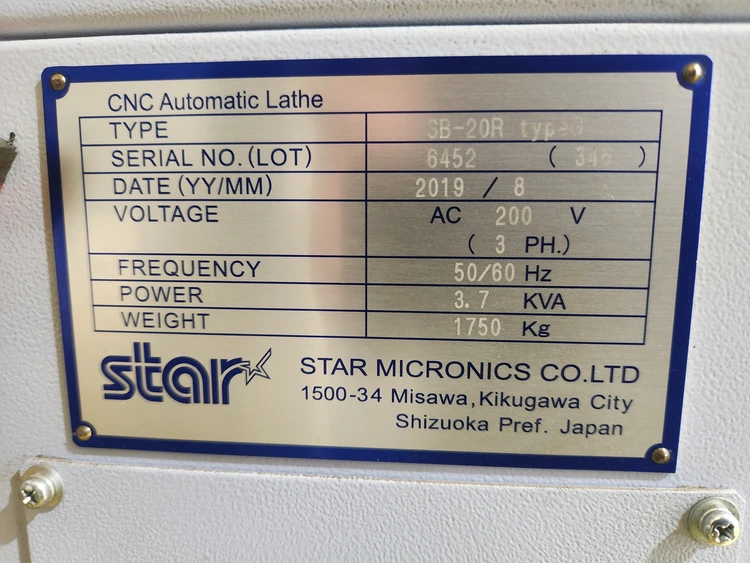

Serial #: 6452

Specifications:

Spindle Hole Dia 0.7874"

Power 5 hp

RPM 10,000 RPM

# Axis 7

MAIN SPINDLE SIDE

Number of Axes: 7

Main Spindle (Headstock): Z1/C1 Axis

Main Spindle Platen: X1/Y1 Axis

Max. Machining Diameter: 20 MM/22.2 MM (Option)

Headstock Stroke (Swiss Type/NGB Mode): 205 MM/50 MM

Main Spindle Power: 3.7 KW

Main Spindle Speed: 10,000 RPM

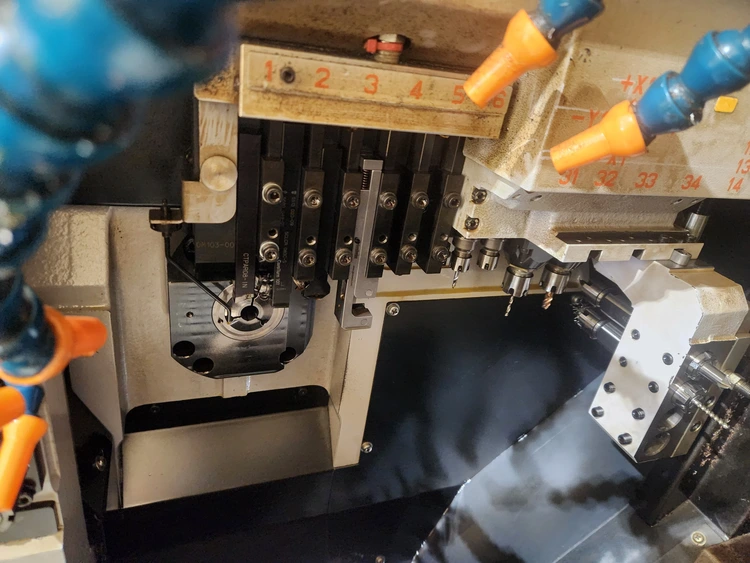

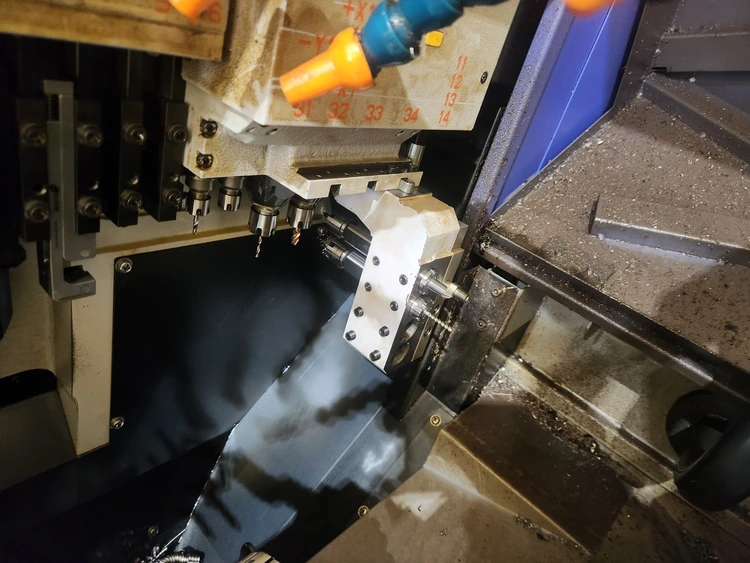

MAIN SPINDLE TOOLING

Turning Tool: 6 Tools @ 12 MM SQ

Drilling Arm Sleeve Holder Capacity: 4 X  22 MM Sleeves (ER16)

Power Driven Tool (PDT) Positions: 2+3 Modular Stations

Max (PDT) Speed: 10,000 RPM (ER11)/6,000 RPM (ER16)

SUB SPINDLE SIDE:

Sub Spindle: X2/Z2/C2 Axis

Max. Chucking Diameter: 20 MM/22.2 MM (Option)

Sub Spindle Power: 1.1 KW

Sub Spindle Speed: 9,000 RPM

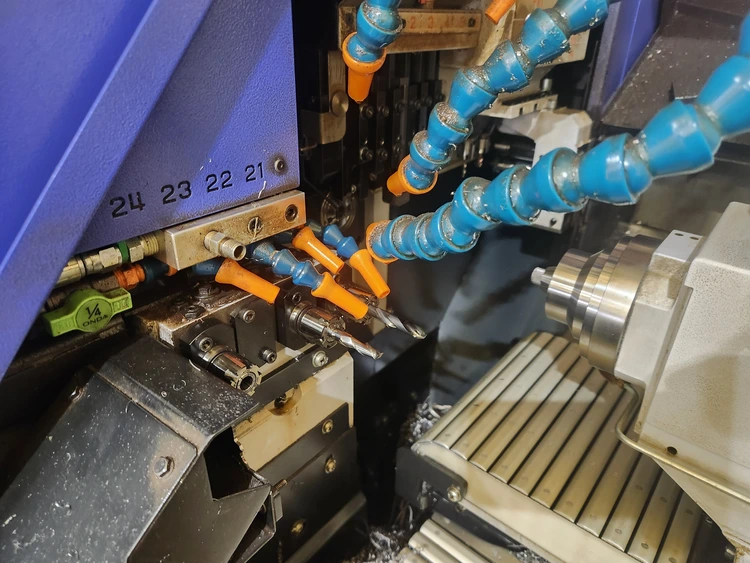

SUB SPINDLE TOOLING

Back-Working Platen Positions: 4

Max Drill Sleeve Capacity: ER16

Power Driven Tool (PDT) Positions: 4 (ER16)

Max (PDT) Speed: 8,000 RPM

MAIN MACHINE:

WIDTH x LENGTH x HEIGHT  8 ft x5 ft x8 ft 6 in

WEIGHT:  4500

ACCESSORY: Barfeed  15 ft 6 in x3 ft x5 ft

WEIGHT: 1000

ACCESSORY:

HP pump and tank  4 ft x4 ft x2 ft 6 in

WEIGHT: 500

Coolant tank 5 ft x3 ft x 2 ft 6 in

WEIGHT: 200

ACCESSORY: Tooling crate

2x2x1 (need to get crate)

WEIGHT:

100
