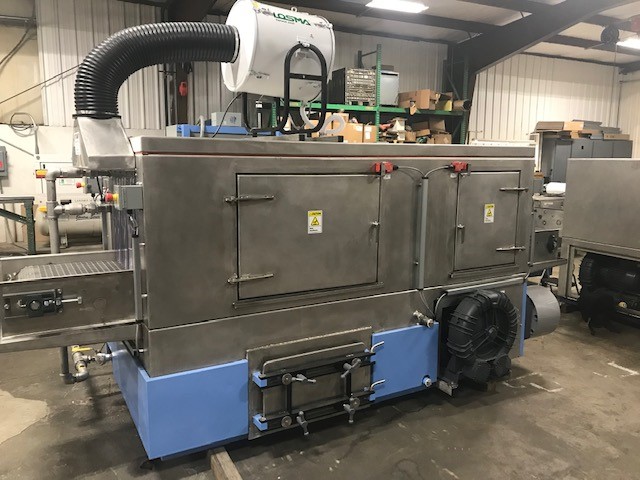

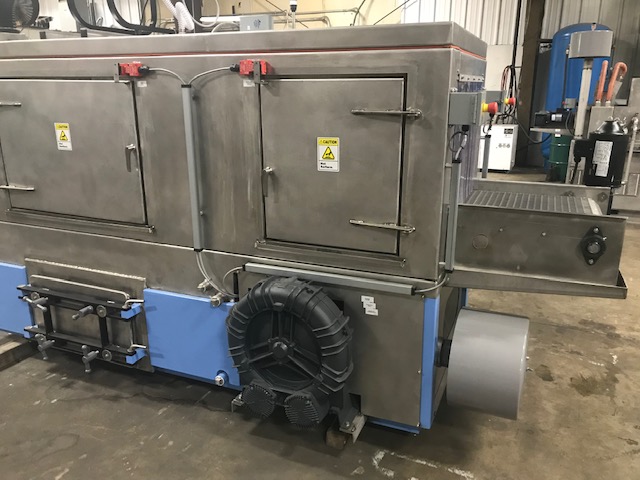

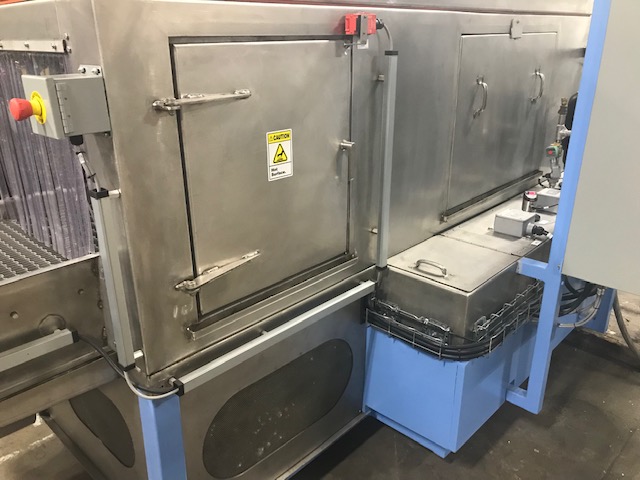

2019 STAR 24 INCH BELT WASHER, # 7537

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


24 Inch Belt Washer
Parts Cleaning
Conveyor Washers
used
(LB)
2019
$0.00

Description

Reference #:7537

Machine Type:Washing Equipment
Year:2019
Manufacturer:Star
Model:24 Inch Belt Washer
Control:
Condition:Rebuilt
Under Power:Yes
Code:W0504

Specifications:

  • Load area length: 24"
  • Wash Area: 6 Ft
  • Blow-off area: 3 Ft
  • Unload area length: 24"
  • Tank width: 54"
  • Belt width: 37"
  • Part Clearance: 18" - 19"
  • Total conveyor length: 13 Ft
  • Electrics: 480 V / 3 P / 60 Hz
  • Main Breaker: 175 Amps

Comments:

  • The existing stainless-steel tank was used
  • New upper walls with large hinged access doors with Allen-Bradley safety
  • switches
  • Mild steel painted insulation skins
  • Thoroughly cleaned inside and out
  • Brand new stainless-steel roller bed conveyor
  • New 1/2hp Marathon Black Max drive motor
  • New Grove 100:1 gear box
  • New 1/2” x 1” stainless-steel flat wire conveyor belt
  • New stainless-steel sprockets
  • New stainless-steel keyed shaft
  • New bearings
  • New 20hp regenerative blower
  • New 30Kw inline blow-off heater
  • New 5.1hp Brinkmann pumps
  • Two new 28Kw heating elements
  • New stainless-steel Rosedale canister filter
  • All new stainless-steel plumbing
  • New stainless water make-ups with new ASCO valves
  • New Keyence FL series level sensors
  • New Losma Darwin 3000 mist collector
  • Brand new Saginaw enclosure

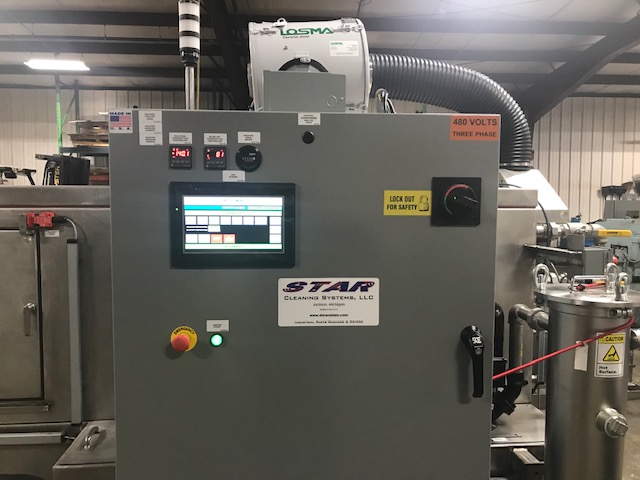

  • New Allen-Bradley MicroLogix 1400 PLC and Automation Direct 10” color touch
  • screen HMI
  • Comes with copies of the PLC and HMI program and new electrical prints
  • Can be tested under power
  • Belt is supported by 2" rollers spaced every 6" along the length of the belt,
