2019 SCHIENKE 5-AXIS DOUBLE COLUMN CNC BRIDGE MILL

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images

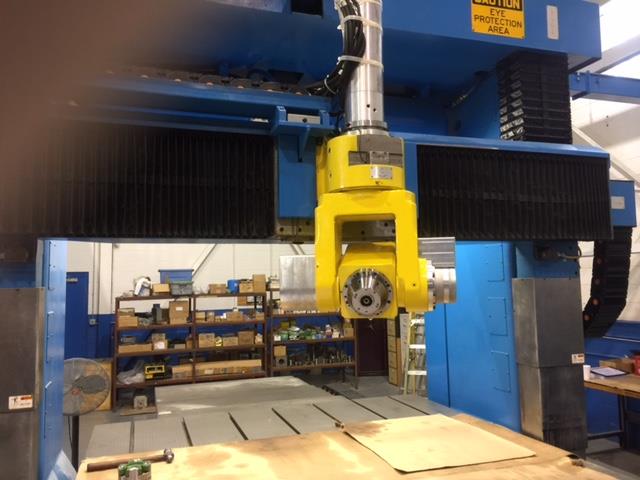

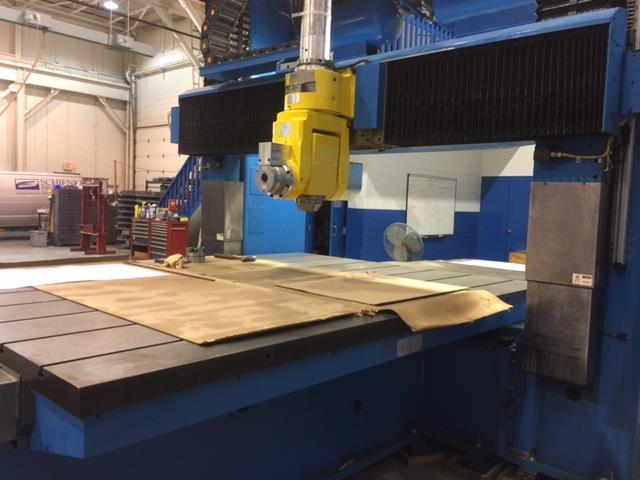

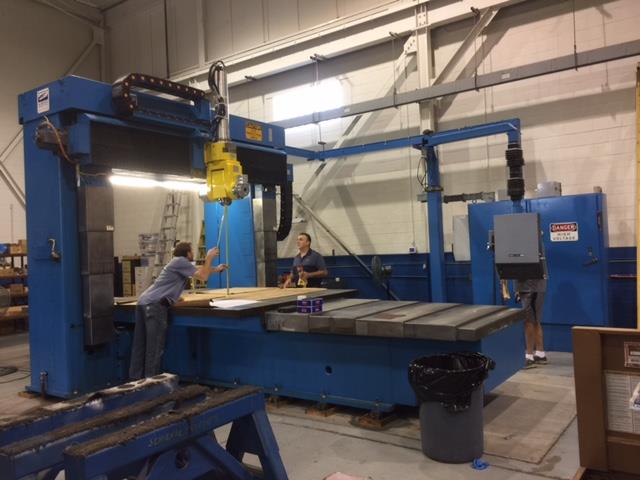

5-Axis Double Column CNC Bridge Mill
M0120
Milling Machines
MILLERS, SKIN GANTRY TYPE
used
(KG)
2019
$0.00

Description

Specifications:

  • Table Size: 90\" x 120\"
  • X-Axis: 120\"
  • Y-Axis: 92:
  • Z-Axis: 47\"
  • Distance Between Columns: 101\"
  • Spindle Speeds: 15,000 RPM
  • Feed Rate: 467 IPM
  • Spindle Drive: 26 HP
  • Spindle Taper: HSK 63
  • Table Load Capacity: 50,000 Lbs

Equipped With:

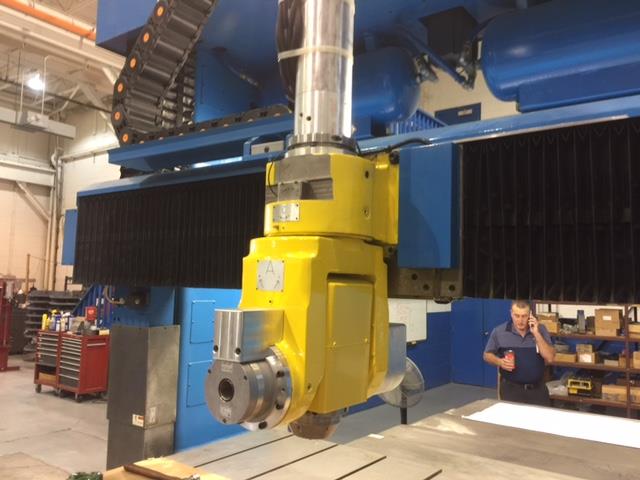

  • 5-Axis Nutator Head
  • Direct Drive Spindle
  • Heavy Weldment Construction
  • Cast Table With (Y) Axis Slide Unit
  • Double Pre-Loaded Ball Screw Nut Design
  • Siemens Motors & Drives
  • Heidenhein Scales
  • Automatic Lubrication
  • Teleflex Retractable Steel Way Covers On (X) & Half Of Z
  • Bellows Way Covers On (Y) & Half Of Z
  • Fully Enclosed Gortube Cable Carriers On All Axis\s

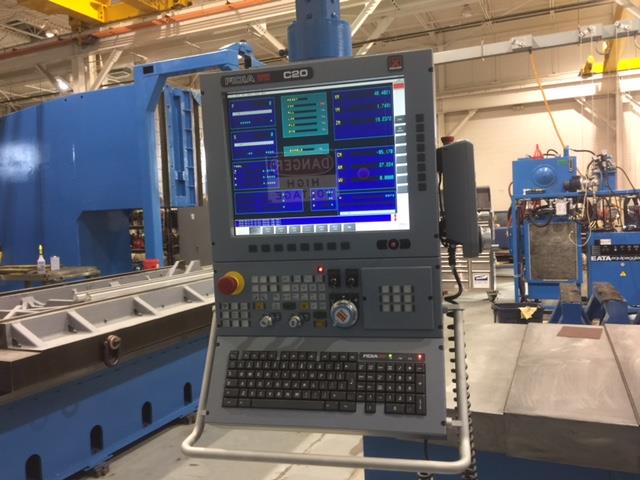

  • Swing Arm Pendant Control

Comments:

  • 28 Week delivery
  • 1 year warranty
