FVM-3016DCLII
M0120
Milling Machines
MILLERS, SKIN GANTRY TYPE
used
(KG)
2019
$0.00

Description

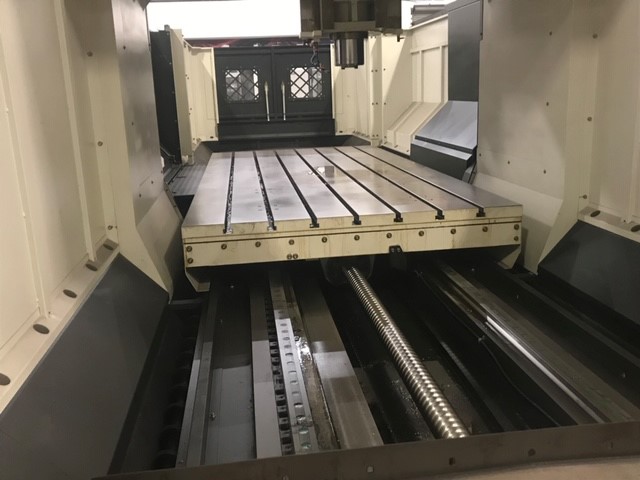

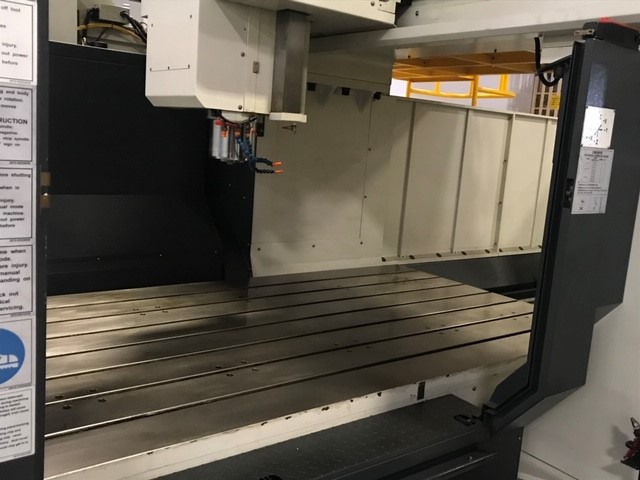

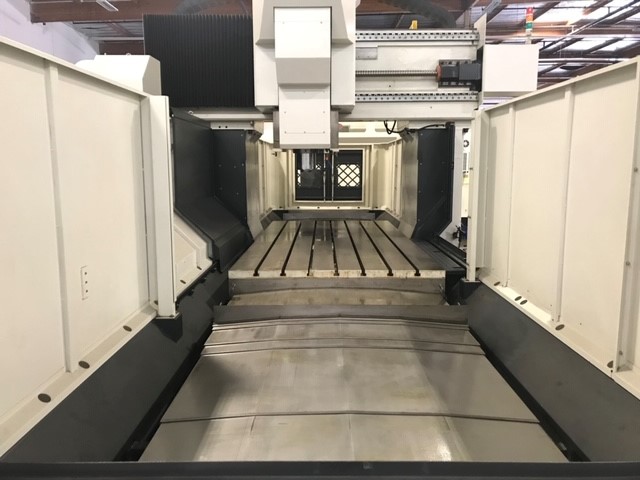

Table:

  • Table Size: 122\" x 547
  • Table Height from Floor: 33.5\"
  • Spindle Nose to Table: 7.9\" to 38.6\"
  • Max. Table Load: 17,600 Lbs
  • Distance between Columns: 70.9\"

Travel:

  • X-Axis: 122\"
  • Y-Axis: 63\"
  • Z-Axis: 30.7\"

Spindle:

  • Spindle Motor: Fanuc 35HP
  • Spindle Speed: 6,000 RPM
  • Transmission: 2-Speed Geared
  • Spindle Taper: CT-50

X-Axis:

  • Rapids: 787 IPM
  • Cutting Feedrate: 394 IPM
  • Ballscrew Diameter: 3.15\"
  • Ballscrew Class: C3
  • Servo Motor: 9.3 HP
  • Two Slide Ways: 2.2\" Roller Ways
  • Positioning Accuracy: JIS B6338 +/-0.0002\"
  • Repeatability: JIS B6338 +/-0.0001\"

Y-Axis:

  • Rapids: 787 IPM
  • Cutting Feedrate: 394 IPM
  • Ballscrew Diameter: 2.5\"
  • Ballscrew Class: C3
  • Servo Motor: 9.3 HP
  • Three Slide Ways: 2.2\" Roller Ways
  • Positioning Accuracy: JIS B6338 +/-0.0002\"
  • Repeatability: JIS B6338 +/-0.0001\"

Z-Axis:

  • Rapids: 591 IPM
  • Cutting Feedrate: 394 IPM
  • Ballscrew Diameter: 1.97\"
  • Ballscrew Class: C3
  • Servo Motor: 9 HP
  • Slide Way: Box Ways
  • Positioning Accuracy: JIS B6338 +/-0.0002\"
  • Repeatability: JIS B6338 +/-0.0001\"

Tool Changer:

  • Tool Capacity: 24 Arm Type
  • Tool Shank: CT 50
  • Maximum Tool Diameter with adjacent tool: 5\"
  • Maximum Tool Diameter without adjacent tool: 8.4\"
  • Maximum Tool Length: 13.7\"
  • Maximum Tool Weight: 44 Lbs
  • Tool Change Time: Tool to Tool: 5 secs

Coolant System:

  • Coolant Tank Capacity: 132 gallons
  • Hydraulic Tank: 39.6 gallons

General:

  • Power required: 220 V / 3 Ph
  • Power Consumption: 60 kVA
  • Air System Pressure: 6 KG/CM
  • Machine Gross Weight: 59,400 Lbs
  • Floor Space (L x W x H): 336\" x 192\" x 192\"

Standard Equip:

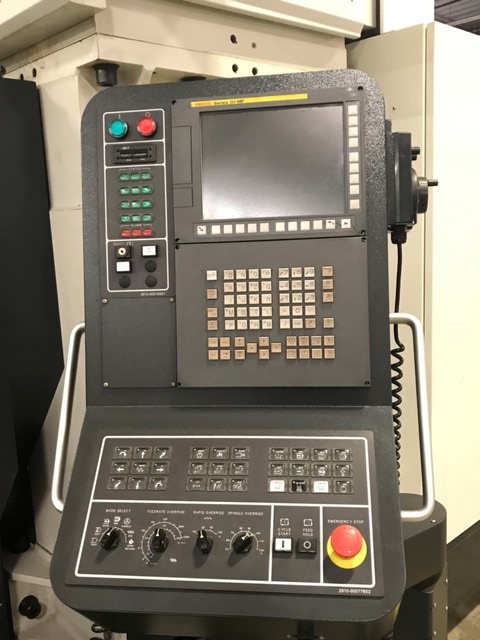

  • Fanuc 0i-MF Control
  • 24 Tool ATC
  • 3-axis Absolute Encoder
  • 35 HP Spindle Motor
  • A/C Heat Exchanger for Electrical Cabinet
  • Automatic Grease Pack Way Lubrication System
  • Automatic Power Off
  • Belt Type Chip Conveyor
  • Coolant System and Coolant Tank
  • Cycle Light
  • Dual Chip Auger System on X-Axis
  • Ethernet with 1GB Data Server
  • Foot Pedal for Tool Clamping and Unclamping
  • Leveling Bolts and Pads
  • Operation Manual and Parts List
  • Pre-wired High-Pressure Coolant Through Spindle
  • Remote MPG
  • RS-232 Interface
  • Semi-enclosed Splash Guard
  • Spindle Air Blast
  • Spindle Oil Chiller
  • Tool Box and Tools
  • Work Light

Optional Acc:

  • 60T ATC in lieu of 24T ATC - $9,850
  • Renishaw TS27R Tool Length Measurement - $5,780
  • Renishaw OMP-60 Part Probe - $12,600
  • 4th-axis with 500mm Rotary Table - $34,200
  • 400 PSI Coolant Through Spindle System w/ External Coolant Tank - $17,400
  • 1000 PSI Coolant Through Spindle System (Recommend Purchase with CTS
  • Full Enclosure Splash Guard with Roof Covers) - $25,800
  • CTS Fully Enclosed Splash Guard w/Roof Covers in lieu of standard guard $24,900
  • Oil skimmer - $740
  • Heidenhain Linear Scale On X, Y, Z-axis - $25,800
  • 90-degree Head N75C (Manual Indexing in Every 45-degree, Manual Tool
  • Release, 2000rpm Maximum) - $19,500
  • AICC Advanced mode (200 blocks look ahead) with
  • NANO Smooth and Jerk control - $3,920
  • Upgrade Part Program Storage to 5120M (2MB) - $1,440

Warranty:

  • One (1) Year on machine (parts & labor) - ask for details
  • Two (2) Years on FANUC CNC control (parts & labor) - ask for details

Payment:

  • Upon credit approval, 30% down with PO, 40% before ship, and balance Net-30
  • Quote is valid for 30 days
