2018 MAZAK 350 MY TURNING & MILLING CENTER ,120” CENTERS , LOADED WITH OPTIONS , CNC “ SMOOTH G” CONTROLS

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


2018 MAZAK 350 MY TURNING & MILLING CENTER ,120” CENTERS , LOADED WITH OPTIONS , CNC “ SMOOTH G” CONTROLS
350 MY
Lathes and Turning Centers CNC
Turning and milling center
new
19976 (LB)
2018
$0.00

Description

Specifications:

  • Chuck: 12"
  • Max. Swing: 29.5"
  • Maximum Turning Diameter: 16.54"
  • Maximum Turning Length: 120 in
  • Maximum Swing: 29.5"

Spindle:

  • Spindle Bore: 4.41"
  • Bar Capacity: 4"
  • Spindle Speed: 3,300 rpm
  • Spindle Motor: 40 HP
  • Spindle Nose: A2-11
  • C-Axis: 360 Degrees
  • C-Axis Rapid Traverse: 555 RPM

Turret:

  • Tool Positions: 12 Tools
  • X-Axis Travel: 10.125"
  • Z-Axis Travel: 26.375"
  • Y-Axis: 6.0"

Milling:

  • Rotary/Milling Spindle Speed: 4,000 RPM
  • Rotary/Milling Spindle Motor (at each tool position): 10 HP

Speeds/ Feeds:

  • X-Axis Rapid Traverse: 1181 IPM
  • Z-Axis Rapid Traverse: 1291 IPM
  • Y-Axis Rapid Traverse: 59 IPM

Tailstock:

  • Quil Center Taper: MT #5
  • Body Travel: 25.5"

Dimensions:

  • Length x Width x Height: 132" x 84" x 85"
  • Weight: 19,976 Lbs

Equipped With:

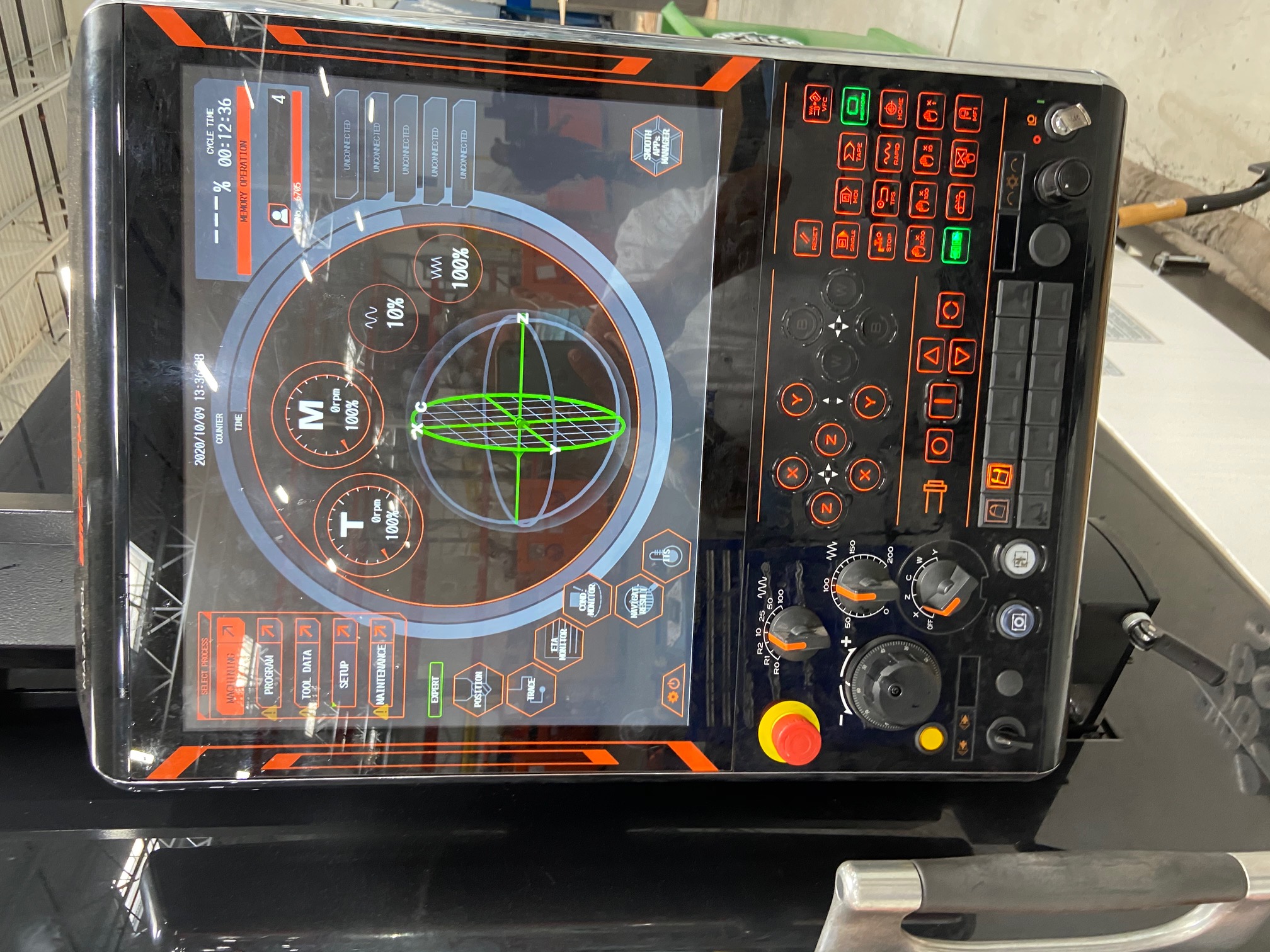

  • Mazatrol Matrix Nexus SMOOTH G controls
  • Sub-micron input (0.000010 in min program. Input)
  • Intelligent Thermal Shield
  • Conversational and EIA (G-code) Programming
  • 12" 3-Jaw Chuck
  • Standard Tooling Package
  • Full Y-axis Milling
  • Full C-axis Contouring
  • Tool Eye
  • Inch Metric Conversion
  • SMW steady support
  • Chip conveyor

Comments:

  • Immediately available
  • Only used sparingly for a few months
  • Looks and runs like new
