2018 MAGERLE 5 AXIS CNC GRINDING MACHINE

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


MFP-100.75.9
6865-0017
Grinders
CNC Grinding Center
used
(LB)
2018
$0.00

Feature Video

Description

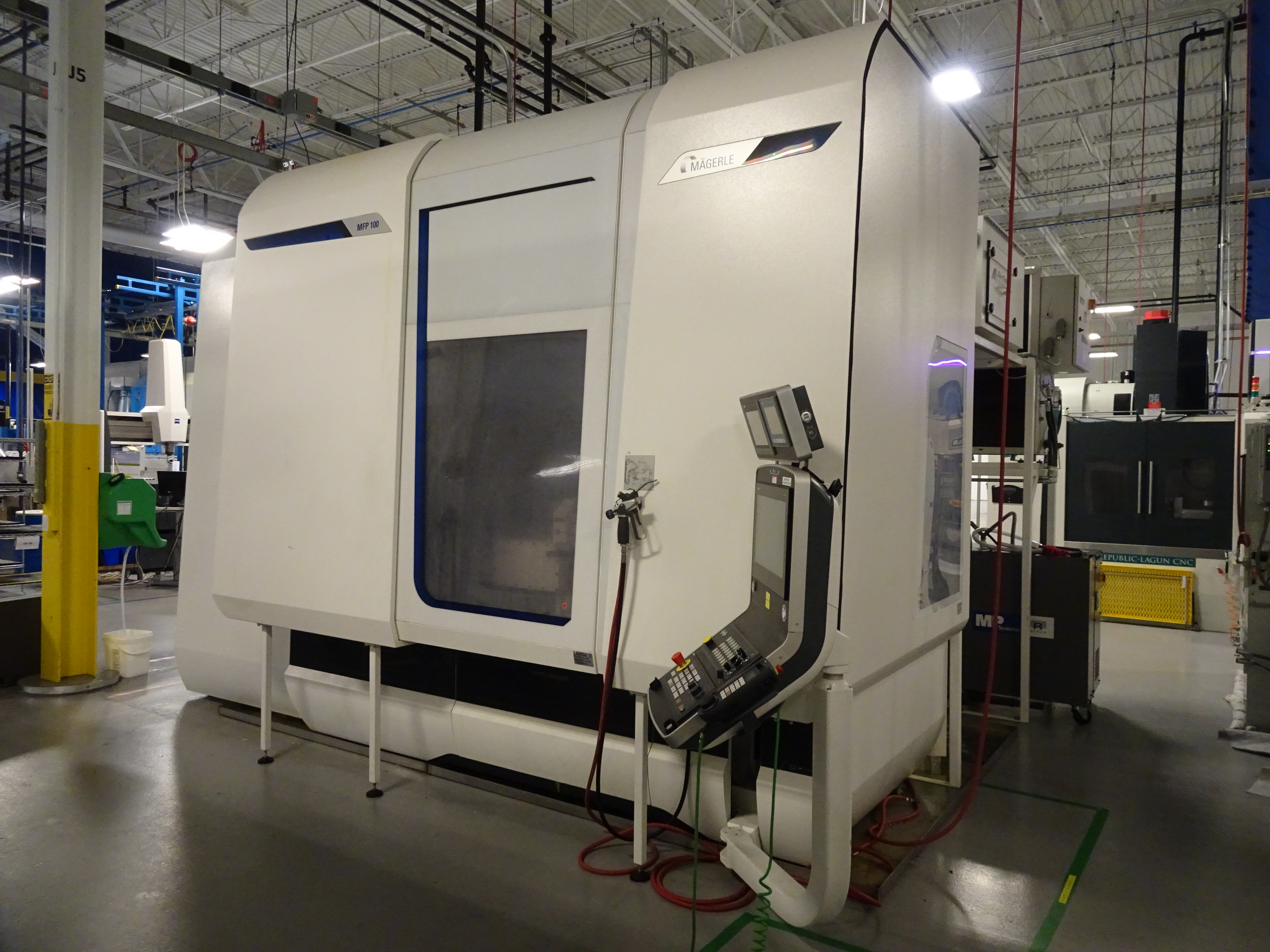

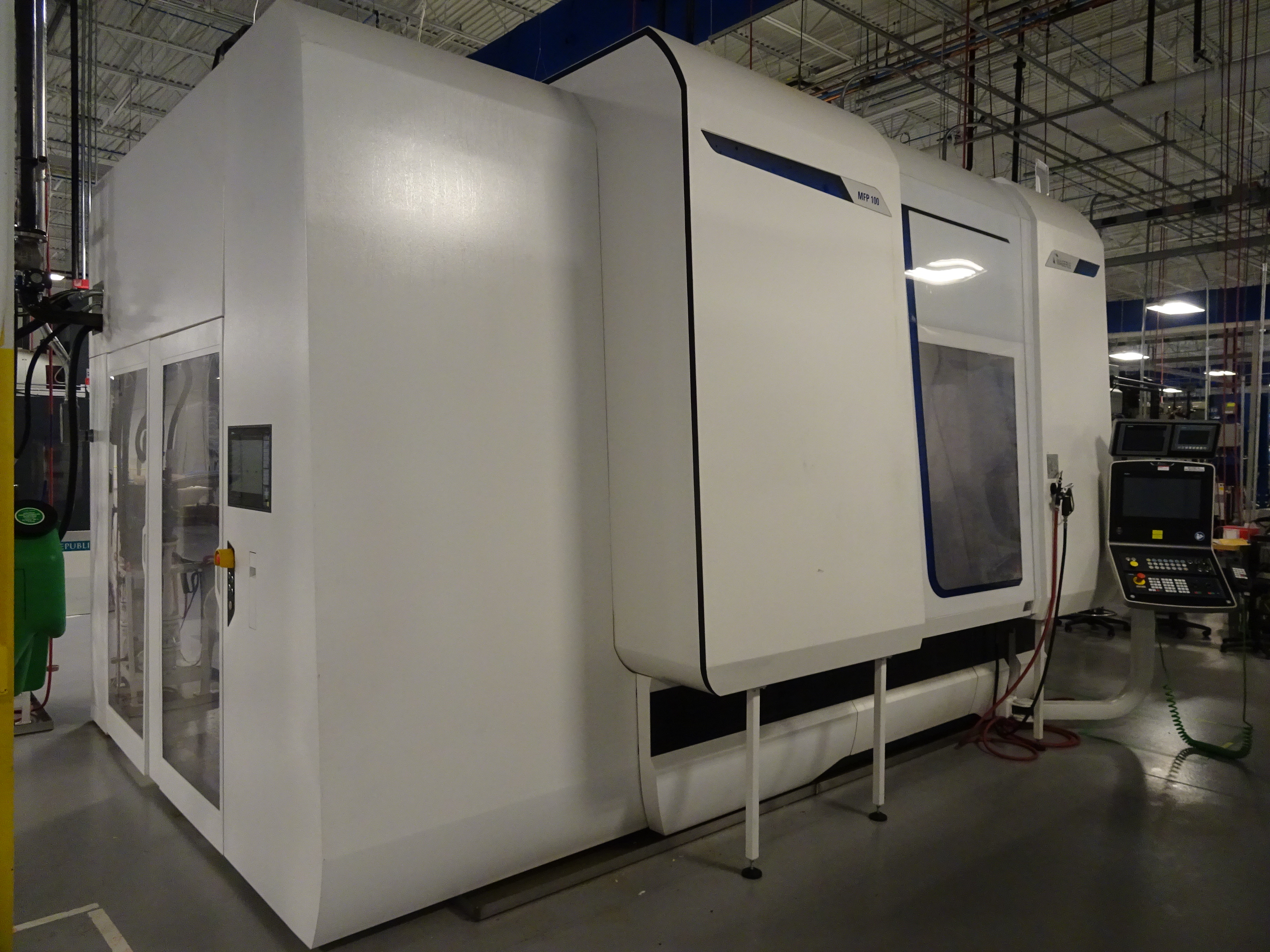

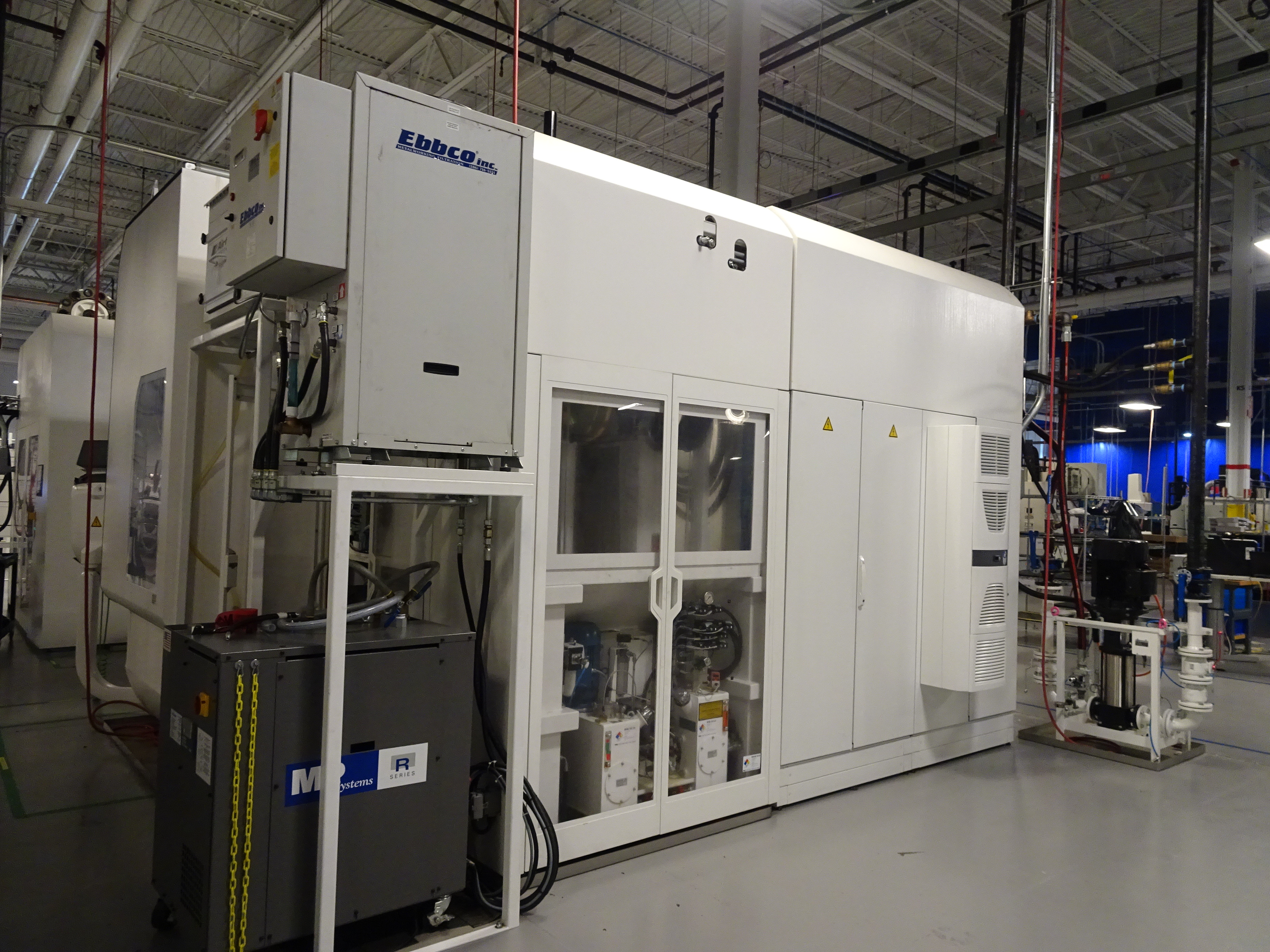

2018 Magerle 5 Axis CNC Grinding Machine,

Model MFP-100.75.9,

Longitudinal Axis X Table stroke 1000 mm

Table speed, infinitely variable 0.010 - 40000 mm/min,

Vertical Axis Y Vertical stroke 900 mm

Vertical speed, infinitely variable 0.001 - 30000 mm/min

Vertical feed increment min. 0.001 mm,

Cross Axis Z Transverse stroke 750 mm

Transverse speed, infinitely variable 0.001 - 30000 mm/min

Transverse feed increment min. 0.001 mm,

Grinding Wheel Diameter/bore max 300/76.2 mm

Width max. 100 mm

Grinding Spindle Drive AC-motor, water cooled 50 kW

Peripheral Speed of Grinding Wheel, infinitely variable up to 10000 rpm,

Profile Rolls For overhead dressing device with cross ax is: Diameter max.160 mm Width max. 100 mm, Bore 52 mm,

Maximum peripheral speed of grinding wheel step less variable up to 10000 rpm,

Over the wheel mounted diamond roll dressing equipment, fully integrated in the machine control, including CD dressing program, with AC motor for diamond roll drive,

max. roll diameter 160 mm (6 in),

max. width of roll 100 mm (4 in),

shaft diameter 52 mm.

Dressing amounts, rapid infeed and retraction amounts and roll speed up to 6000 rpm, clockwise or counter clockwise are programmable via CNC parameters 2-axes auto compensated water spout, including vertical and lateral NC-axes (X- and Y-axis),

Power operated splash-guard door,

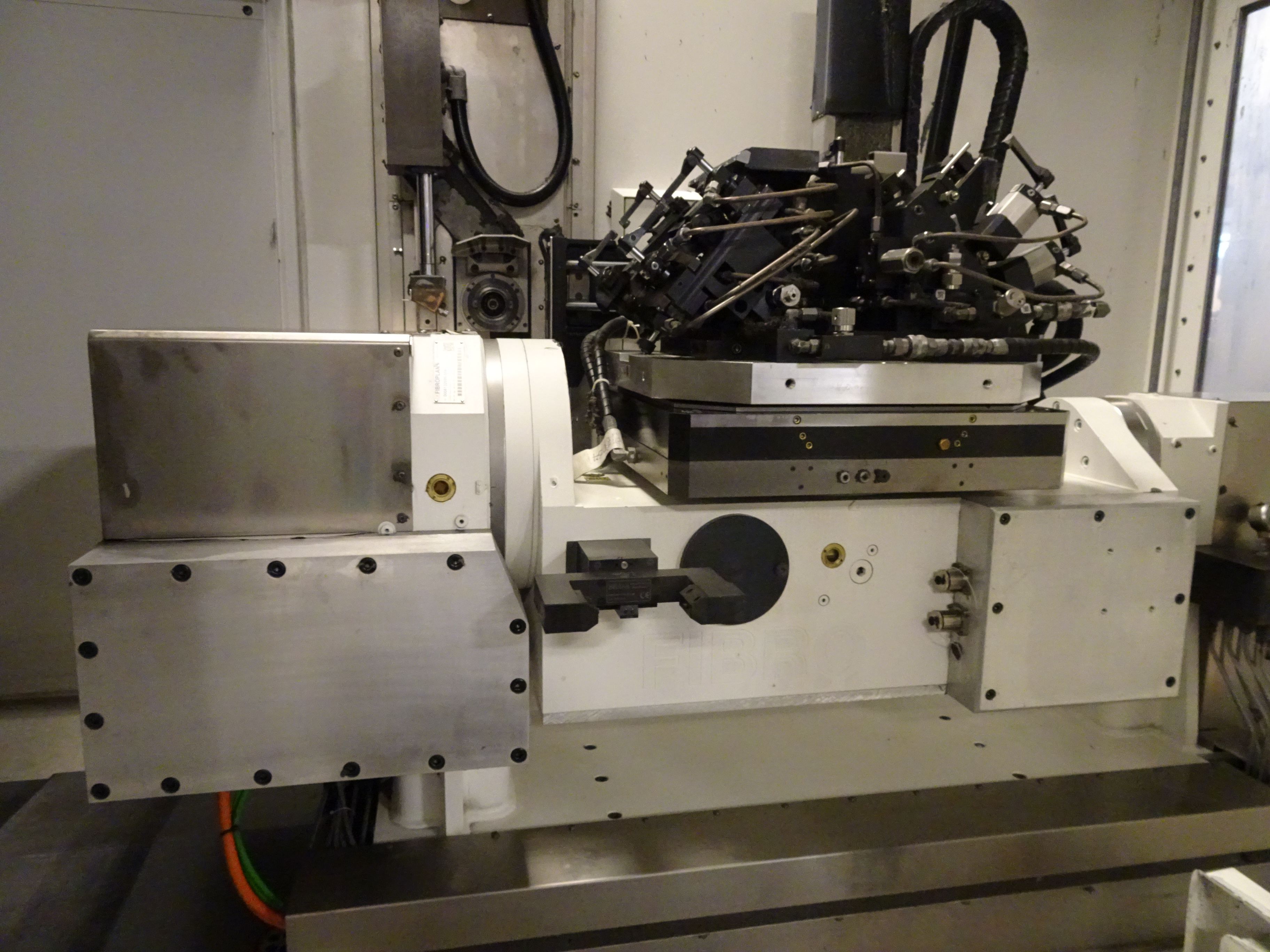

2-axes NC-indexing device, type FIBRO, fully integrated into the machine control,

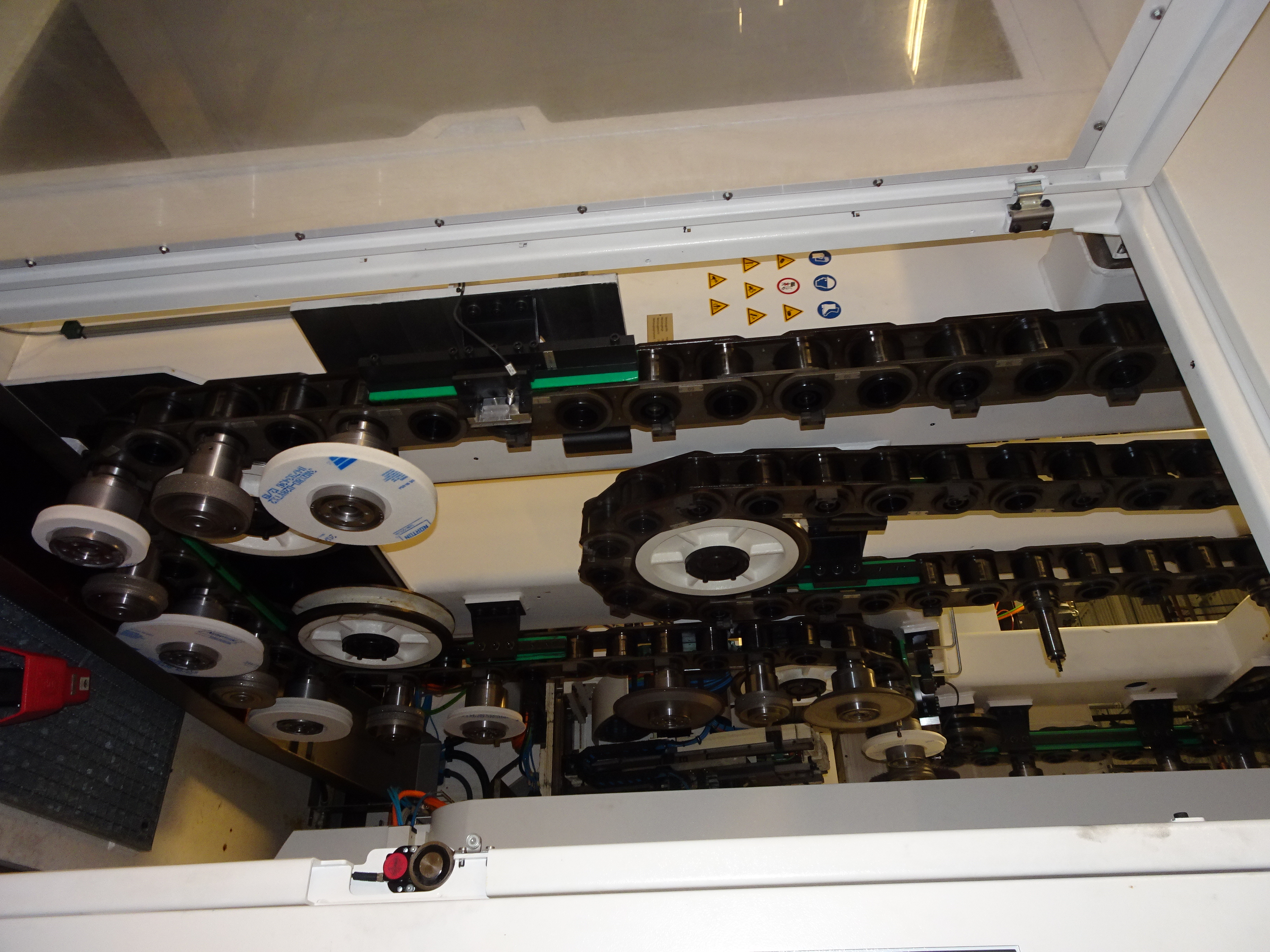

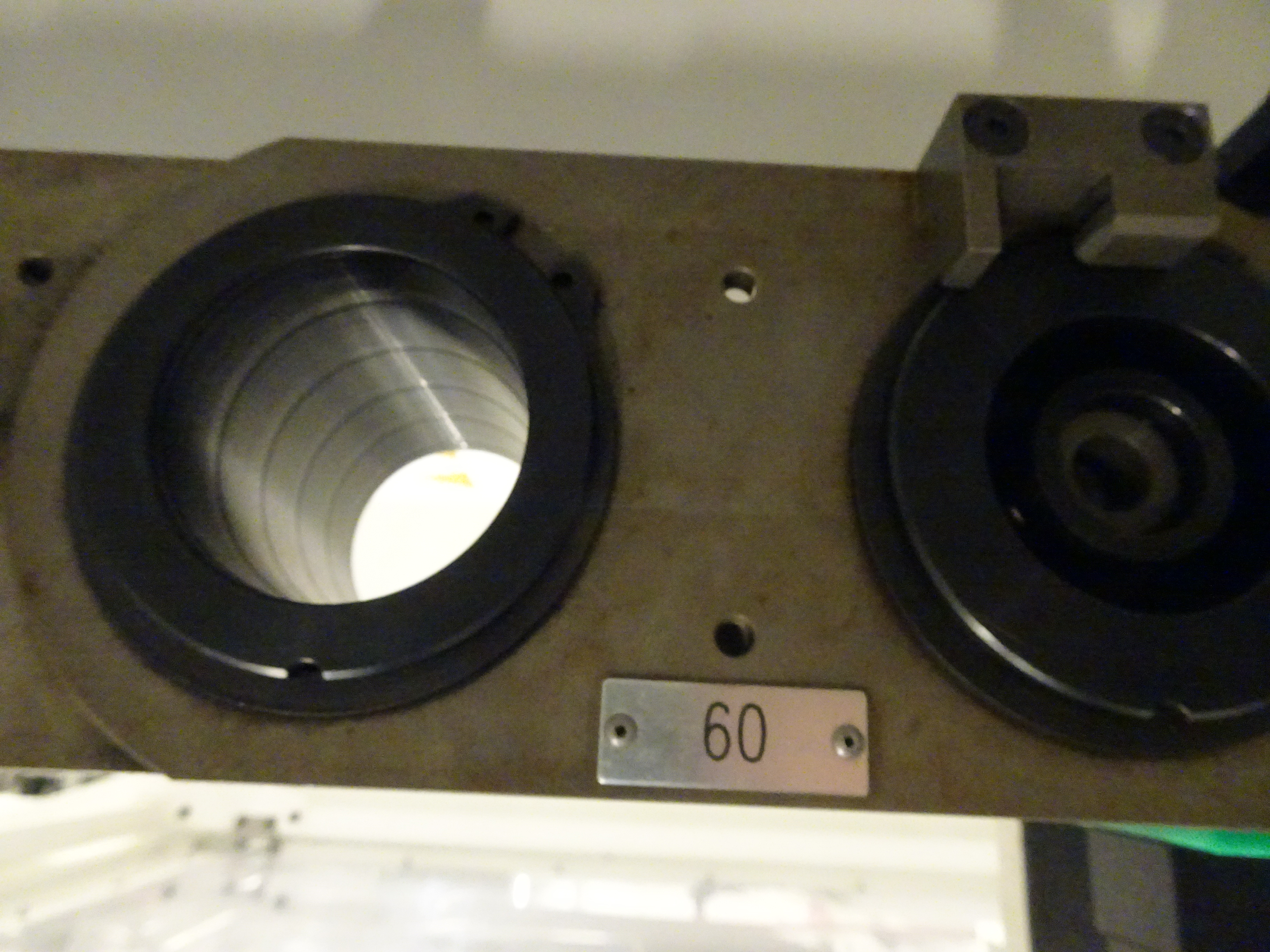

Automatic wheel-/tool changer (30 pockets), for the accommodation of up to 15 wheels of max. 300 mm (12 in) diameter and 15 rolls/tools of max 160 mm (6 in) diameter

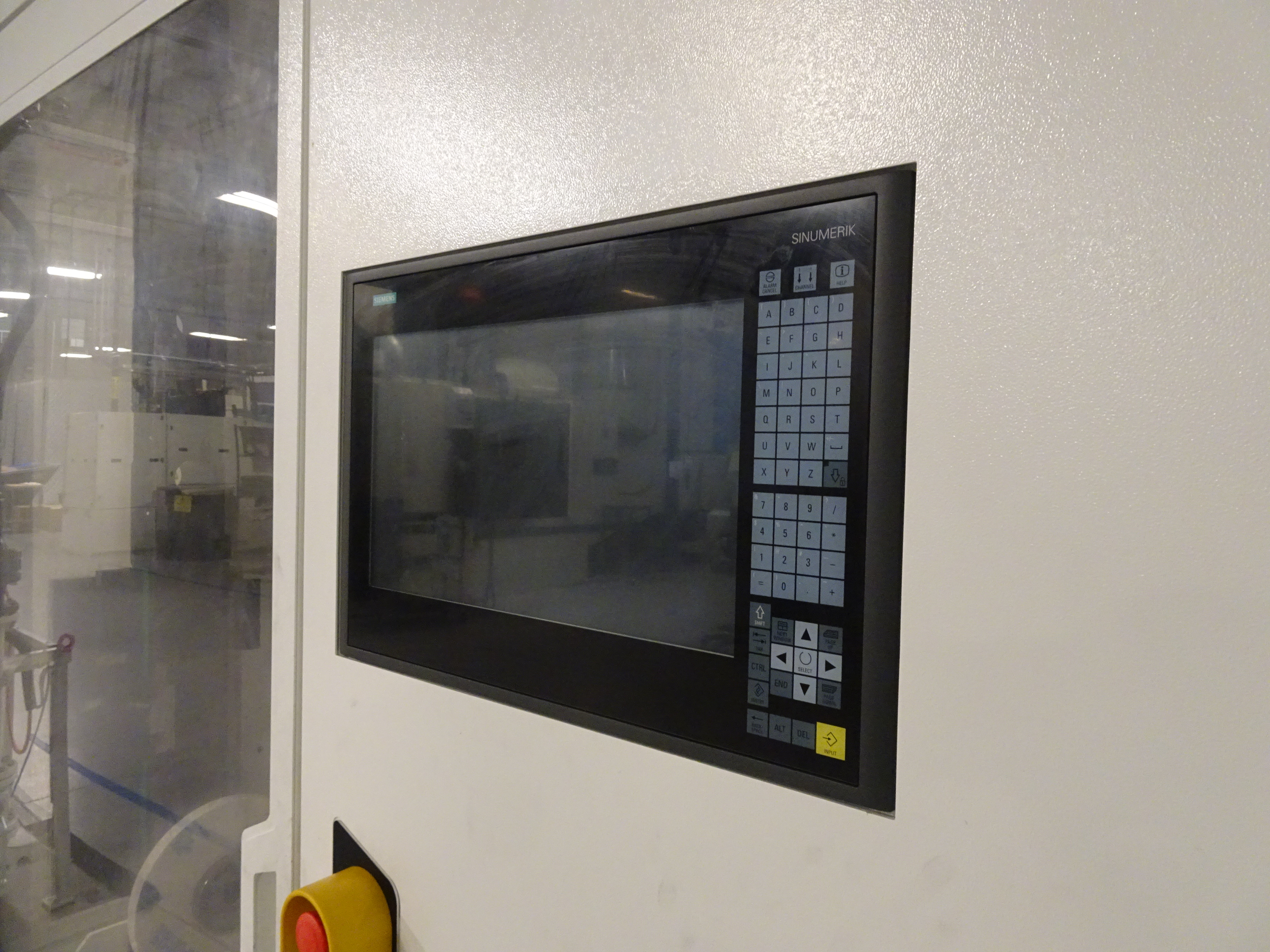

SIEMENS Sinumerik 840 D sl,

50 kW AC motor (main spindle), water cooled,

Peripheral speed of grinding wheel stepless variable up to 10000 rpm,

2-axes auto compensated waterspout, including vertical and lateral NC axes,

Probe  Renishaw RMP60,

Tool Setter  Renishaw NC4,

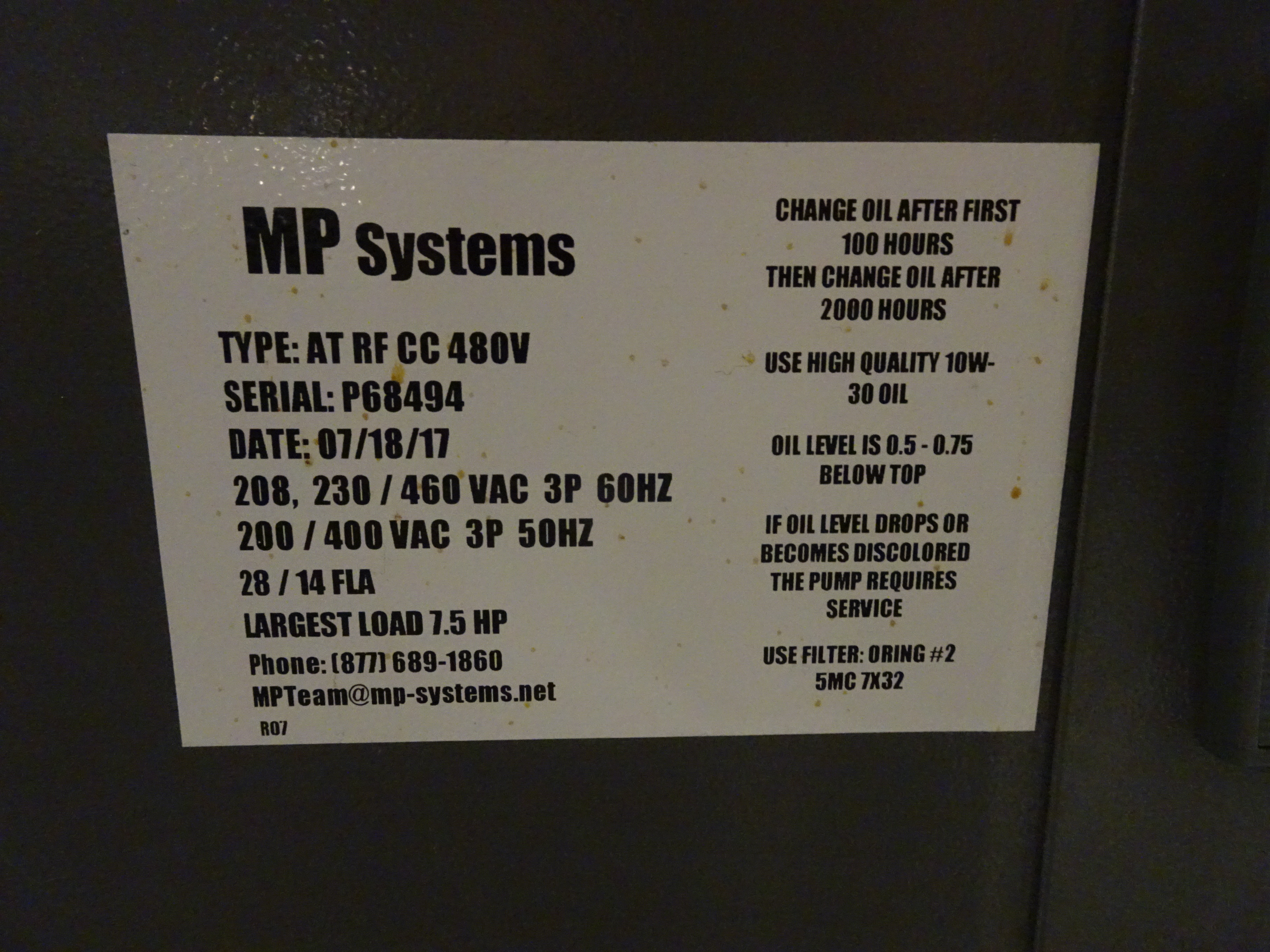

MP Systems Model AT RF CC high pressure coolant system,

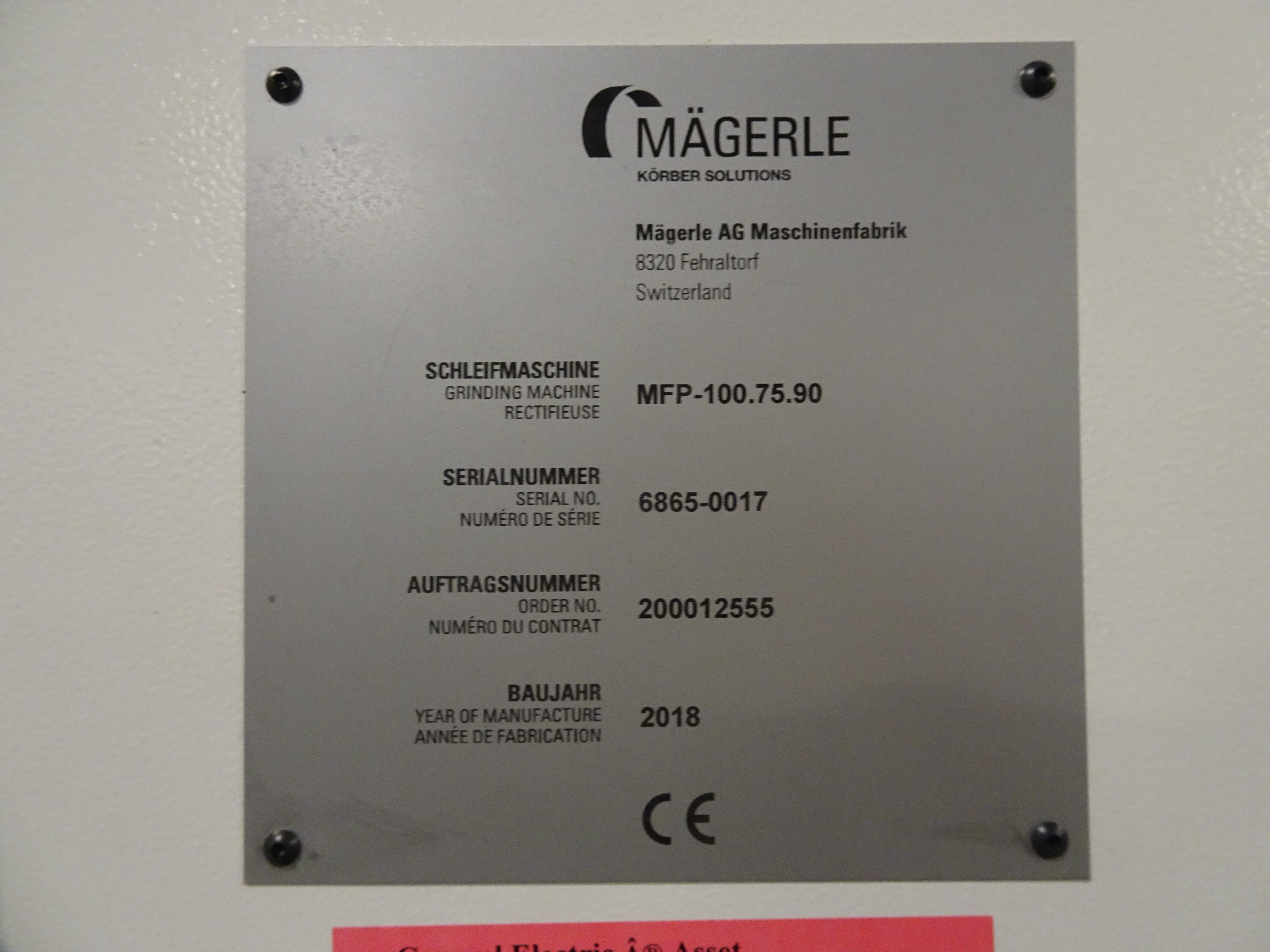

Machine Serial Number 6865-0017,

Run Hours Only 3,689,
