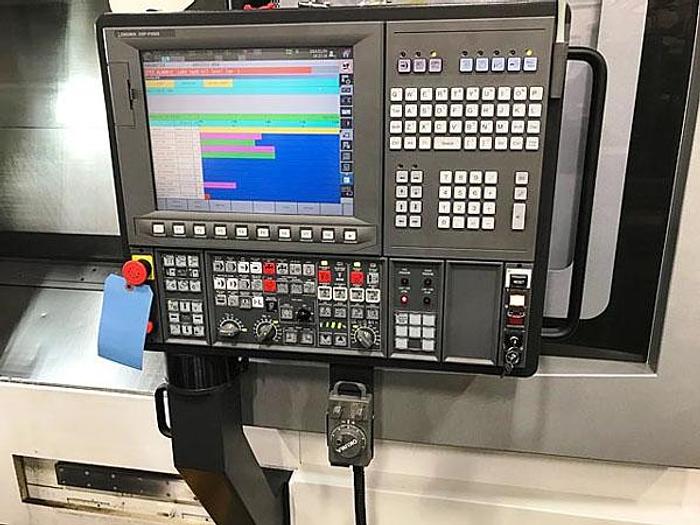

Max Swing Over Saddle 27.95" Max Machining Diameter 27.95" Max Working Distance Between Spindles 59.06" Cross Travel (X-Axis) 27.17" Longitudinal Travel (Z-Axis) 60.83" Y-Axis Travel 9.02" B-Axis Universal Head Swivel 225 Degree C-Axis Spindle Rotation .001 Degree Tool Positions 40 Total Spindle Bore 4.72" Bar Capacity 3.15" Spindle Nose A2-11 Spindle Speed Range 38-3800 RPM Spindle Horsepower Both Spindle 40 HP Live Tooling Speed Range 90-6000 RPM Live Tooling Horsepower 14 HP Approximate Machine Dimensions w/Conveyor 281" x 101" Approximate Machine Height 119" Approximate Machine Weight 36,000 LBS Power On 9605 Cutting Hours 3870 OKUMA OSP P300S CNC Control, Hi-Cut Pro, Hi-G Control, Admac 3D Virtual Monitor, Full Contouring B-Axis Universal Head, Lathe Tool Indexing, 15" Kitagawa B-15 15" 3-Jaw Power Chuck, Programmable Torque Limit, 40 Station Automatic Tool Changer Heavy Duty Tailstock with 60" Between Centers, Full C-Axis Spindle Rotation, CAPTO Spindle Taper, 3D Animation, Servo Link Spindle, Tool Life Management, Tool Wear Comp, Tool Setting Probe, Plane Conversion, Profile Generation, Coolant Thru the Spindle, Helical Cutting, Synchronous Tapping, Oil Chiller, Chip Conveyor & Coolant System.
Specifications

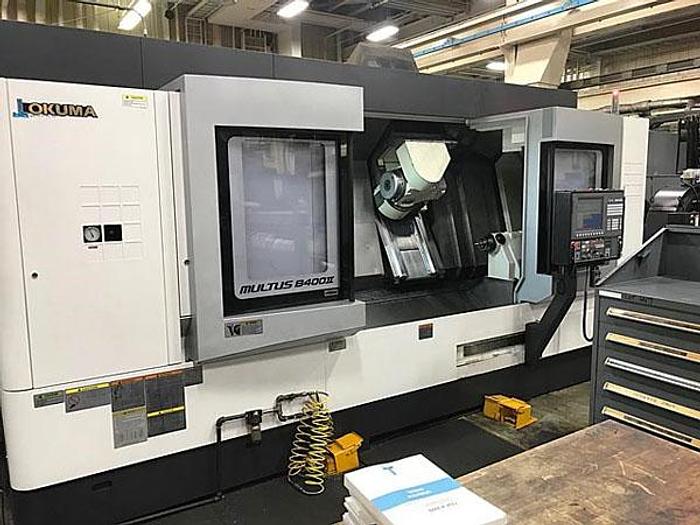

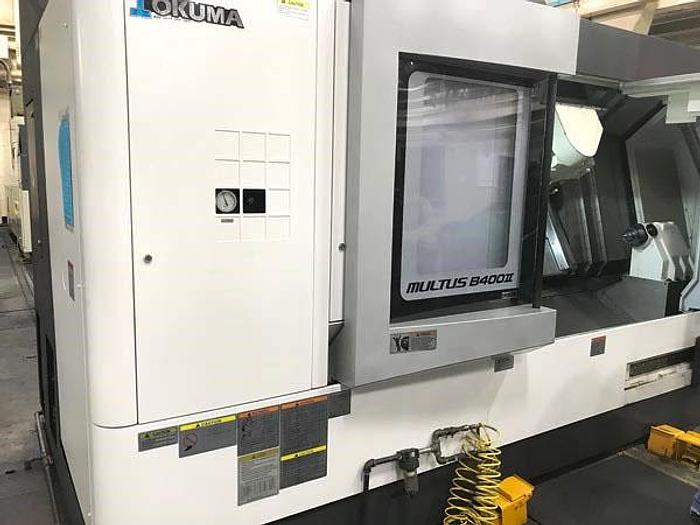

Manufacturer3098, Okuma Multus, B-400II, CNC Universal Head, Live Tooling & Y-Axis, 2018ModelB400IIYear2018ConditionUsedStock Number3099HoursPower On 9605 Cutting Hours 3870
More on this model
To view more information on the 2018 3098, OKUMA MULTUS, B-400II, CNC UNIVERSAL HEAD, LIVE TOOLING & Y-AXIS, including reviews, brand information, photos, videos, and more,
