2018/19 MAZAK QUICK TURN NEXUS 350-II MY CNC TURNING CENTER

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


2018/19 MAZAK QUICK TURN NEXUS 350-II MY CNC TURNING CENTER
Nexus 350-II MY
Lathes and Turning Centers CNC
Slant Bed Turning center
used
16976 (LB)
2018
$159,500.00

Description

Specifications

  • Chuck: 12"
  • Max. Swing: 29.5"
  • Maximum Turning Diameter: 16.54"
  • Maximum Turning Length: 60 in
  • Maximum Swing: 29.5"

Spindle:

  • Spindle Bore: 4.41"
  • Bar Capacity: 4"
  • Spindle Speed: 3,300 rpm
  • Spindle Motor: 40 HP
  • Spindle Nose: A2-11
  • C-Axis: 360 Degrees
  • C-Axis Rapid Traverse: 555 RPM

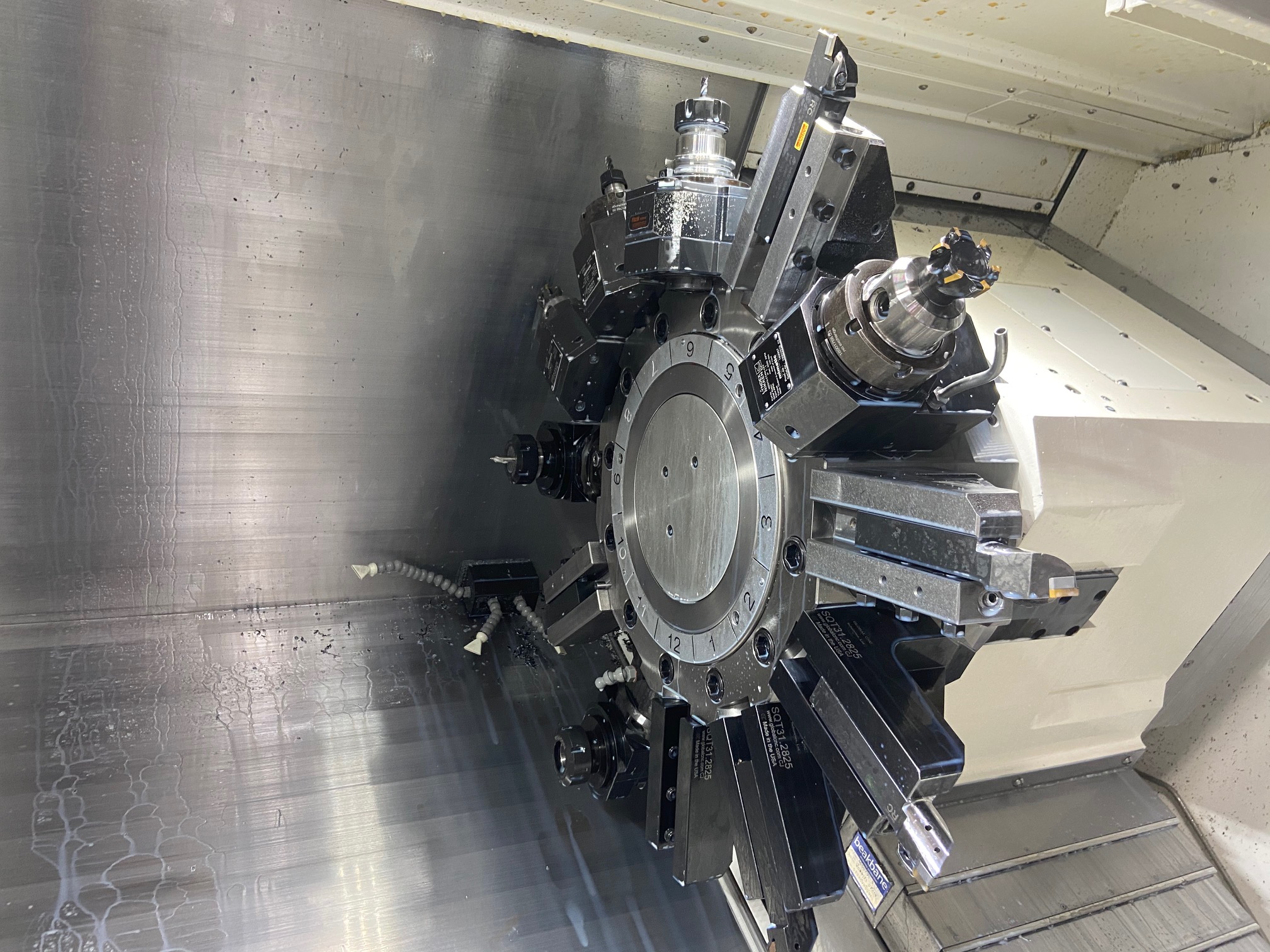

Turret:

  • Tool Positions: 12 Tools
  • X-Axis Travel: 10.125"
  • Z-Axis Travel: 26.375"
  • Y-Axis: 6.0"

Milling:

  • Rotary/Milling Spindle Speed: 4,000 RPM

Speeds/ Feeds:

  • X-Axis Rapid Traverse: 1181 IPM
  • Z-Axis Rapid Traverse: 1291 IPM
  • Y-Axis Rapid Traverse: 59 IPM

Tailstock:

  • Quill Center Taper: MT #5
  • Body Travel: 25.5"

Dimensions:

  • Length x Width x Height: 132" x 84" x 85"
  • Weight: 16,976 Lbs

Equipped With:

SMW Steady Rest

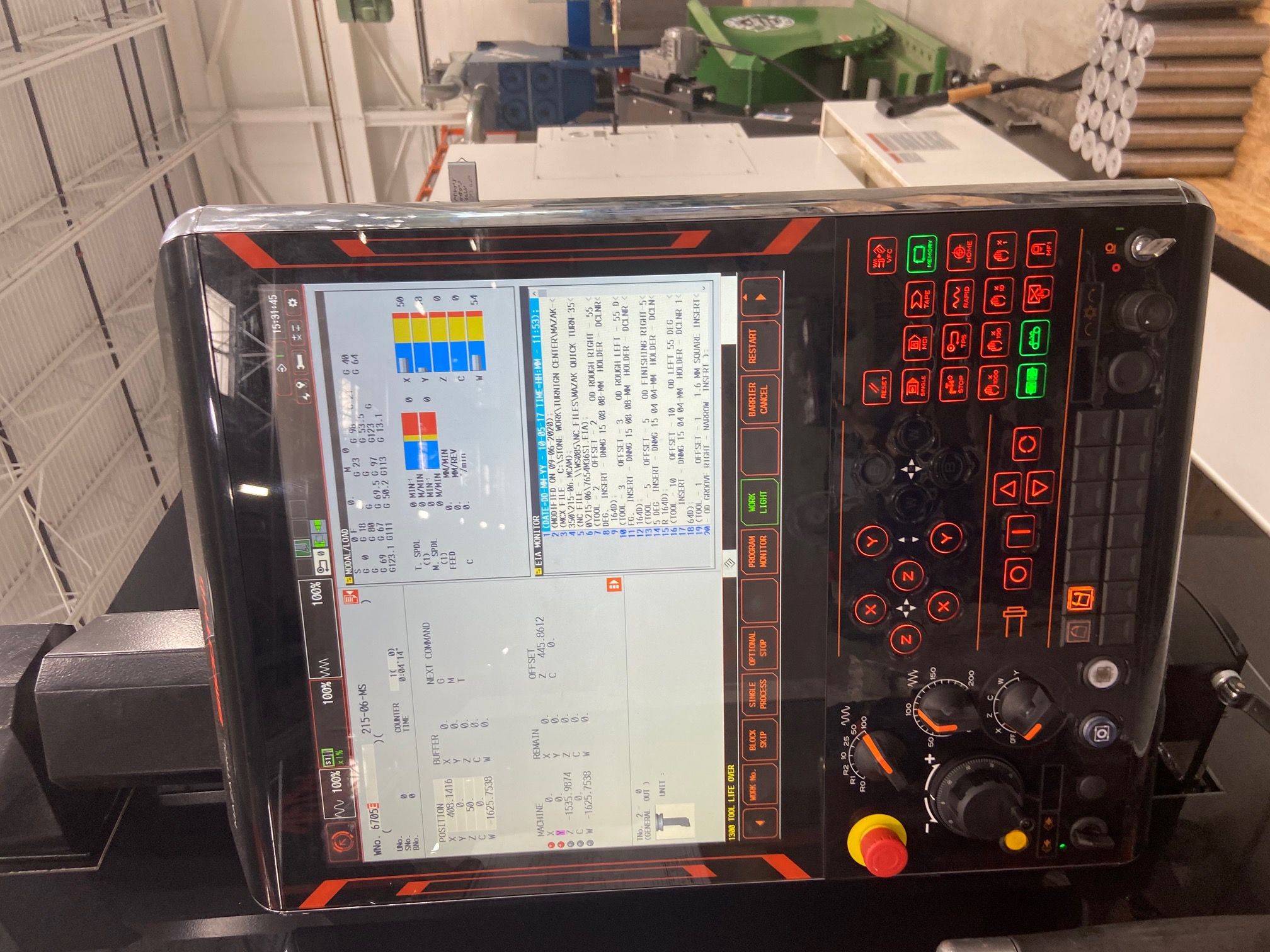

               Mazatrol Matrix Nexus

  • Sub-micron input (0.000010 in min program. Input)
  • Intelligent Thermal Shield
  • Conversational and EIA (G-code) Programming
  • 12" 3-Jaw Chuck
  • Standard Tooling Package
  • Full Y-axis Milling
  • Full C-axis Contouring
  • Tool Eye
  • Inch Metric Conversion

Comments:

  • Todays Replacement Cost is $261,000
  • Immediately available
  • Only used sparingly for a few months
  • Looks and runs like new
  • This is the current model, made in Kentucky

Price:

$159,500

Condition:

Good

Location:

OK
