2017 STAR SR-20J TYPE N NON-GUIDE BUSH SWISS TYPE CNC LATHE - STAR SR-20J TYPE N

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


SR-20J
SR-20J TYPE N
Lathes and Turning Centers CNC
Swiss Type CNC lathe
used
2200 (KG)
2017
$0.00

Feature Video

Description

Specifications:
Spindle Hole Dia 20.0
Power 3.7
# Axis 8.0

Max.machining diameter 20mm(25/32in)
Max.headstock stroke Bar diameter 2.5
(max.55mm) (max.2-11/64in)

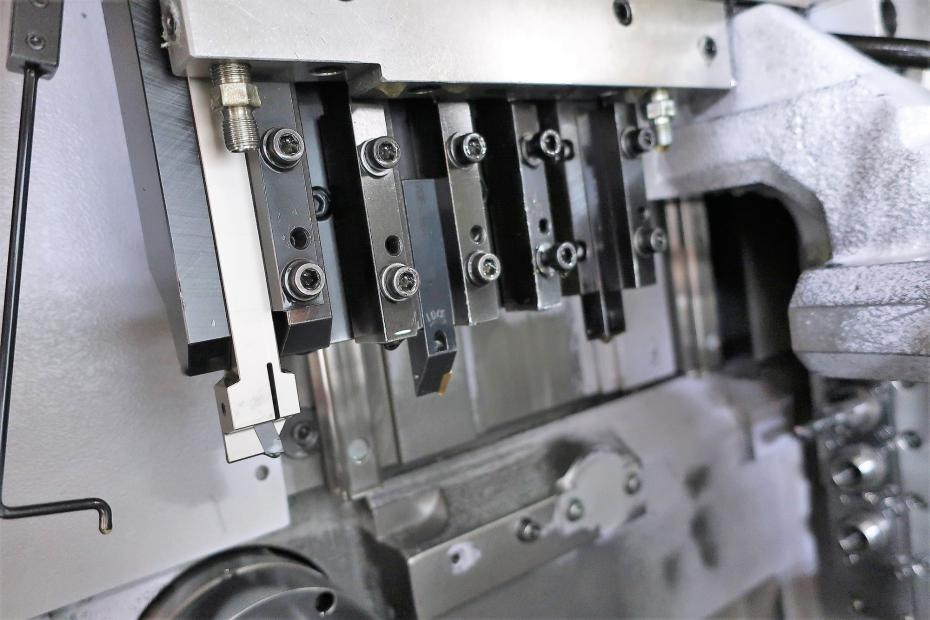

Number of turning tools 6 tools (12mm)

4-spindle sleeve holder
Number of tools Front : 4 tools
Rear : 4 tools
Max.drilling capability 10mm(25/64in)
Max.tapping capability M8 P1.25

Power-driven att. Number of tools 5 tools
Max.drilling capability 8mm(5/16in)
Max.tapping capability M6 P1.0

Spindle speed max.8,000min-1
Drive motor 1.2kw
Rapid feed rate 35m/min(X,Y,Z,XB,ZB)
Main spindle indexing angle C-axis control
Main spindle speed max.10,000min-1
Main spindle motor 2.2kw(Continuous)
/3.7kw(15min./60 percent ED)

Dimensions (W D H) 2,250 x 1,200 x 1,700mm
Weight 2,200kg
Power consumption 5.2KVA

Backworking Attachment
Max.chucking diameter 20mm(25/32in)
Max.length for front ejection 80mm(3-5/32in)
Max.work projection length 30mm(1-3/16in)

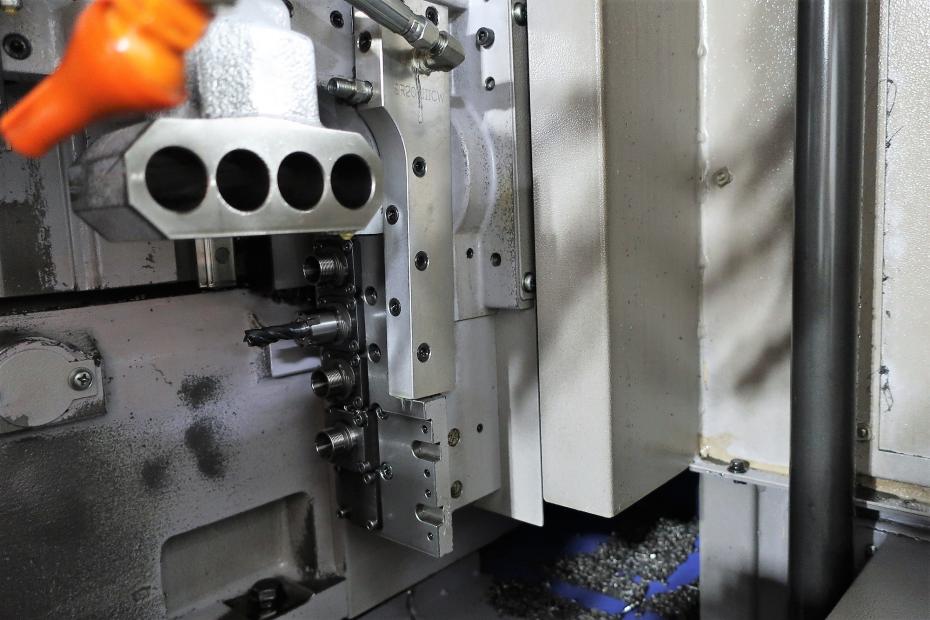

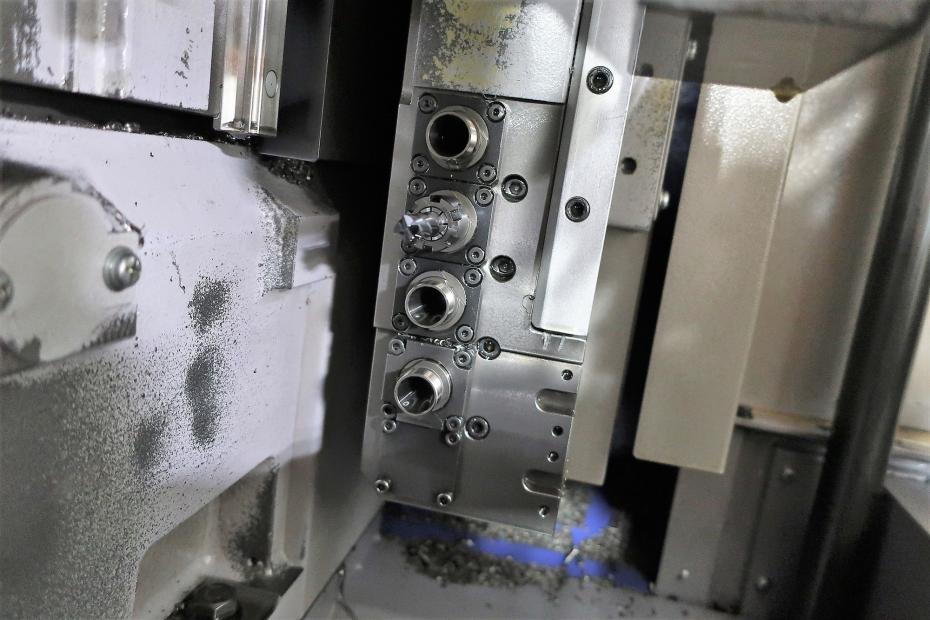

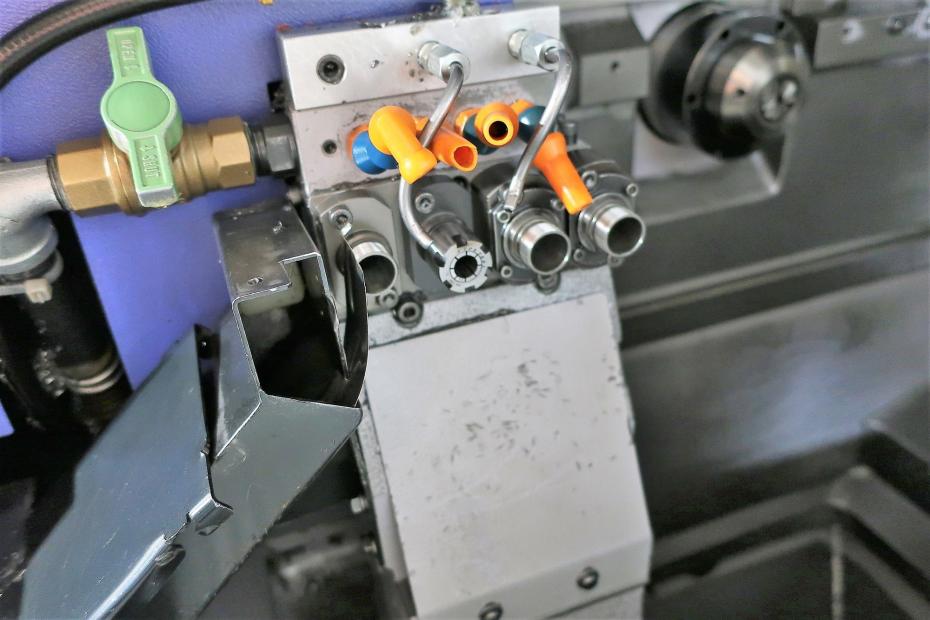

4-spindle backworking unit
Max.drilling
capability Stationary tool 8mm(5/16in)
Power-driven tool 5mm(3/16in)
Max.tapping capability Stationary tool M8 x P1.25
Power-driven tool M4 x P0.7

Sub spindle indexing angle C-axis control
Sub spindle speed max.8,000min-1
Sub spindle motor 1.5kw(Continuous)
/2.2kw(15min./50%ED)

Equipped With:
Fanuc Series 31i -Model B Control

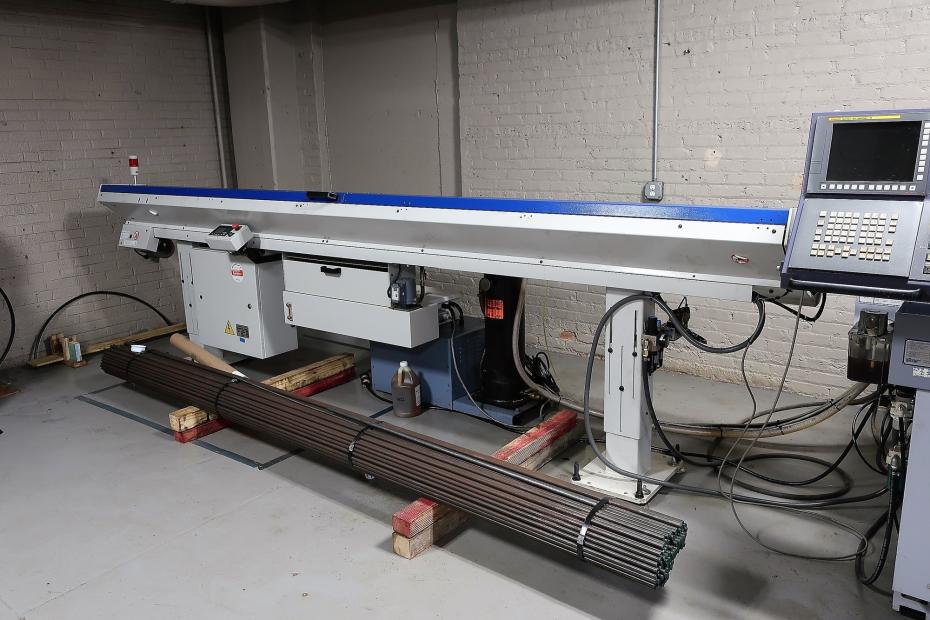

Iemca IDEAL 325 Bar Feeder
4 Position Live Backworking
Chip conveyor,

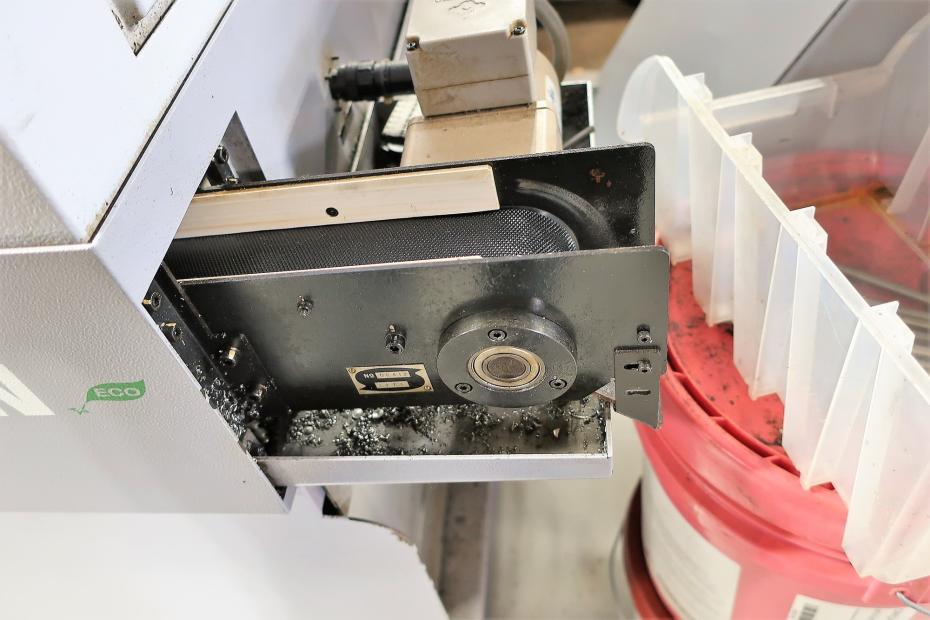

Parts Conveyor,

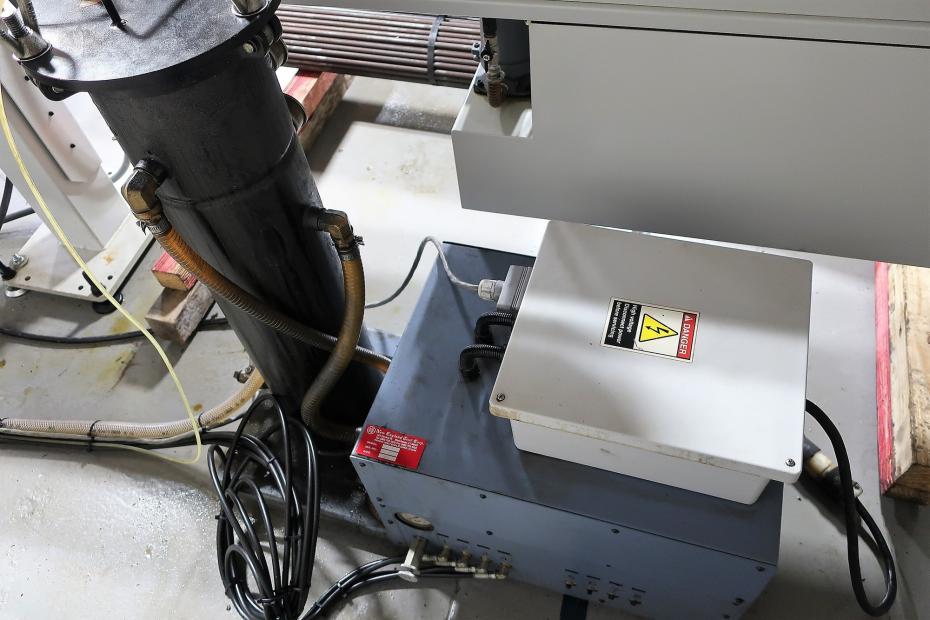

High Pressure Coolant

2017 Star SR-20J Type N Non-Guide Bush Swiss Type CNC Lathe | Iemca Ideal 325 | Live Backworking | High Pressure Coolant | Fanuc 31i-B

Stock Number 12937
