Specificatons:
Max Swing Over Slant Bed 20.47"
Max Swing Over Cross Slide 14.57"
Max Distance Between Centers 20"
Maximum Cutting Diameter 11.81"
Maximum Turning Length 17.7"
Chuck Size 10" Kitagawa
Cross Travel (X-Axis) 9.25"
Longitudinal Travel (Z-Axis) 20.47"
Rapid Traverse Rate 787 IPM
Number of Turrets 1
Turret Positions 12
Spindle Nose A2-8
Spindle Bore 3.15"
Bar Capacity 3"
Spindle Speed 25-3000 RPM
Spindle Drive Motor 15 HP
Milling Spind Speed 100-4500 RPM
Miling Spindle Motor 9 HP
Electrics 230/3/60
Approximate Machine Dimension 70" x 100"
Approximate Machine Height 68"
Approximate Machine Weight 9000 LBS
Equipped With:
OSP 300L Control
10" Kitagawa Chuck
Chip Conveyor
Full standard package of Live and Static Tool Holders

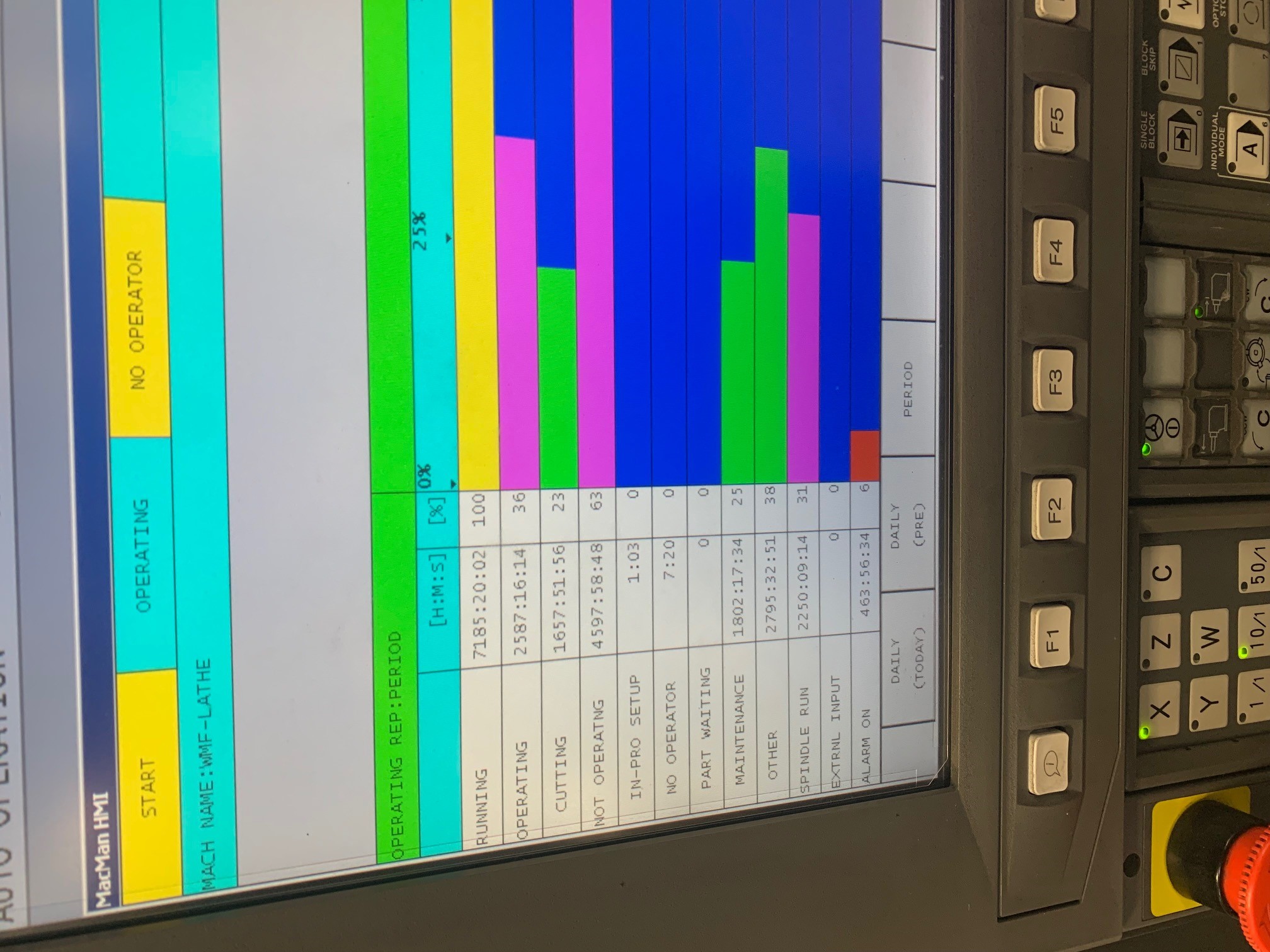

Comments: 1657 cutting hours
Cutting Mild Steel
It has had a PM every year since, and it is in great condition, runs most days
Price: $65,000 FOB plant floor, Saint Louis, Missouri area
