Manufacturer: Kira

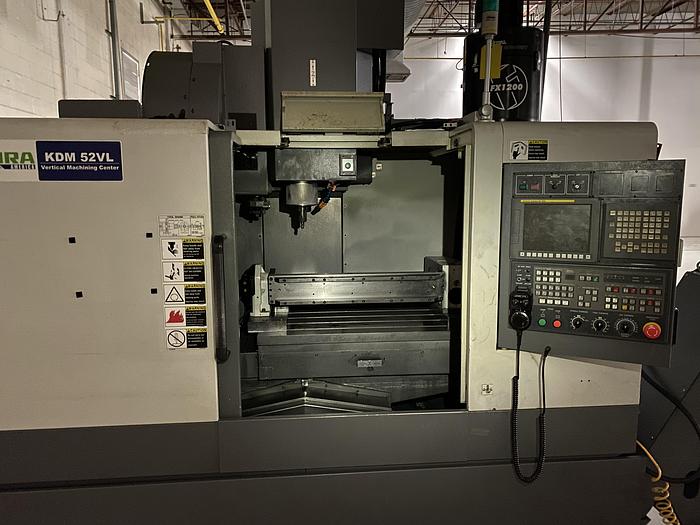

Model: Kdm 52 VL CNC Machining Center
Year: 2016
Stock No. 5594
SPECIFICATIONS:
Travels X, Y, Z: 40.16" x 20.47" x 20.08"
Distance From Table Top to Spindle Nose: 5.91"-25.98"
Distance From Spindle Center to Column: 20.67"
Table Size: 43.31" x 20.47"
Loading Capacity: 1,323 lbs.
Spindle Speeds: 12,000 Rpm
Spindle Motor Torque n/m: 24/15
Rapid Traverse XYZ, ipm: 1417-XY and 1181-Z
Cutting Feedrate ipm: 1-590
Tool Change Time: 1.3 sec
Magazine Capacity: 24 ( 30)
Tool Weight, Diameter, Length lbs. / in." 17.6"/3.15 dia. /11.8"
Dimensions: 102" x 81"
Weight: 12,500 lbs.
EQUIPPED WITH:

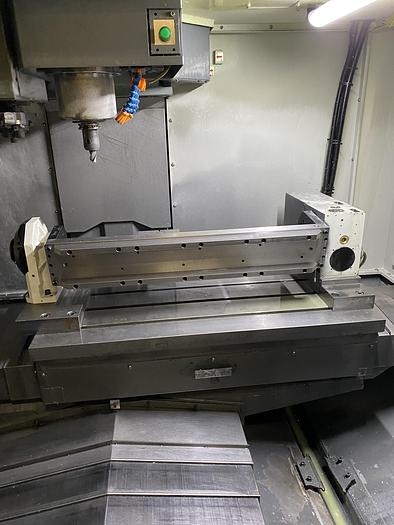

4TH Axis Table
