Very Low Use - approximately 28 hours of use
Main Dimensions
Height of centers above table 4"
Swing diameter in front of table 11.8" x 1.6"
Workpiece dia. approx. 4.7"
Length of Parts 9"
Grinding length (with 1 spindle) 4.7"
Transverse Axis X
Max. travel 17.7"
Max. speed 472 ipm
Resolution 0.000.004"
Longitudinal Axis Z
Max. travel 7.4"
Max. speed 472 ipm
Resolution 0.000,004"
Grinding Spindle Support
Spindle set-up Linear
Max. number of spindles 3
HF Spindle dia. 1.7"/2.4"/3.1"/3.9"/4.7"
Belt-driven spindle 3.1"
External grinding wheel 12"

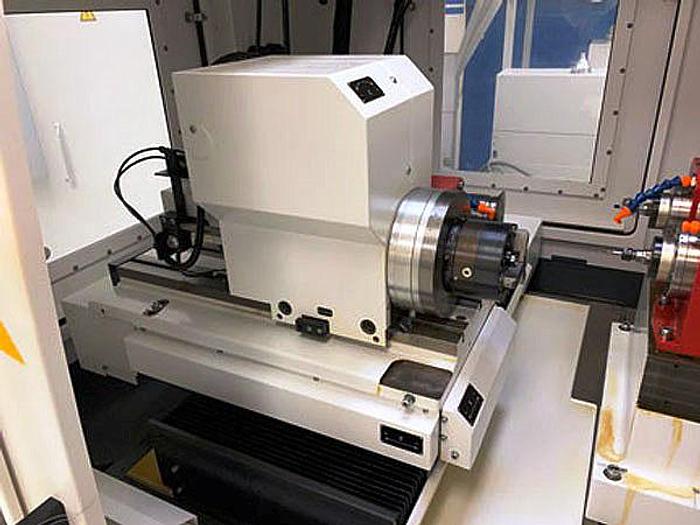

Workhead
Rpm range 1 - 1500 rpm
Fitting taper DIN/ISO 702-1 A2.4/MT5
Bar capacity 1.1"
Driving power 1.9 hp
Load on spindle nose 111 ft lbs
B-Axis setting angle (manual) +/- 2 deg (opt +21/31 deg)
C-Axis 0.0001 deg

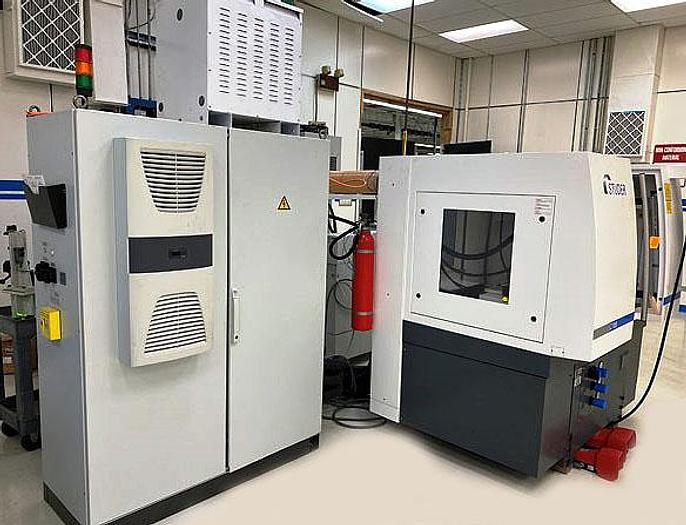

Control Unit
Fanuc Oi-TD / Fanuc 31i-A (with loader)
Connected loads
Total connected load 34 kVA
Air Pressure 71 - 145 psi
Total weight 5720 lbs

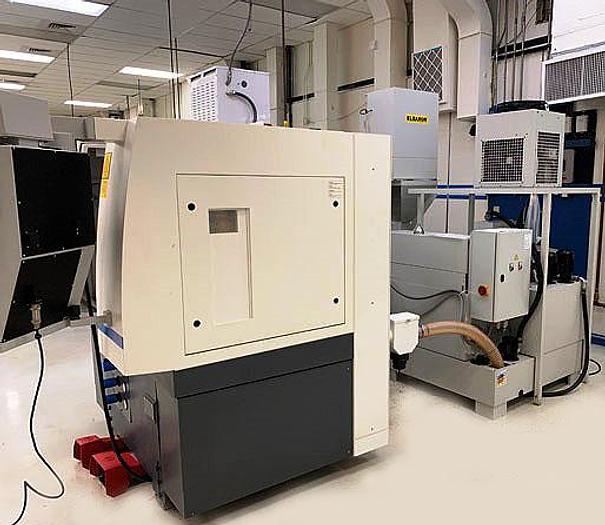

B- Axis & C- Axis capable
Rotary Wheel Dresser
Full Enclosure

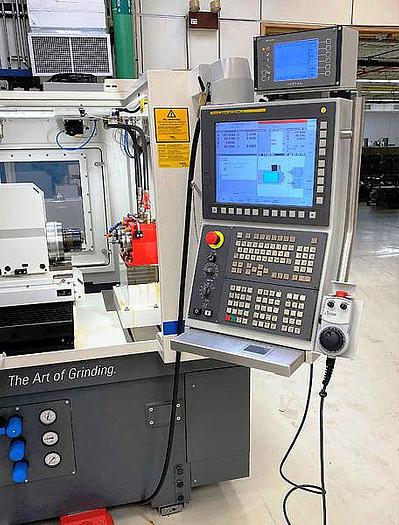

FANUC 31cA CNC control

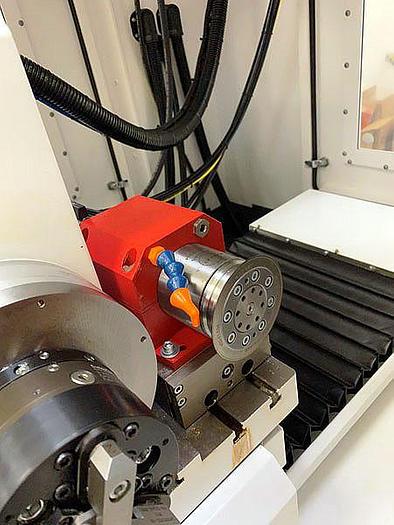

2 ID spindles
Coolant Tank & pump
