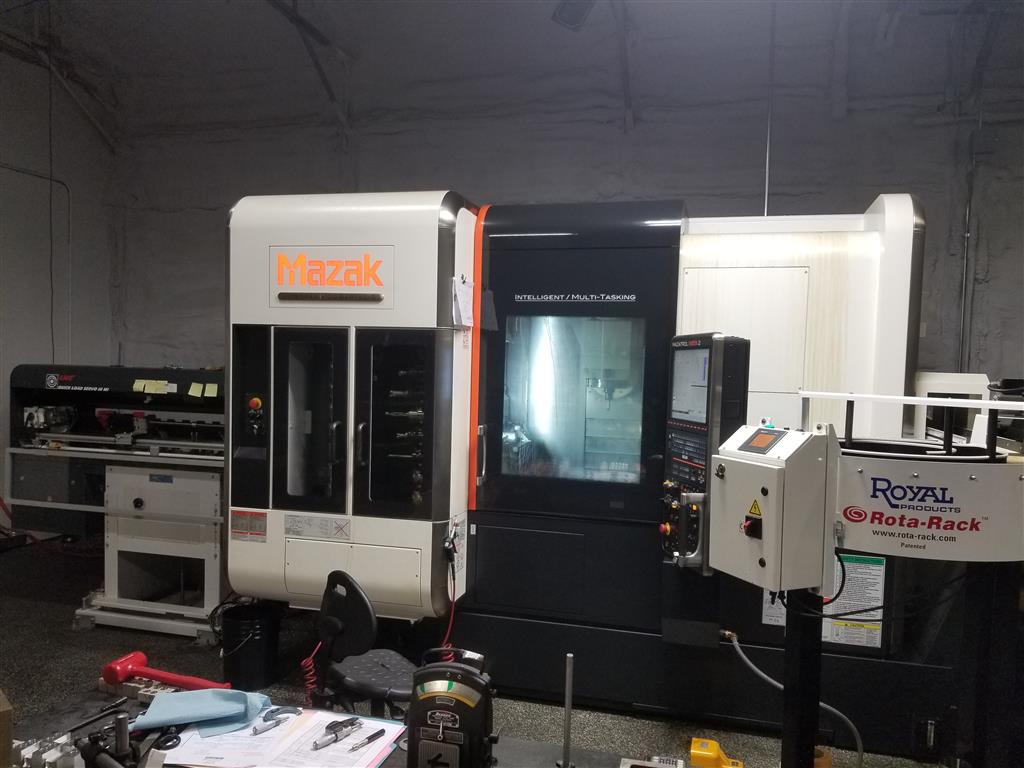

2015 MAZAK INTEGREX I-100 BARTAC-S TURNING CENTER, MACHINE # 7499

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images


Integrex i-100 Bartac-S
Lathes and Turning Centers CNC
Multi Axis Turning Center
used
(LB)
2015
$0.00

Feature Video

Description

Reference #:7499
Machine Type:CNC Lathes
Year:2015
Manufacturer:Mazak
Model:Integrex i-100 Bartac-S

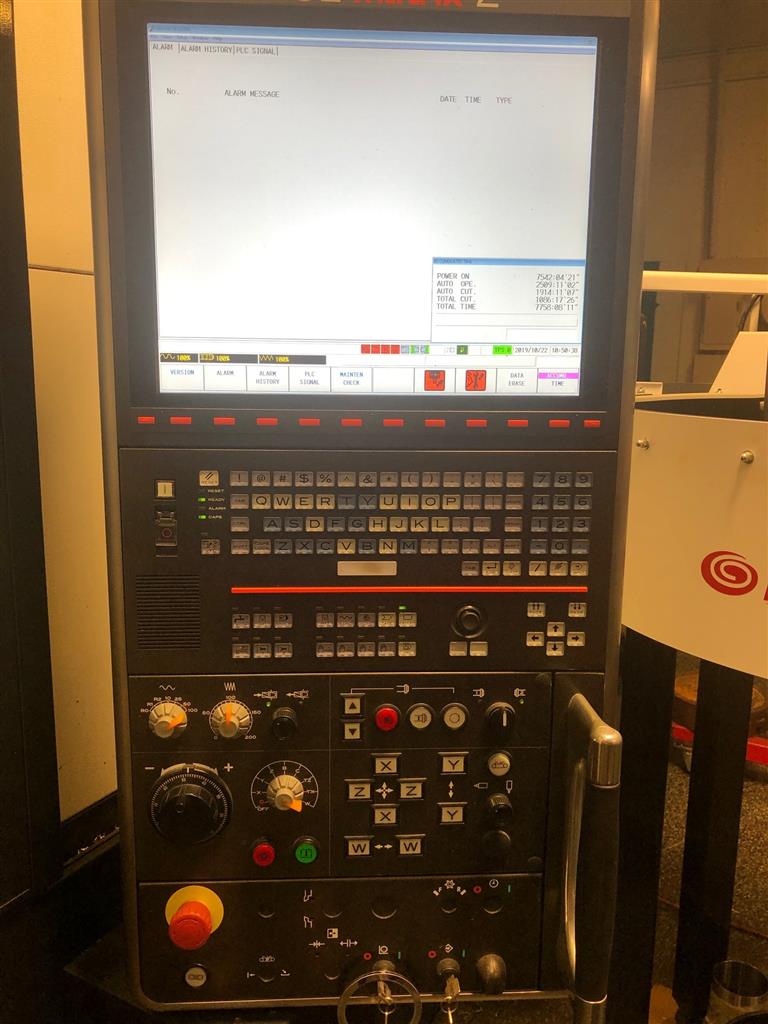

Control:Mazatrol SmoothX
Condition:Excellent
Under Power:No
Code:L2155
Location:New England Area, USA

Capacity:

  • Maximum Swing: 20.87"
  • Maximum Machining Diameter: 19.690"
  • Maximum Bar Work Capacity: 4.0"
  • Maximum Machining Length: 33.620"

Main Spindle:

  • Chuck Size: 8"
  • Maximum Speed: 2000 rpm
  • Motor Output (30 minute rating): 15.0 hp

Second Spindle:

  • Chuck Size: 6"
  • Maximum Speed: 6000 rpm
  • Motor Output (30 minute rating): 15.0 hp

Milling Spindle:

  • B-Axis Travel: 240 degrees
  • Magazine Capacity: 72
  • Maximum Speed: 12000 rpm
  • Motor Output (20 ED Rating): 10 hp

Feed Axes:

  • Travel (X Axis): 17.72"
  • Travel (Y Axis): 8.27"
  • Travel (Z Axis): 35.59"

Machine:

  • Foot print: 127" x 103.8”

Equipped With:

  • Mazatrol Matrix 2 Control with Mazatrol SmoothX
  • Intelligent Bar Loader System
  • Renishaw probe

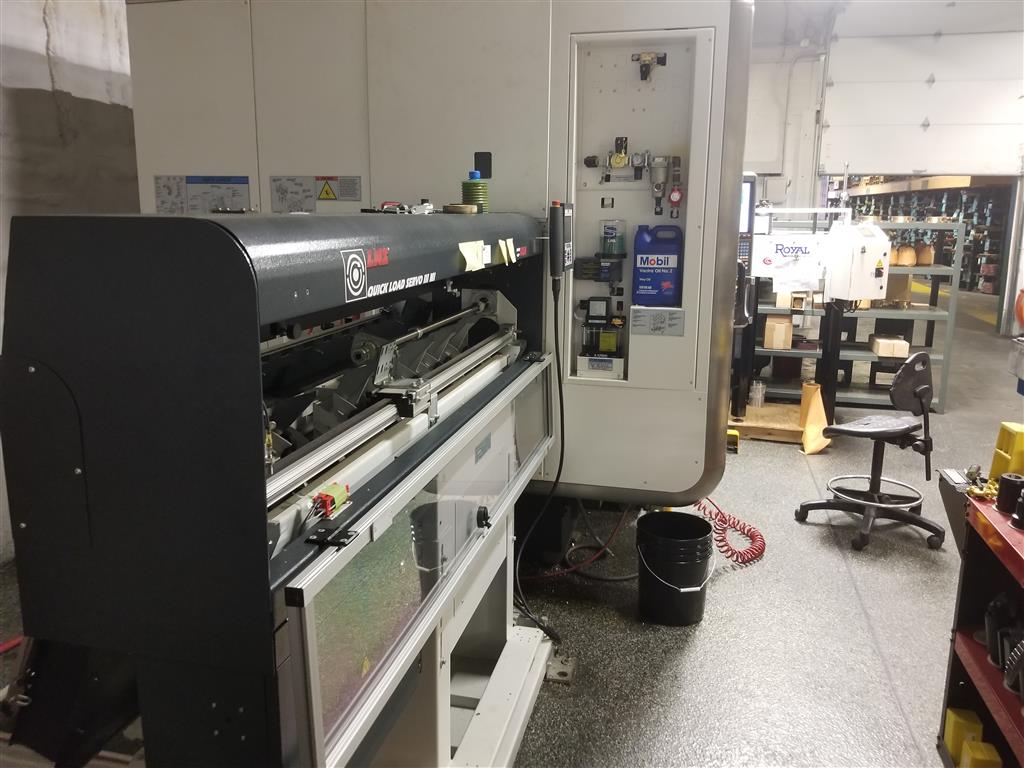

  • LNS Quick Servo III MI Bar Feeder

Comments:

  • Power On 7542 Hours
  • Auto Cut 1914 Hours
  • Total cut 1086
  • Totat time 7758
  • Installed new in 2015 cost was over $ 500K

Video:

  • https://youtu.be/5CBUsUKU6oU
