2015 HAAS ST-35Y CNC LATHE CNC LATHES

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images


ST-35Y
Lathes and Turning Centers CNC
Slant Bed Turning center
used
14300 (LB)
2015
$0.00

Description

Overview:

Type: CNC Lathes

Category: CNC Lathes & Turning Centers

Manufacturer: HAAS

Model: ST-35Y

Condition: Used - Excellent

Year: 2015

Stock #:8316

Status: For Sale

Description:

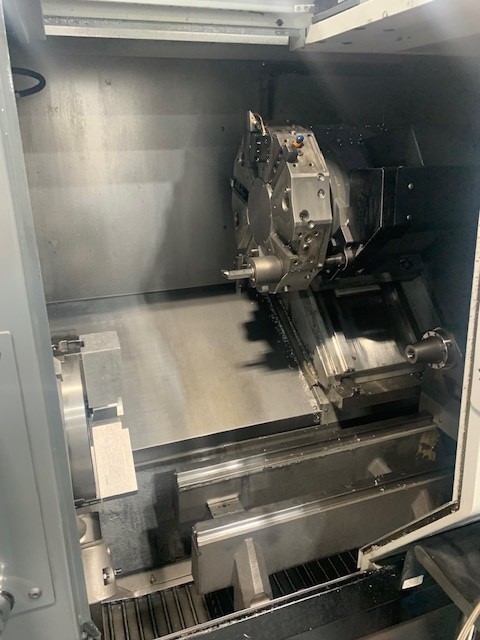

Haas ST-35Y Multi Axis CNC Lathe 2015 – 4 in bar cap

Equipped With:

Gear Box

Belt Type Chip Conveyor

Tool Presetter

Tailstock

6000rpm Live Tooling

Y Axis

High Pressure Coolant 300PSI

Parts Catcher

Specifications:

Swing 31.75 in

Machining Length 23 in

Chuck Size 12 in

Bar Capacity 4 in

Power 40 hp

Max RPM 3,200 RPM

Turning Dia 18 in

Tailstock No

Live Tooling Yes

Dimensions 171 in x 90 in x 98 in

Weight 14,300 lbs .

Bar Capacity: 4 in

Chuck Size: 12 in

Spindle Speed: 3,200 RPM

Spindle Motor: 40 HP

X Axis Travel: 12.5 in

Z Axis Travel: 23 in

Y Axis Travel: +2, -2 in

Live Tooling: 4,000RPM

Rapid Rate Z Axis: 945 IPM

Turret Tools: 12 Station

Rapid Rate X Axis: 472 IPM

Max Turning Dia: 13.75 in

Max Turning Length: 23 in

Max Swing: 31.75 in

Max Thrust X 4100 lbf

Max Thrust Y 2300 lbf

Max Thrust Z 5100 lbf

Max Torque 425.0 ft-lbf

Spindle Nose A2-8

Dimensions: 171 in x 90 in x 98 in

Weight: 14,300 LBS
