Description:
Haas DS-30SSY Dual Spindle, Live tool, "Y" axis
Haas, Dual spindle, 5 axis Live tooled, "Y" axis, "C" axis,

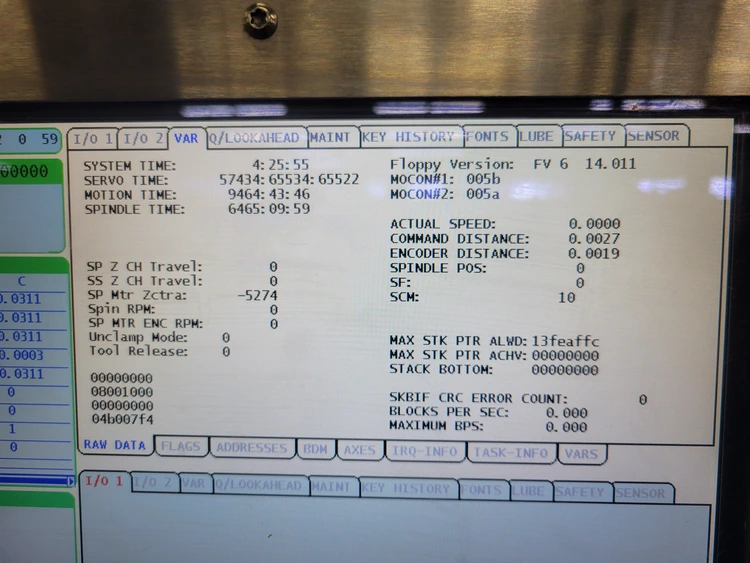

9464 Motion hours
Overview:
Type: Multi-Axis CNC Lathes
Manufacturer: HAAS
Model: DS-30SSY
Condition: Excellent
Year: 2015
Stock #: 8454
Status: For Sale
Equipped With:

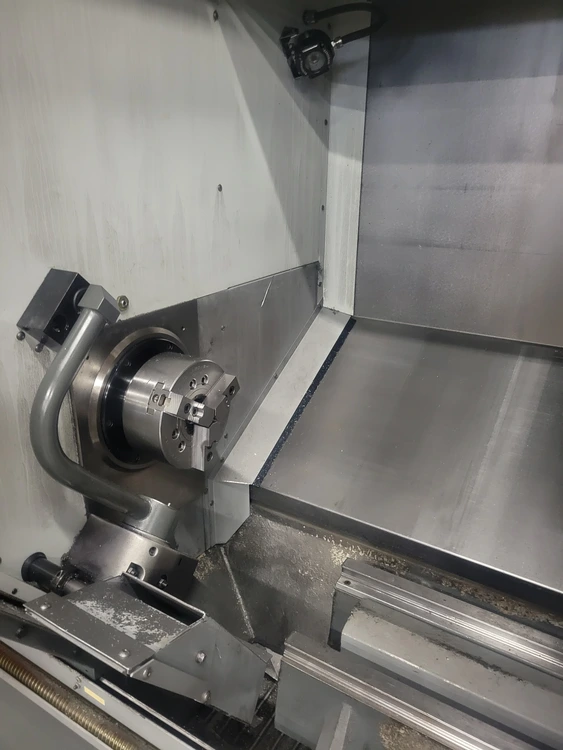

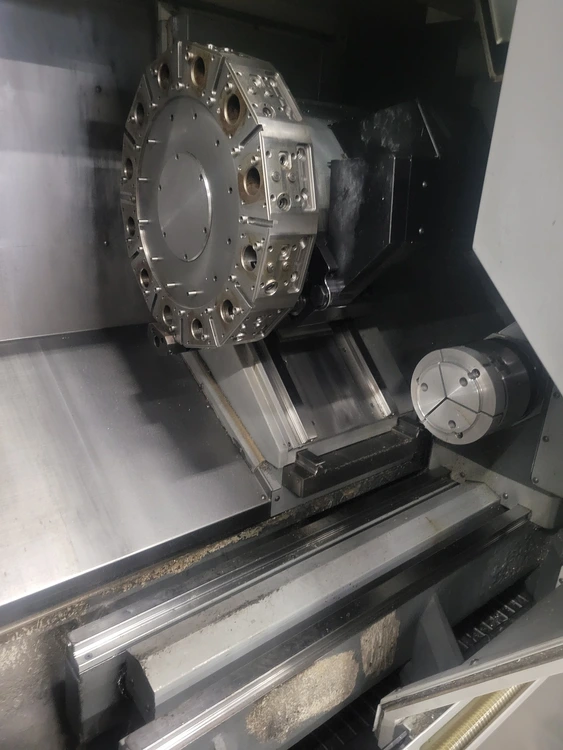

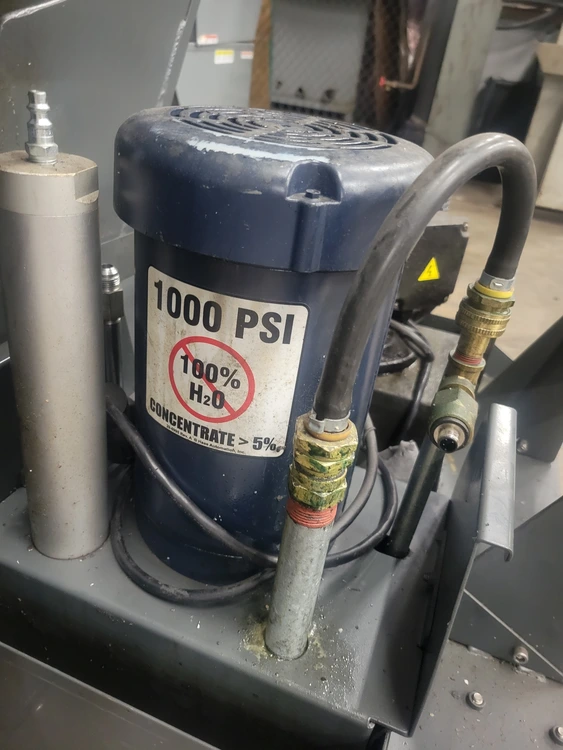

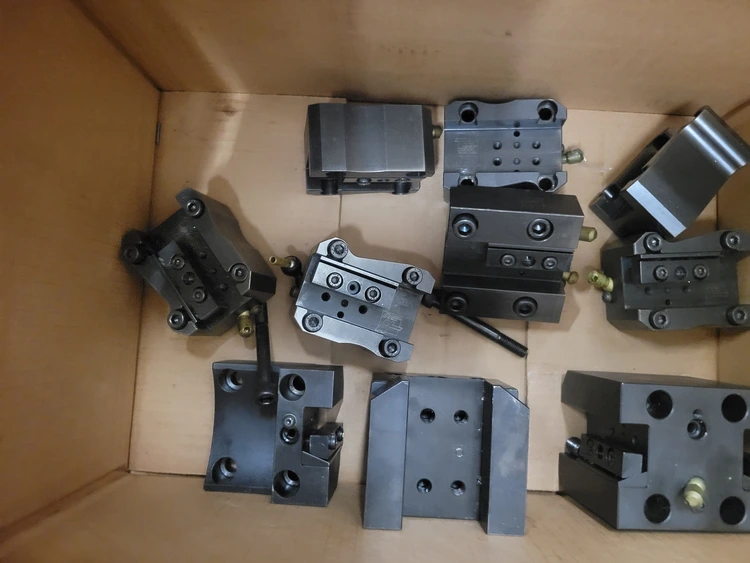

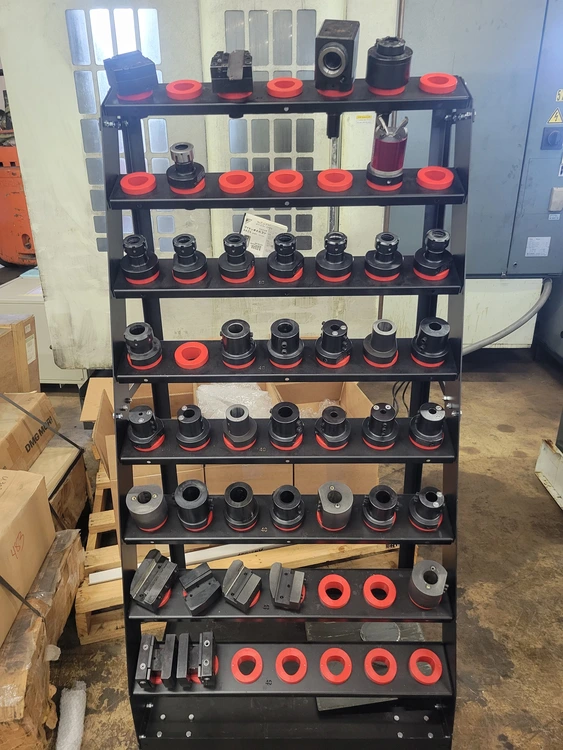

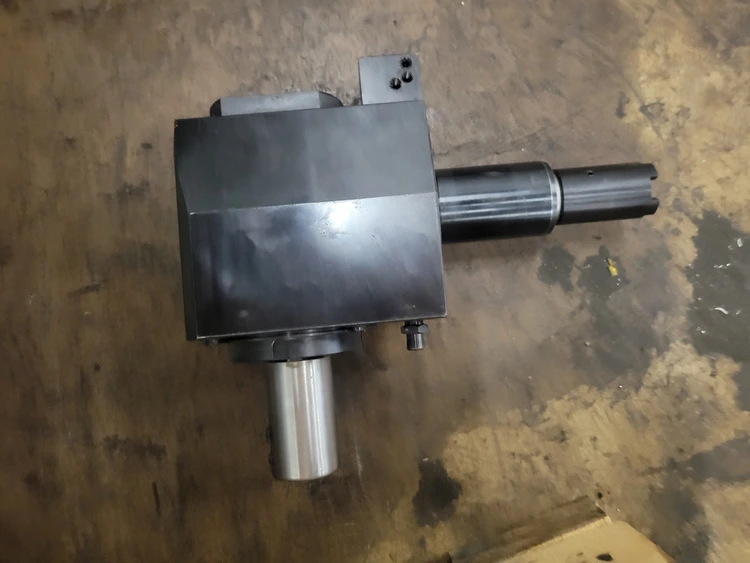

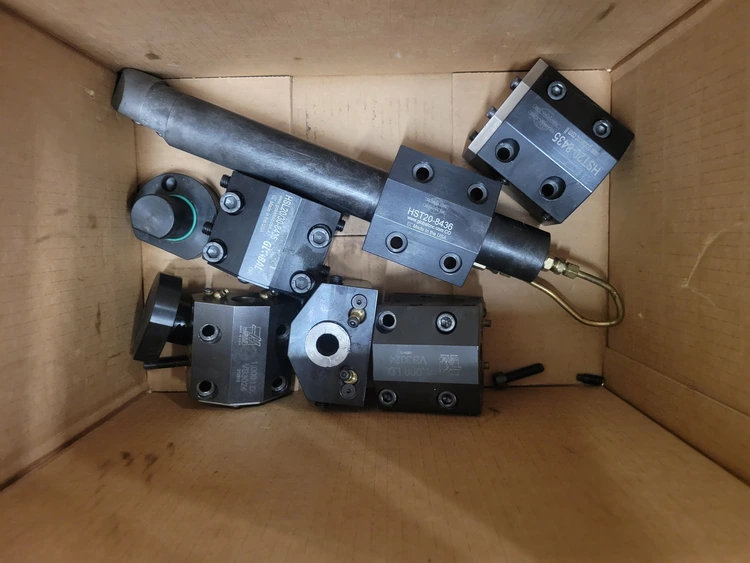

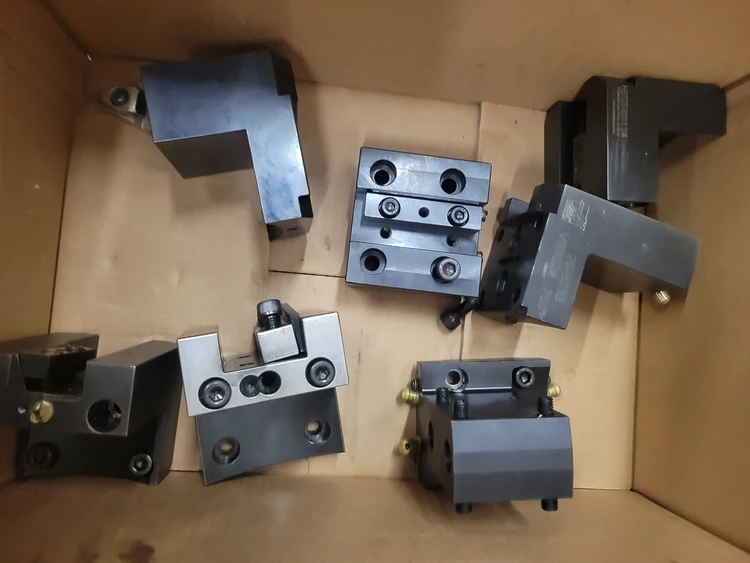

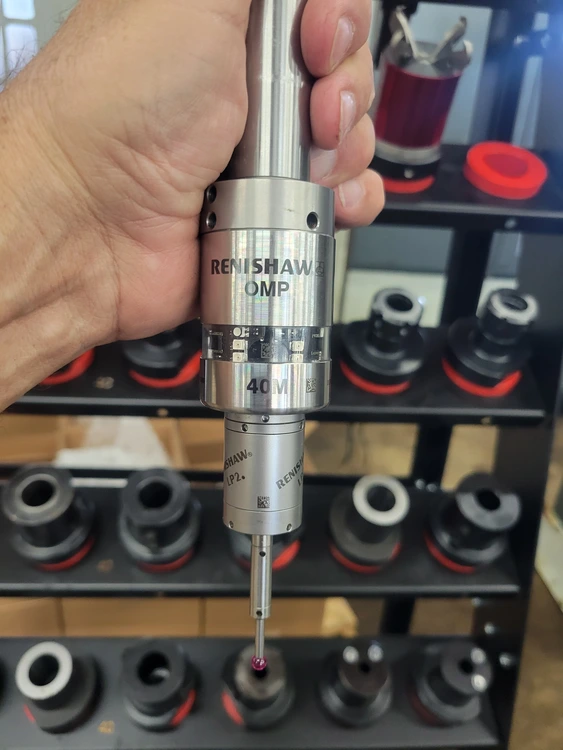

main and Sub Spindle with 6" Chucks, 2 Live tool holders, Several Block and VDI tool holders, 24 staion Hybrid turret, A2-6 main and A2-5 Sub spindle noses, 30 HP main and 20 HP sub spindle motors, 6,000 RPM Live tools, 4,800 RPM Main and Sub spindles, Rigid tapping, Ethernet, Extended memory, Macros, High Voltage Transformer, Auto tool probe and Part probes, hard drive, 1,000 PSI coolant, EPFD= Early power failure detection

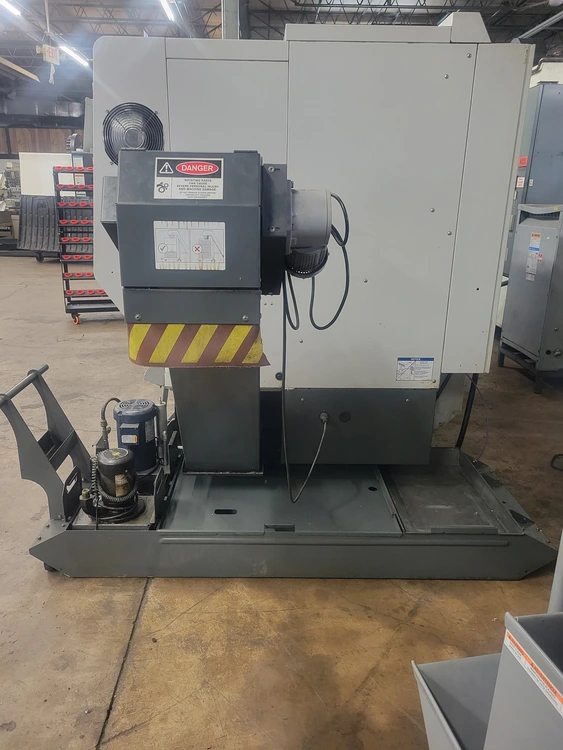

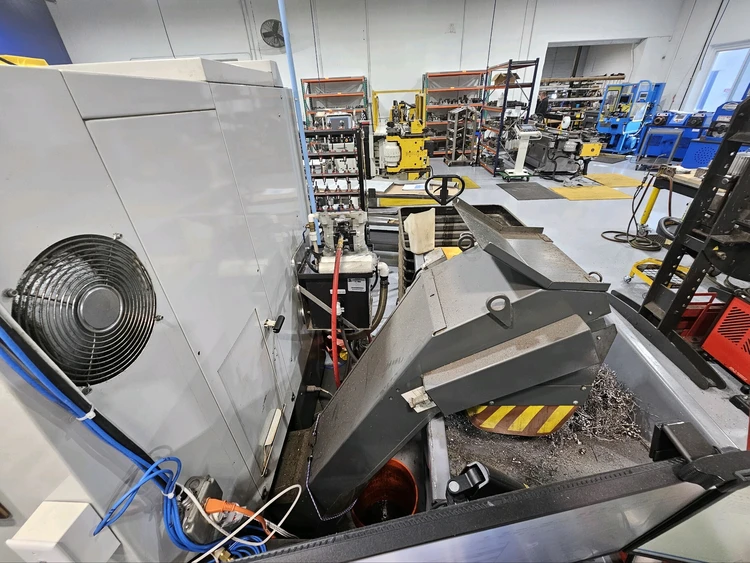

Parts Catcher, Bar puller and MORE
Specifications:
Swing 31.8"
Machining Length 23"
# Axis 4
Chuck Size 8.3"
Bar Capacity 3"
Power 30 hp
Max RPM 4,800 RPM
Turning Dia 18"
Tailstock No
Live Tooling Yes
Sub Spindle Yes
Control CNC (Haas)
Dimensions 130" x 90" x 83"
Weight 15,000 lbs.
Swing over apron 31.8"
Swing over cross slide 20.8"
Over second spindle 21.8"
Chuck Size 8"
Max. cutting diameter Varies with turret 18"
Max. cutting length 23"
Bar Capacity 3.0"
"X" axis travel 12.5"
"Z" axis travel 23."
Rapid on "X" 472 IPM
Rapid on "Y" 472 IPM
Rapid on "Z" 945 IPM
Spindle Nose A2-6
Max spindle speed 4800 RPM
Main spindle "C" axis .001 degree
Sub spindle nose A2-5
Sub spindle HP 20
Sub Spindle RPM 4800
Sub spindle bore 2.0"

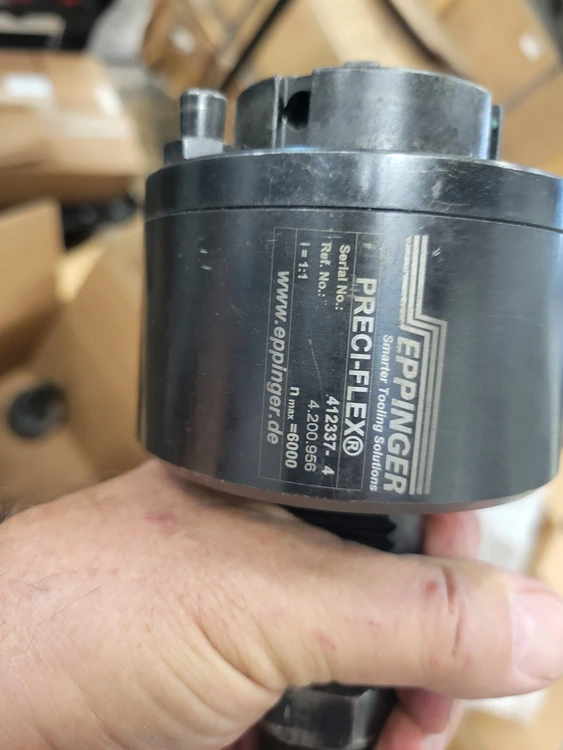

Live tooling Max speed 6,000 RPM
Tooling type BMT 65
drive ratio 1:1
