Puma MX2600ST
L2155
Lathes and Turning Centers CNC
Combination NC, CNC Lathe.
used
(KG)
2015
$0.00

Description

Capacity:

  • Swing over bed: 39.3\"
  • Swing over carriage: 27.56\"
  • Maximum bar capacity (2.95 in right spindle w/work ejector): 3.00 in
  • Maximum turning diameter, main spindle: 29.9\"
  • Max. weight (including chuck) chuck work/shaft work: 463 / 2,006 lbs.
  • Maximum turning length: 60.6 in
  • Distance between spindle noses: 72.2 in

Spindles:

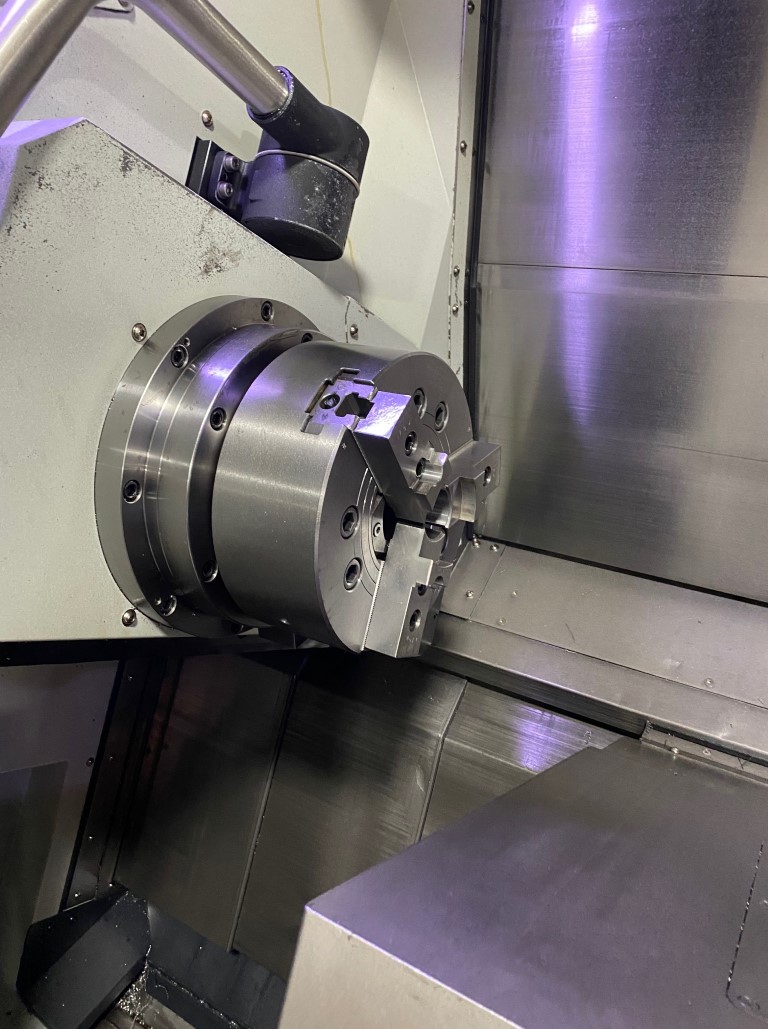

  • Chuck size: 10 in
  • Spindle speed: 4,000 RPM
  • Spindle nose: A2-8
  • Left spindle drawtube ID: 3.03 in
  • Right spindle drawtube ID: 2.95 in
  • Spindle bore diameter: 3.38\"
  • AC high torque spindle motor (30 min. rating): 35 HP
  • Maximum spindle torque (25% ED): 516 ft-lbs

Left/Right C-Axis:

  • Minimum programmable angle (degrees): .001
  • Rapid traverse rate (RPM): 400
  • C-axis repeatability: +/- .006 deg.
  • C-axis positioning accuracy: .0167 deg.

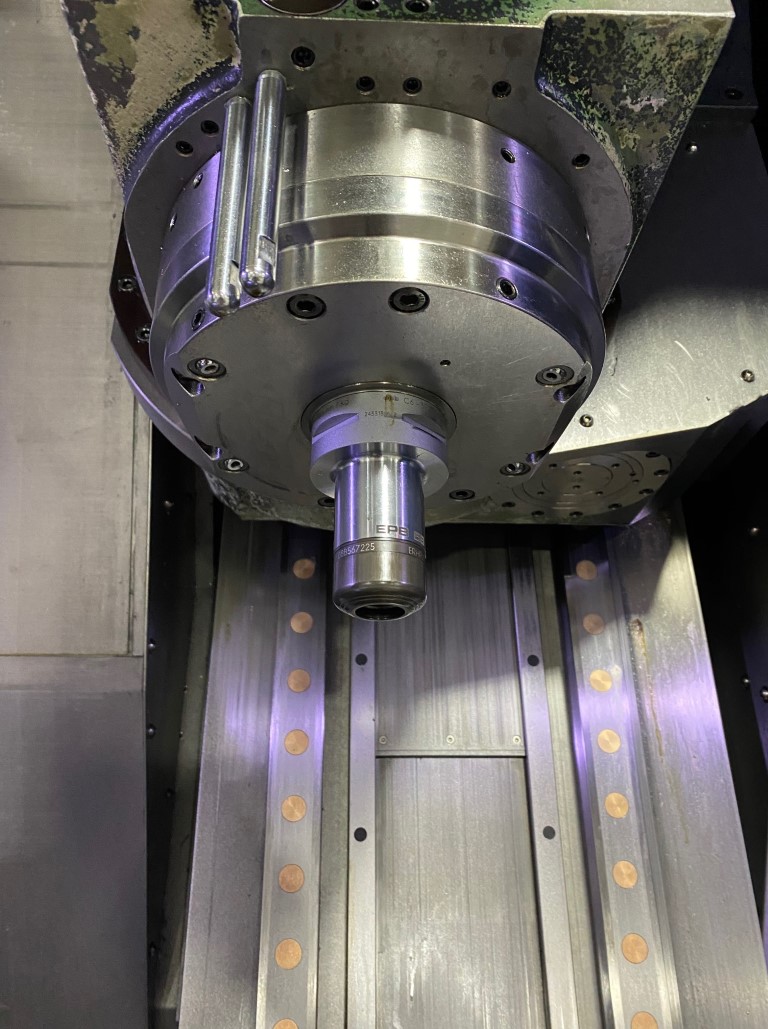

Milling Spindle:

  • Spindle speed: 12,000 RPM
  • Motor power (15 min. rating): 30 HP
  • Maximum spindle torque (15% ED): 87 ft-lbs
  • Tool index (2,3 or 4 insert multi-tools): 30 deg.
  • B-axis (tilt) coupling increment: 5 deg.
  • B-axis travel: 240 (+/- 120) deg.
  • B-axis minimum increment: 0.001 deg
  • B-axis positioning accuracy: 0.006 deg.
  • B-axis repeatability: +/- 0.002 deg.

Travels:

  • X1 (upper) axis travel: 24.8 in
  • X2 (lower) axis travel: 8.66 in
  • Z1 (upper) axis travel: 62.4 in
  • Z2 (lower) axis travel: 59.6 in
  • Angle of slant bed: 60 degrees
  • X1 axis rapid traverse rate: 1,417 IPM
  • 417 IPM Z1 axis rapid traverse rate: 1,417 IPM

Y-Axis:

  • Y-axis travel: 9.05\" (+/- 4.52\")
  • Y-axis rapid traverse rate: 1,024 IPM

ATC:

  • Tool holder type: CAPTO-C6
  • Tool storage capacity: 40 (Opt. 80)
  • Max. tool diameter: 3.54 in
  • Max. tool diameter w/o adjacent tools Max. tool diameter w/o adjacent tools: 5.12 in
  • Max. tool length: 15.74 in
  • Max. tool weight: 22 lbs.
  • Tool change time (tool to tool): 1.8 Seconds

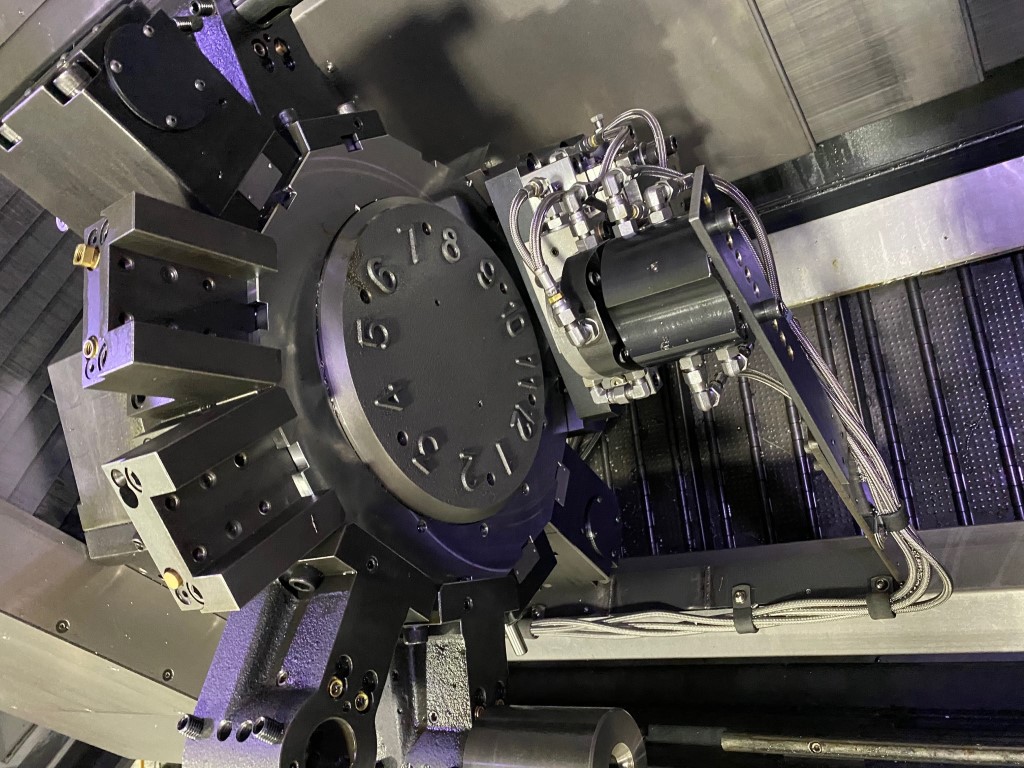

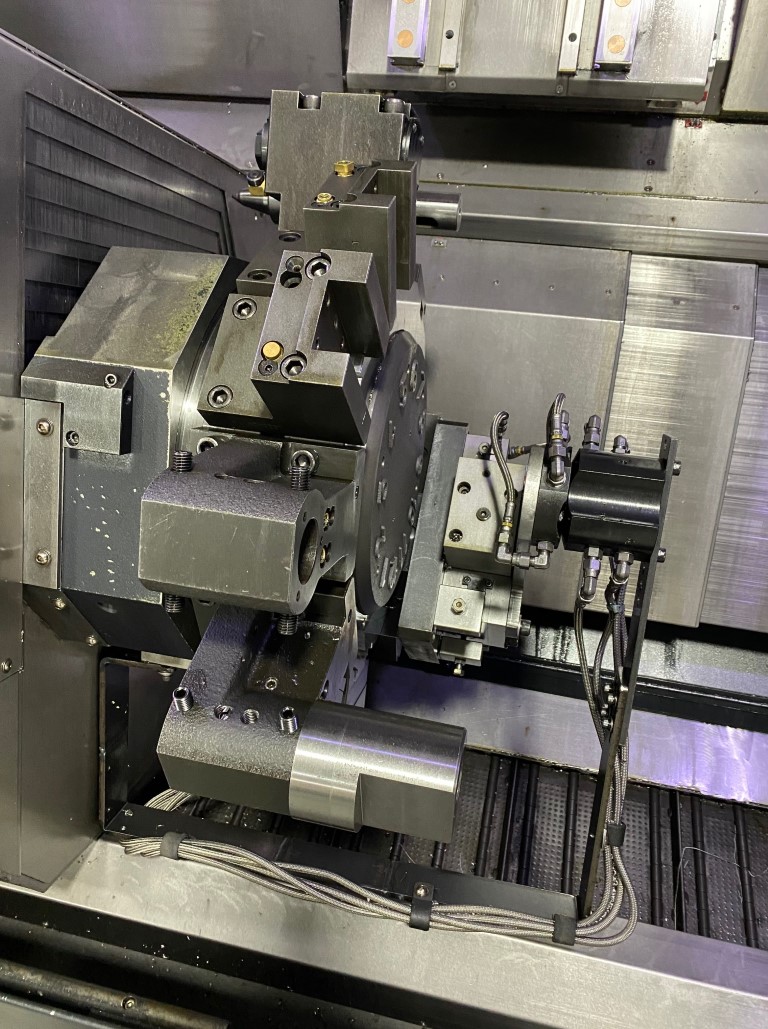

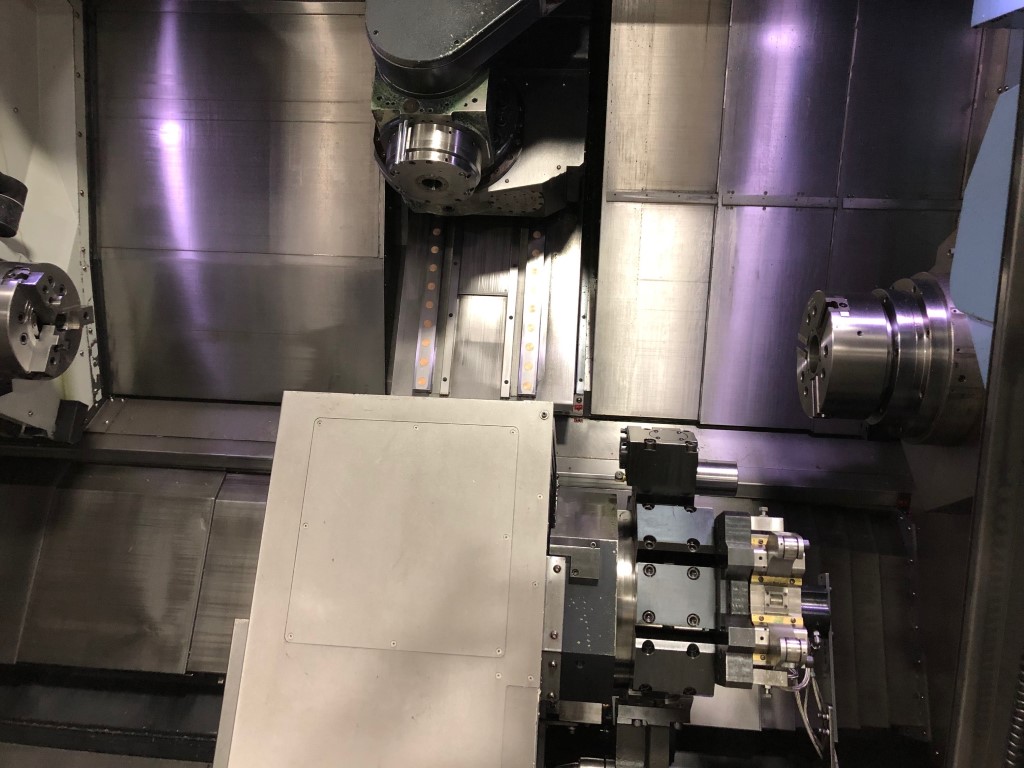

Turret - Lower:

  • Number of tools: 12
  • Tool holder type: BMT 65P

Live Tools Lower:

  • Rotating tool RPM: 4,000 RPM
  • Rotating tool spindle motor (continuous): 6.7 Hp
  • Rotating tool torque (continuous): 12.5 ft-lbs

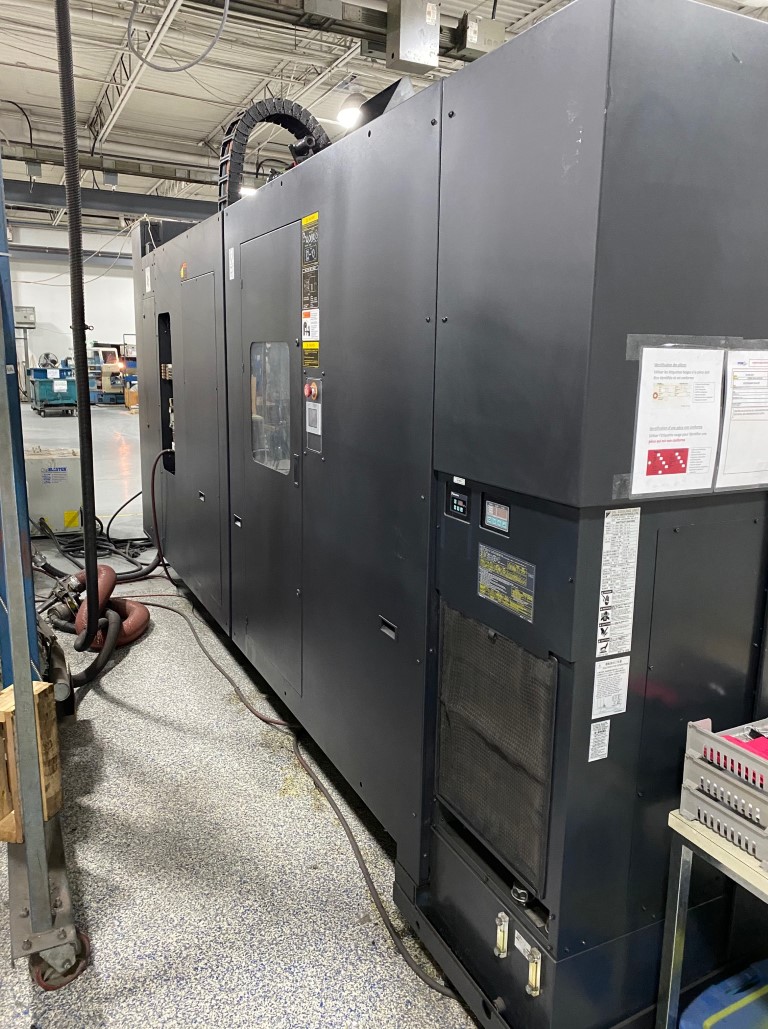

General:

  • Floor Space (L x W): 239\" x 103\"
  • Length with hinge belft chip conveyor: 263\"
  • Machine Height: 119\"
  • Net Weight: 34,170 Lbs
  • Voltage: 205 - 235 V / 3 Ph
  • Power Requirement (262 Amps @ 220 Volts): 100 kVA

Equipped With:

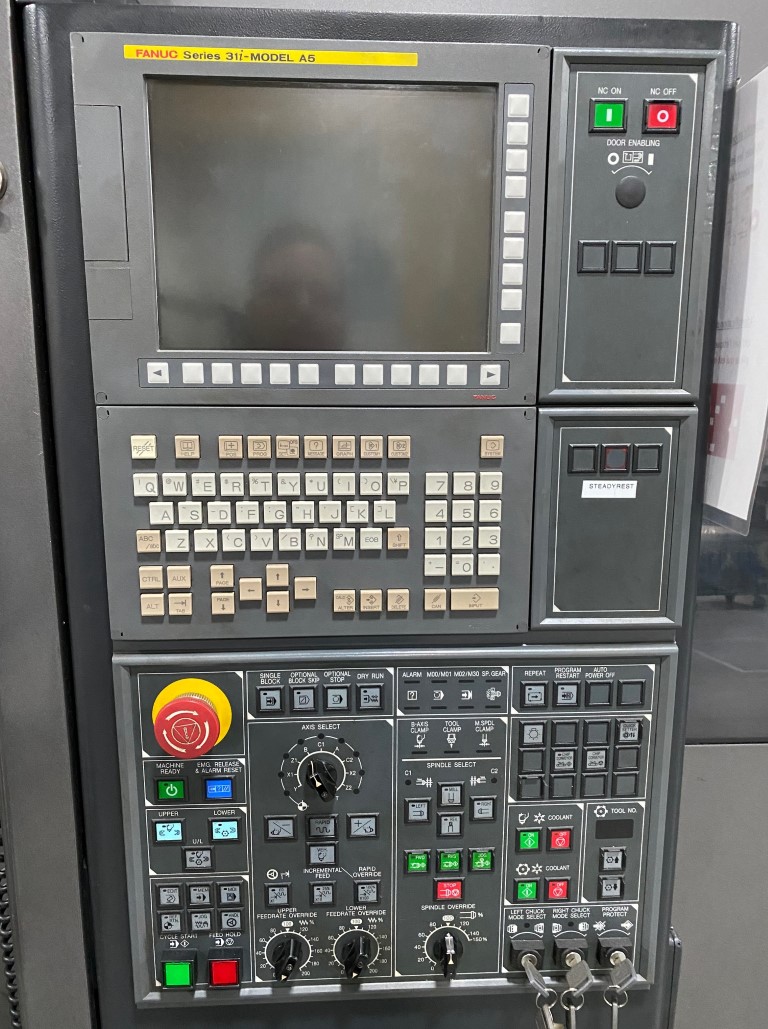

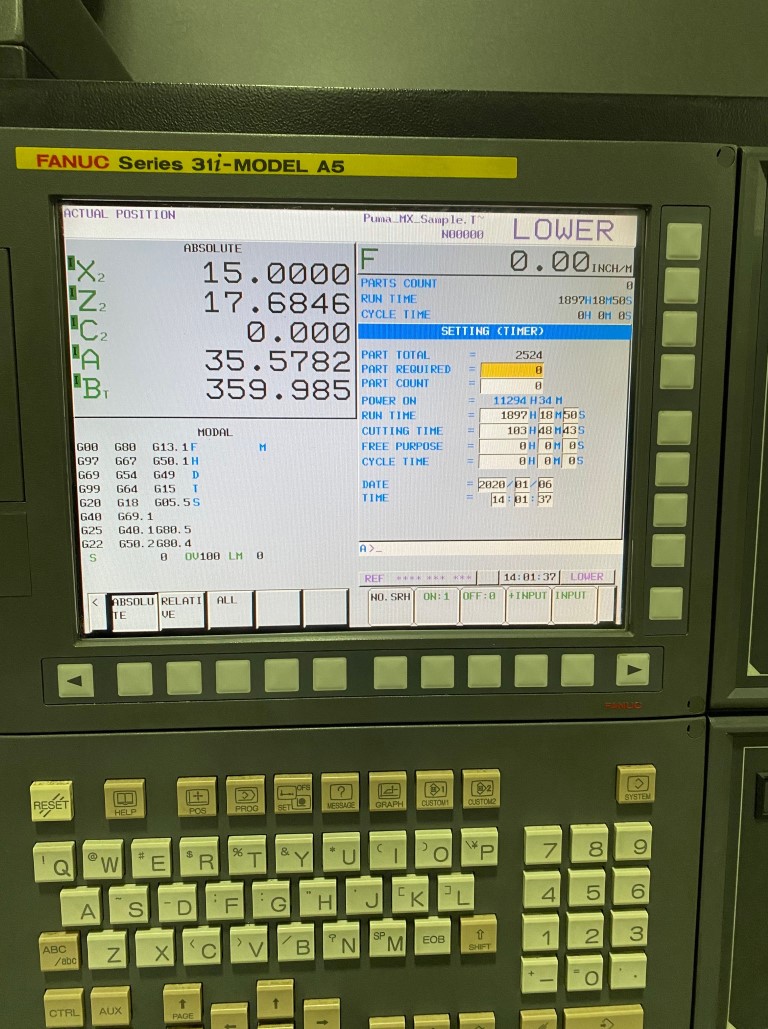

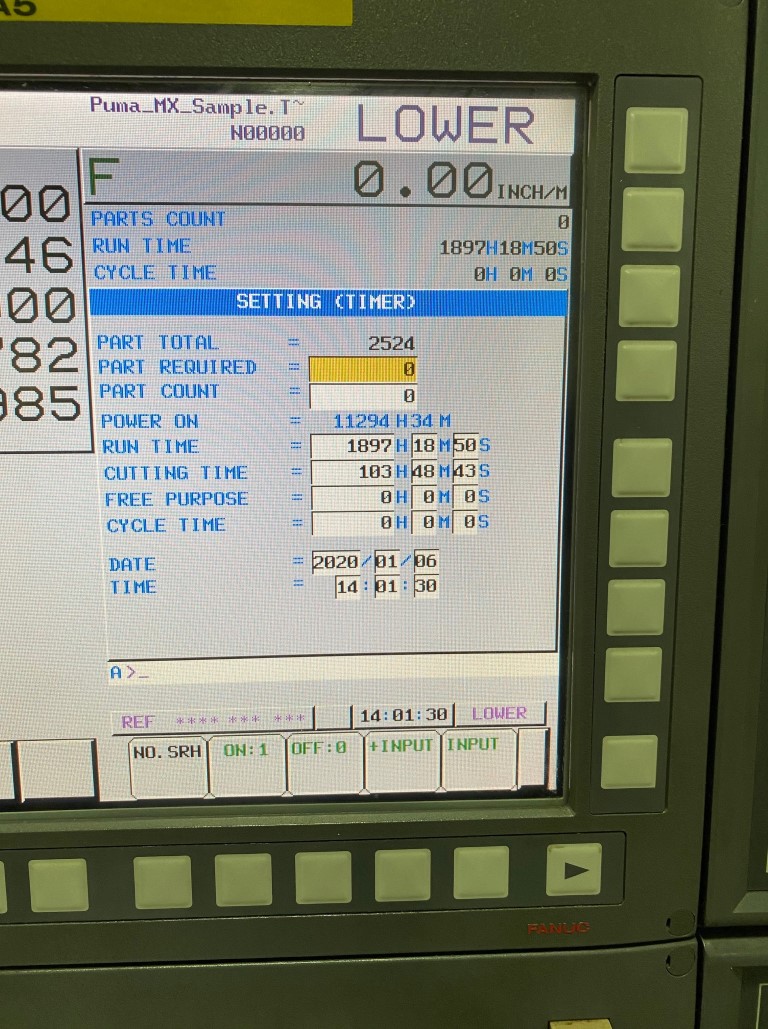

  • Fanuc 31i Model A5 Dual Pathe Control
  • High speed 4,000 RPM spindles
  • Powerful (26kW) 35 HP high-torque integral spindle motors
  • Refrigerated temperature control system for both spindles
  • Large (76mm) 3 in bar capacity
  • Milling, drilling, and tapping capabilities
  • Servo Driven 40 station ATC with 1.8 sec tool to tool time
  • Fast 12,000 rpm milling spindle
  • (22kW) 30 Hp milling spindle motor
  • Y-axis with (230mm) 9.05 in stroke
  • Thermal Growth Compensation
  • BT-axis (tilting) 240 degrees
  • Roller gear cam (RGC) type B-axis gear train
  • 12 Station lower turret with rotary tool capability
  • Base mounted tooling (BMT) system on lower turret
  • Full contouring C-axis
  • Rigid tapping on left and right spindles, milling spindle and rotary tools
  • Tool monitoring system - wear and breakage detection
  • Pretensioned X and Z axis ball screws
  • Fast (36m/min) 1,417 IPM rapid traverse
  • Electric torque limiter crash protection
  • Automatic tool setter

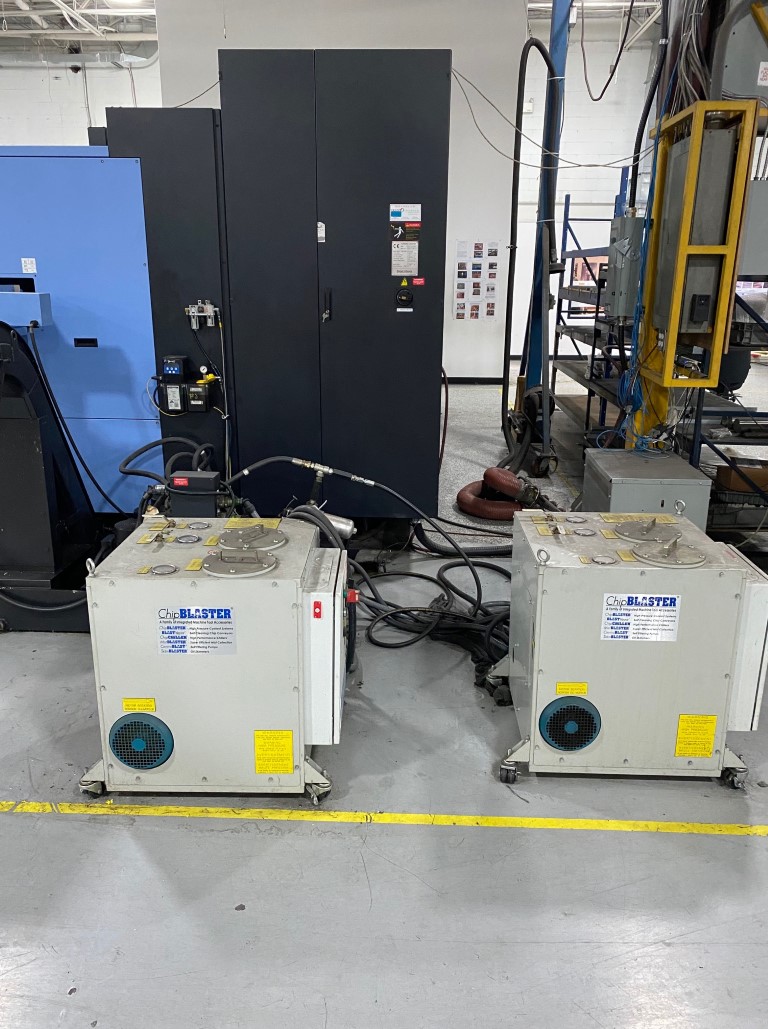

  • Separate coolant tank
  • Large (760mm) 29.9 in maximum turning diameter
  • (10 bar) 145 PSI coolant pump for milling head
  • Way lube separation system
  • Right spindle body positioning by ball screw & servo motor
  • Right spindle can be synchronized with left spindle
