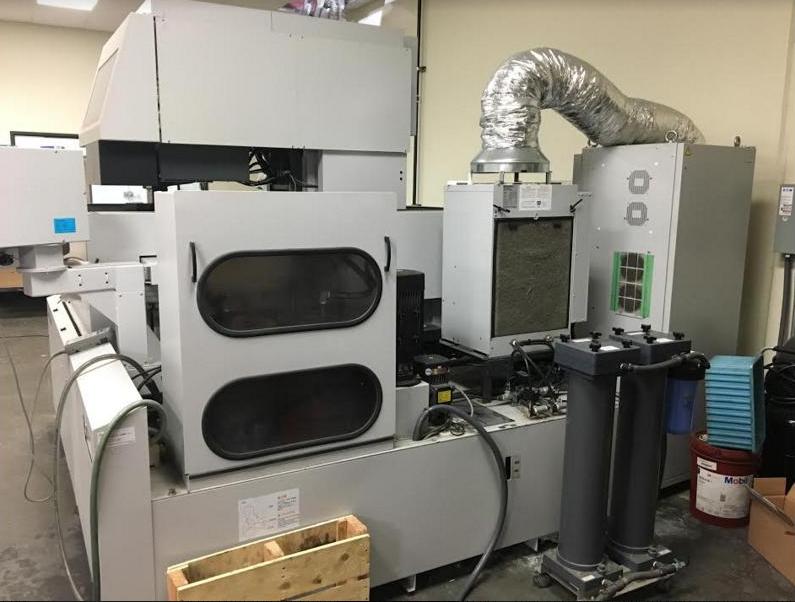

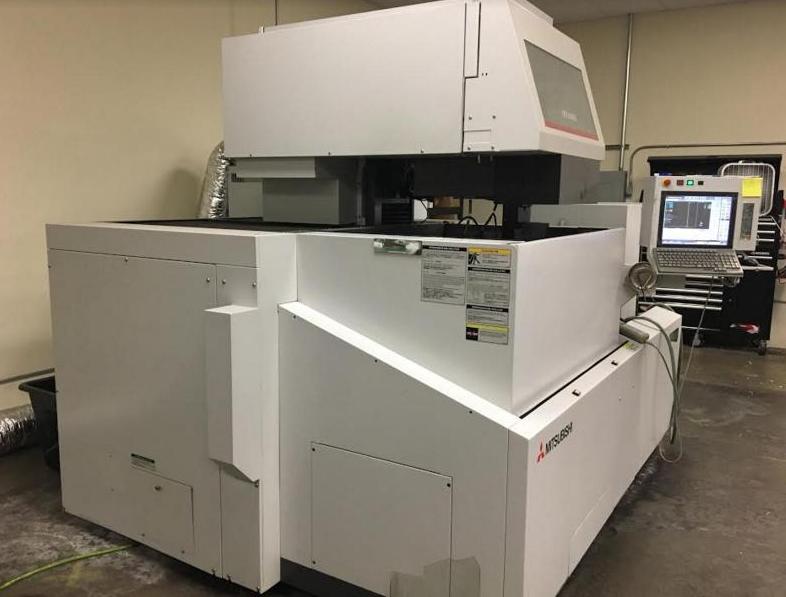

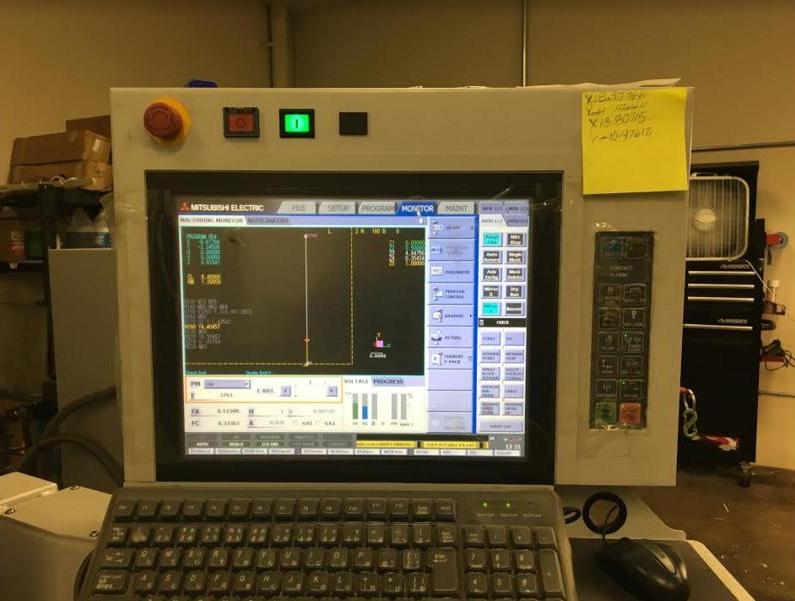

2014 MITSUBISHI MV 2400ST EDM MACHINE # 7568

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


MV 2400ST
---Unknown---
Unknown
used
8047 (LB)
2014
$0.00

Description

Reference #:7568
Machine Type:EDM
Year:2014
Manufacturer:Mitsubishi
Model:MV 2400ST
Control:
Code:E2475
Location:

Table:

  • Table Length: 33.1 in
  • Width: 25.2 in

Travels:

  • X-Logitudinal: 24 in
  • Y-Cross: 16 in
  • Z-Vertical: 16.5 in
  • Taper U-V Travel: +/- 3.0 in
  • Taper Angle: 15 Degrees @ 10.2 in

Tank:

  • Capacity: 259 Gallons

Wire:

  • Wire Diameter Range: 0.004 in To 0.012 in

Workpiece:

  • Max Workpiece Dimension: 41.3 in X 32.3 in X 16.5 in
  • Max Submerged Workpiece Weight: 3,307 Lbs

Dimensions:

  • Overall dimensions: 105 in X 119 in X 84 in
  • Weight: 8,047 Lbs

Equipped With:

  • 4.5 in of Additional Z-Travel/Workpiece Height
  • Ball Screw Driven U & V Axes
  • (1) Piece table construction

Comments:

  • 3500 Hours
  • 25% taller than the standard model
