Reference #: 8540
Machine Type: CNC Lathes
Year: 2014
Manufacturer: Hurco
Model: TM8
Control: Hurco Max
Condition: Used - Very Good
Under Power: Yes
Code: L2150
Capacity:
Chuck Size: 8"
Swing Over Bed Ways: 21.6"
Swing Over Cross Slide: 12.6"
Max. Turning Diameter: 12"
Max. Turning Length: 18.8"
Distance Between Centers: 23"
Spindle:
Speeds: 4,800 RPM
Bore: 2.44"
Bar Capacity: 2.04"
Nose: A2-6
Main Motor: 15 HP
Turret:
Number of Positions: 10
X-Axis Travel: 8"
Z-Axis Travel: 20"
X-Axis Rapid Traverse Rate: 750 IPM
Z-Axis Rapid Traverse Rate: 945 IPM
General:
Electrics: 230 / 3 / 60
Dimensions:
Approximate Dimensions (LR x FB x H): 116" x 91" x 80" H
Floor Space (L x W x H) w/chip conveyor: 148" x 66" x 75"
Floor Space (L x W x H) w/cabinet doors open: 148" x 83" x 75"
Approximate Shipping Weight: 8,500 Lbs
Equipped With:

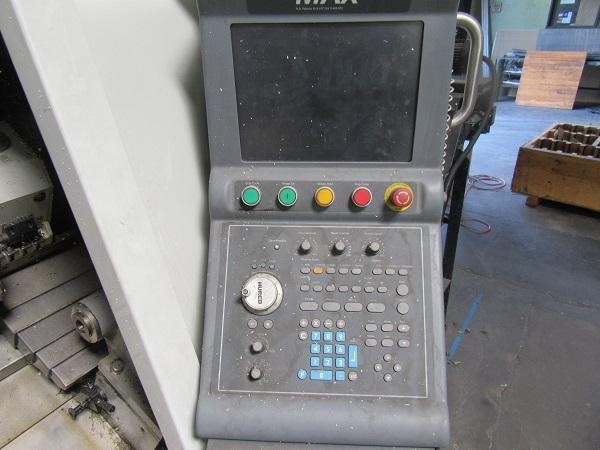

Hurco Max Control

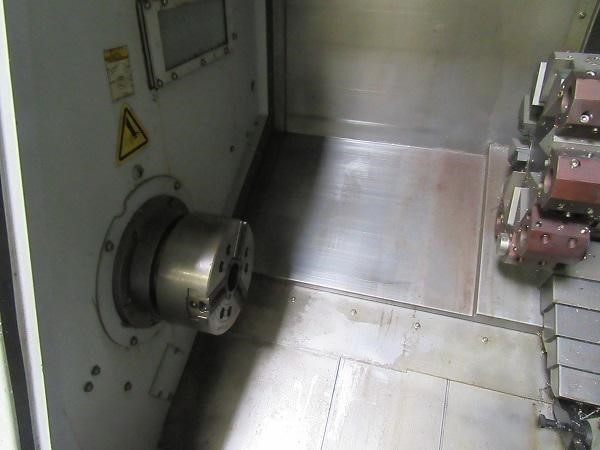

8" Diameter 3-Jaw, Hydraulic Chuck
Tailstock
Coolant System
Chip Conveyor
Comments:
This is a low hour machine purchased new about 8 years ago.
Beautiful condition, under power and available for inspection in California
