Description

Reference #: 6401

Machine Type: CNC Verticals
Year: 2014
Manufacturer: Haas

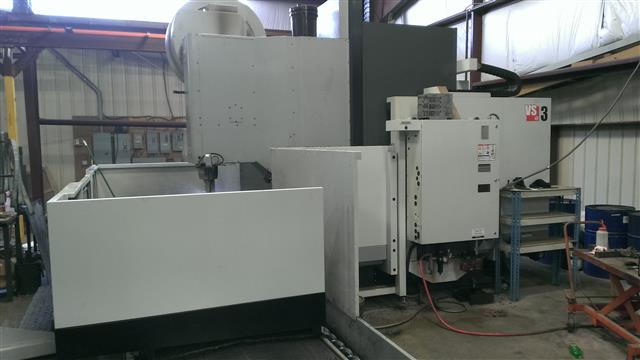

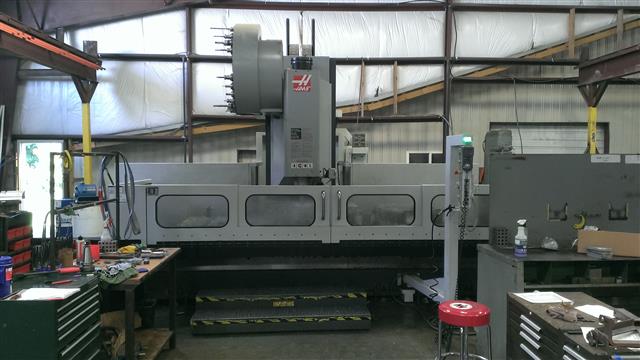

Model: VS3
Control: Haas 32 BIT
Condition: Good
Under Power: Yes
Code: M0185
Table:
Table Size: 146" x 40"
Maximum Table Load: 10000 Lbs

Travels:
X-Axis Travel: 150"
Y-Axis Travel: 50"
Z-Axis Travel: 50"

Spindle:
Spindle Speeds - Maximum: 7500 RPM
Spindle Taper: CT 50 Taper
Main Motor (30 min. / cont.): 30 HP
Tool Changer:
Tool Changer Positions: 30+1 ATC
Rapids:
Rapid Traverse (XY/ Z): 500 /710 IPM
General:
Floor Space Required (L x W): 31 ft x 17 ft

Equipped With:
2-Speed Geared Head

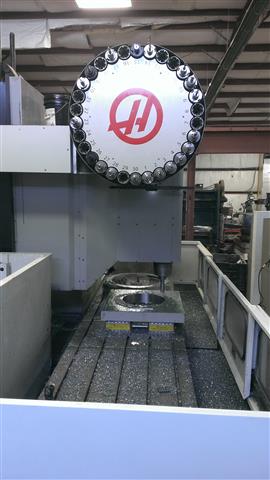

30 Position Side-mount tool changer
Remote Jog Handle, Color LCD
X-axis linear scales
Intuitive Probe System
Through Spindle Coolant
Rigid Tapping
95-Gallon Coolant Tank

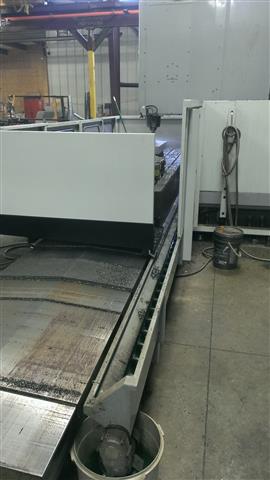

Chip Auger
Programmable Coolant Nozzles
Intuitive Probing, Renishaw
Expanded Memory

Comments:
Power On - 10,219 hours
Cycle Start - 4186 hours
Cutting - 3564 hours
Machine cost when new was $404,000
Machine build new was completed in Feb. 2014 - current owner took delivery
several months later.
Here are irepairs that have been made to this machine:
1. new rails skates - not sure haas says they just wear some times
2. Encoder - has a coolant leak that messed up
3. Counter balance cylinder has very very slow leak we have the guage
to fill maybe once a year

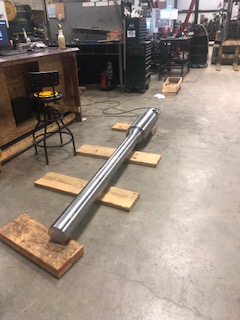

4. New spindle not sure why bearing locked up. We had it rebuilt by Setco
in Cincinnati
5. One of the chip auger motors is out. We just didnt fix it - it works fine
6. Tool setter is out being repaired by Renishaw. It just did communicate.
Probe works great.
I want to be completely honest and up front because I would like to be treated
the same.
Machine has been a great machine and as anyone knows ALL machines has
some little issue over all we are selling because only 4% of our work is required
to go across this machine
We are planning to replace with smaller machines

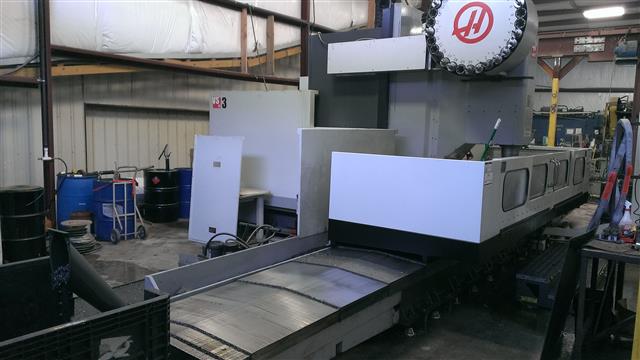

We have the guards we took off. It just easier putting big piece in it. The
coolant still stays contained.
