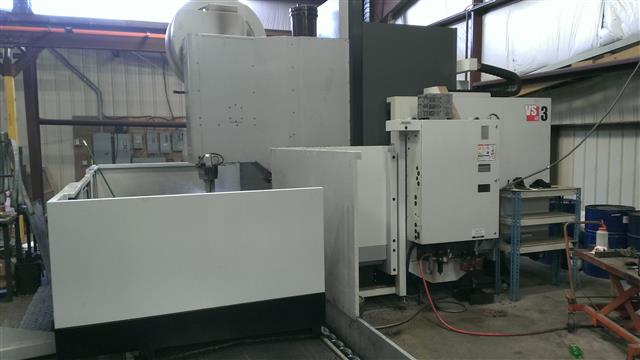

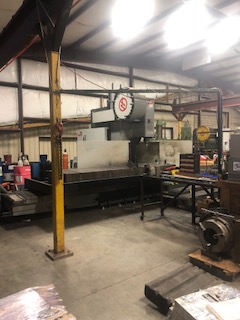

2014 HAAS VS3 VERTICAL MACHINING CENTER

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


VS3
M0185
Machining Centers Vertical Horizontal CNC
Vertical Machining Centers
used
(KG)
2014
$0.00

Description

Reference #:6401
Machine Type:
Year:2014
Manufacturer:Haas
Model:VS3
Control:Haas 32 BIT
Condition:Good
Under Power:Yes
Code:M0185

Table:

  • Table Size: 146" x 40"
  • Maximum Table Load: 10000 Lbs

Travels:

  • X-Axis Travel: 150"
  • Y-Axis Travel: 50"
  • Z-Axis Travel: 50"

Spindle:

  • Spindle Speeds - Maximum: 7500 RPM
  • Spindle Taper: CT 50 Taper
  • Main Motor (30 min. / cont.): 30 HP

Tool Changer:

  • Tool Changer Positions: 30+1 ATC

Rapids:

  • Rapid Traverse (XY/ Z): 500 /710 IPM

General:

  • Floor Space Required (L x W): 31 ft x 17 ft

Equipped With:

  • 2-Speed Geared Head

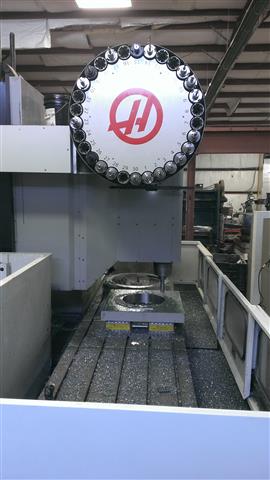

  • 30 Position Side-mount tool changer
  • Remote Jog Handle, Color LCD
  • X-axis linear scales
  • Intuitive Probe System
  • Through Spindle Coolant
  • Rigid Tapping
  • 95-Gallon Coolant Tank

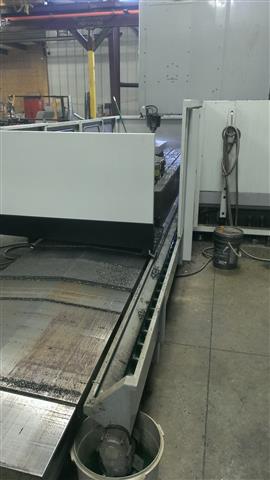

  • Chip Auger
  • Programmable Coolant Nozzles
  • Intuitive Probing, Renishaw
  • Expanded Memory

Comments:

  • Power On - 10,219 hours
  • Cycle Start - 4186 hours
  • Cutting - 3564 hours
  • Machine cost when new was $404,000
  • Machine build new was completed in Feb. 2014 - current owner took delivery
  • several months later.
  • Here are irepairs that have been made to this machine:
  • 1. new rails skates - not sure haas says they just wear some times
  • 2. Encoder - has a coolant leak that messed up
  • 3. Counter balance cylinder has very very slow leak we have the guage
  • to fill maybe once a year
  • 4. New spindle not sure why bearing locked up. We had it rebuilt by Setco
  • in Cincinnati
  • 5. One of the chip auger motors is out. We just didnt fix it - it works fine
  • 6. Tool setter is out being repaired by Renishaw. It just did communicate.
  • Probe works great.
  • I want to be completely honest and up front because I would like to be treated
  • the same.
  • Machine has been a great machine and as anyone knows ALL machines has
  • some little issue over all we are selling because only 4% of our work is required
  • to go across this machine
  • We are planning to replace with smaller machines
  • We have the guards we took off. It just easier putting big piece in it. The
  • coolant still stays contained.
