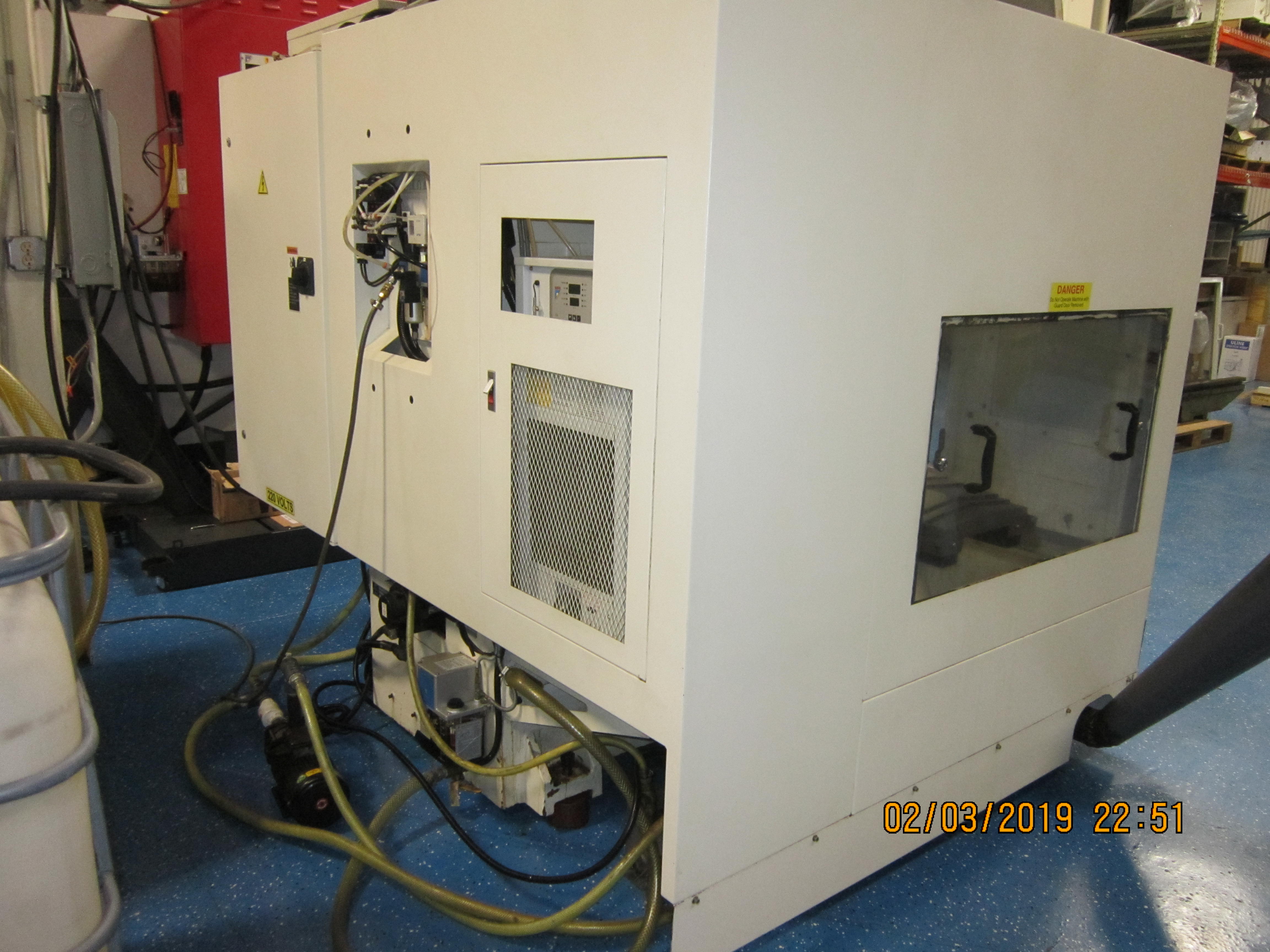

2014 FADAL 2516 R VMC

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


2516R
Machining Centers Vertical Horizontal CNC
Vertical Machining Centers
new
8800 (LB)
2014
$0.00

Description

VMC-2516R

Classic Series CNC Vertical Machining Center with Fadal 64MP Controller with 30" x 15" table

Machine Type:

Machining Center

Num. of Axes:

3   Opt. 4

Work Support:

Bed

Column Construction:

Single

Column Style:

Stationary

Operation Type:

CNC

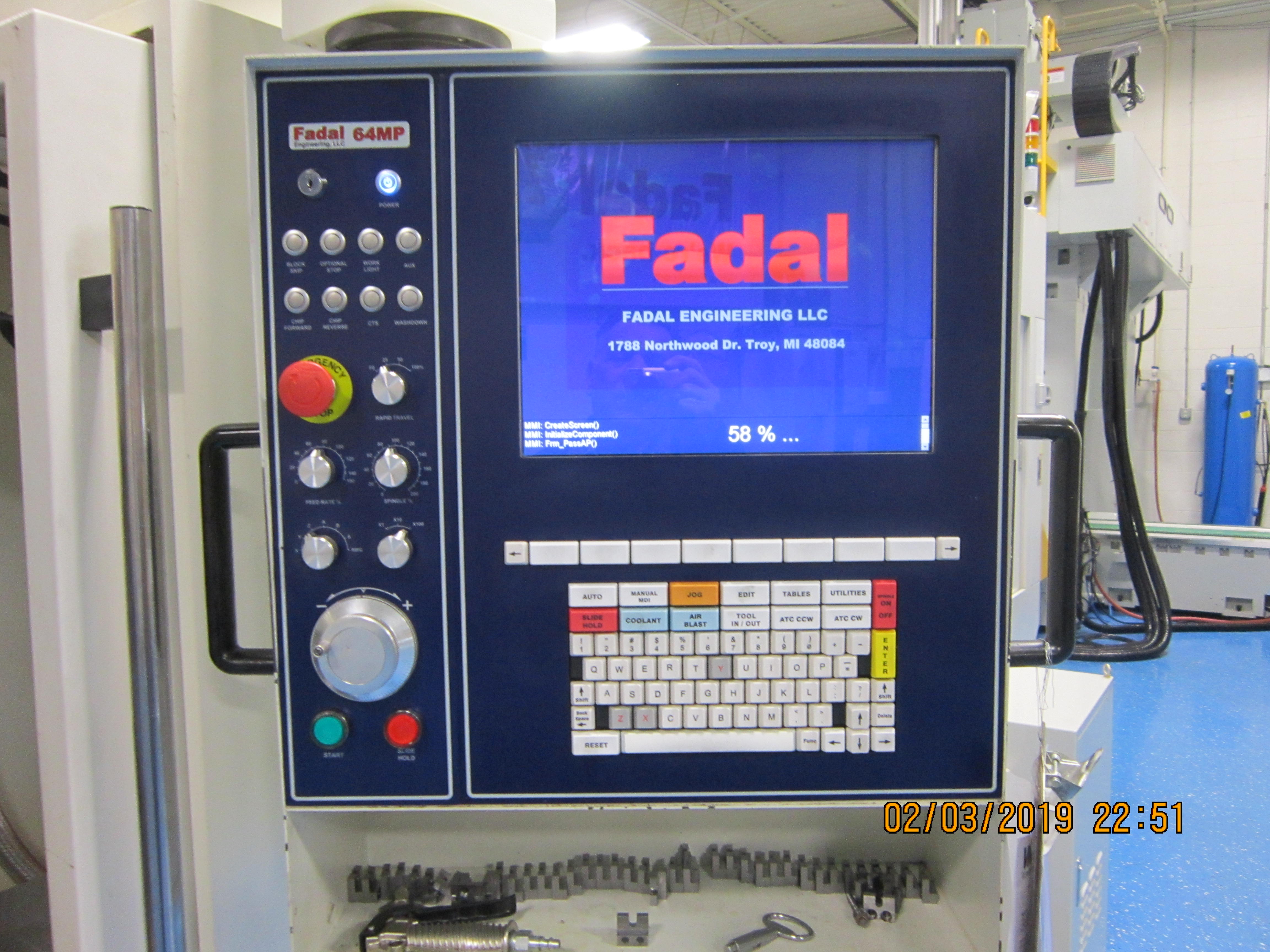

CNC Brand:

Fadal 64MP

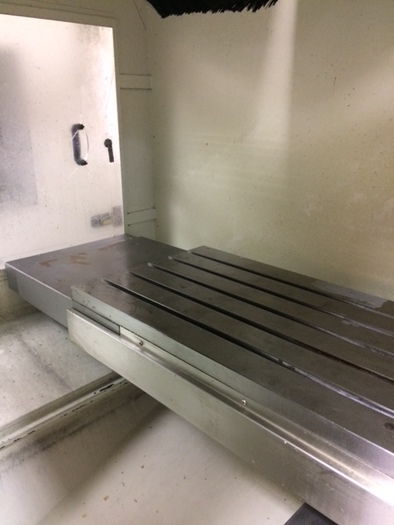

TABLE/WORK SUPPORT

Table Size L x W (in.)

30.000 x 15.000

Max. Workpiece Weight (lbs)

2,000

Pallet Changer

Optional

No. of Pallet

Index Table

Optional

Rotary Table

Optional

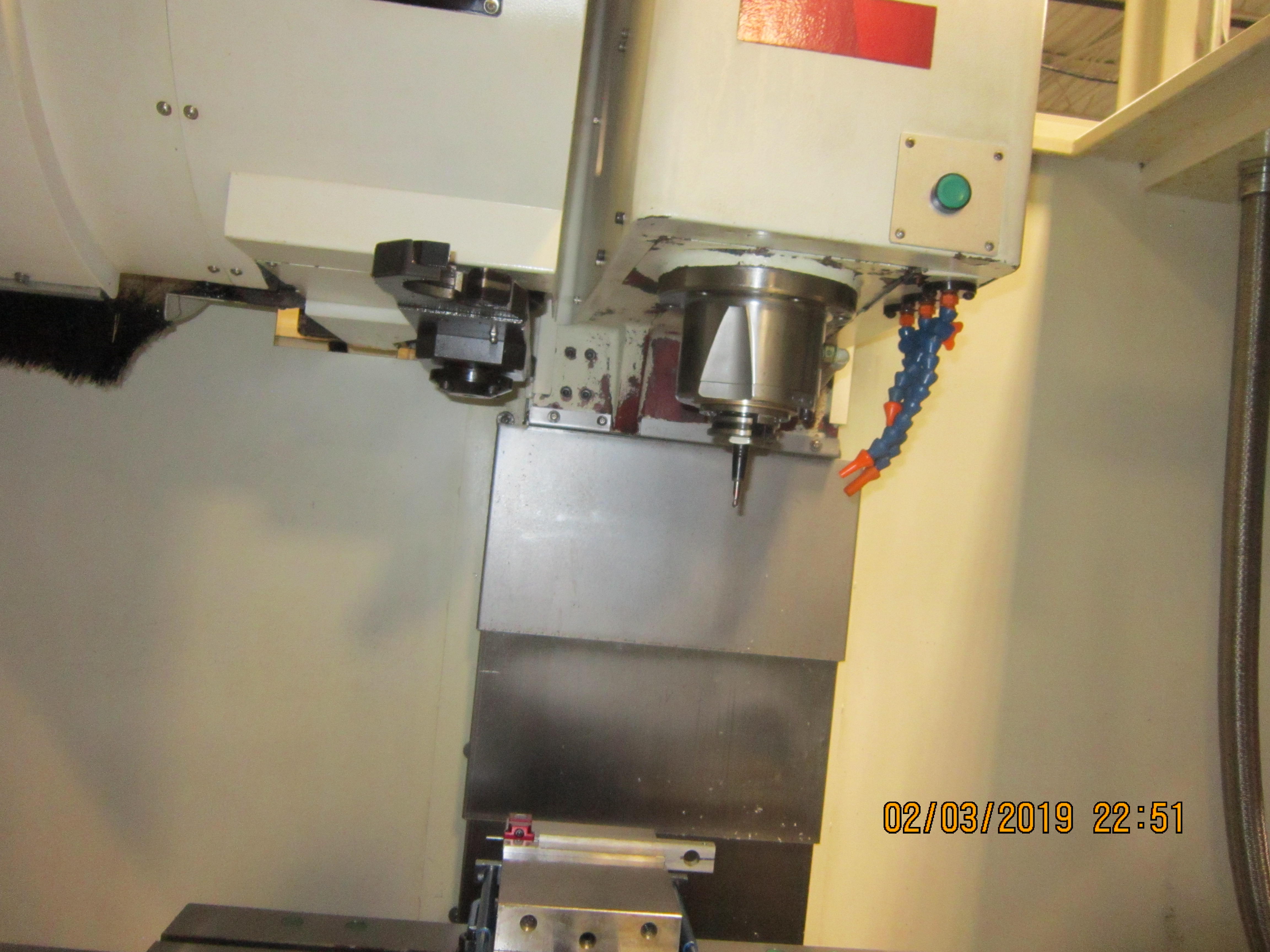

SPINDLE(S)

Num. Main Spindles

1

Orientation

Vertical

Taper

CAT #40 BIG Plus

Top RPM

10,000

Horse Power (30 min rating)

15.00

# Speed Ranges

1

Type

Fixed

TOOLING

Primary Tool Carrier(s)

ATC Dual Arm

Number of Tools

24

Max. Tool Length (in.)

13.800

Max. Tool Diameter (in.)

4.900 (with empty adacent pockets)

Max. Tool Weight

15.00



AXES AND TRAVELS

Number of Axes: 3   Options: (4 )   U Axis: None

Travel

Max Feed

Rapid Rate

X1

Std. 26.000 in.

790 ipm

1,400 ipm

Y1

Std. 16.000 in.

790 ipm

1,400 ipm

Z1

Std. 20.000 in.
