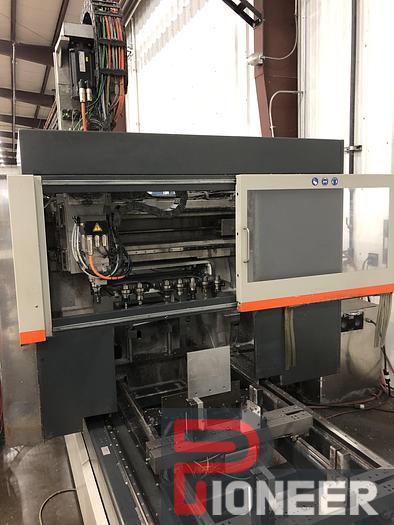

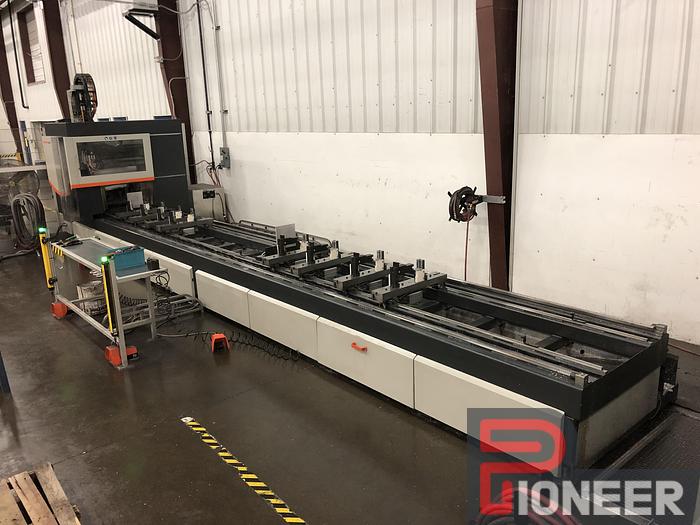

PROFILE MACHINING CENTRE SBZ 140 ELUCAM

4-axis profile machining centre

Designed for economical and efficient machining of aluminium and thin-walled steel

profiles

All operations, such as routing, drilling and tapping are performed while the profile bar is

stationary to protect the profile surfaces

Machining with all tools at angles continuously adjustable from 0 deg - 180 deg

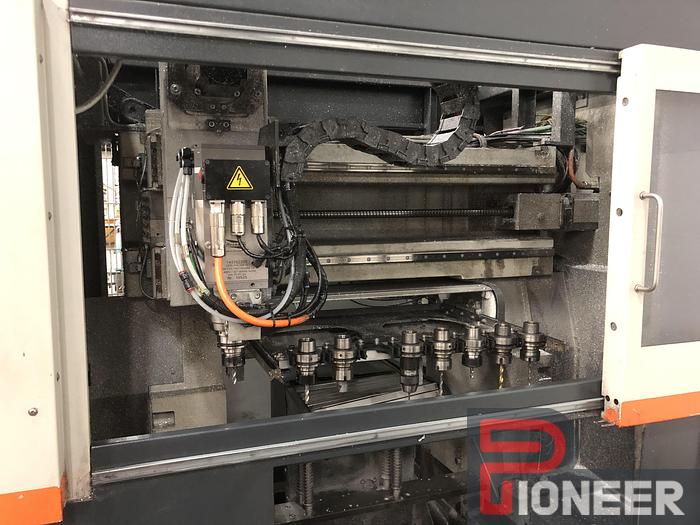

The on-board tool magazine ensures that tool changing times are kept short, thereby

optimising machining cycles

The magazine can be equipped with eight tools

A rotating angle head with two different tools is available for double-bar and end

machining

(0 deg   90 deg   180 deg  270 deg) (option)

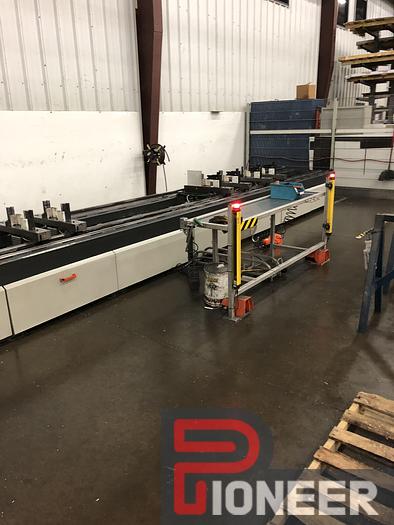

Two separate working zones enable machining in shuttle operation (option)

4-axis controller

15" colour display, USB ports and network connection

Windows operating system

eluCam

Hours

Power on   13661 hrs

Spindle    3939 hrs.

Specifications:

Manufacturer Elumatec

Model SBZ 140

Year 2014

Condition Used

Stock Number UM-ESBZ140

Traverse path Y-axis 850 mm, Vmax. 60 m/min

Traverse path Z-axis 650 mm, Vmax. 60 m/min

Pivoting angle A-axis 0 deg - 180 deg; freely programmable in 1/10 deg steps

Max. spindle speed 24,000 rpm

Spindle power output 11 kW, S1

Tool changer for eight tools additional tool positions on request

Compressed air supply 7 bar

Power supply 400 V, 3~, 50 Hz, 63 A

Max. machining length with profile end machining, 6,280 mm

Max. machining length without profile end machining, 6,400 mm

X-Axis Travel 6,280mm (20 ft-8 in) -- Two 10 ft zones for pendulum processing

Y-Axis Travel 645mm (25 in) -- If machining front and back  300mm (11.8 in)

Z-Axis Travel 250mm (9.8 in)

Additional Features:

Clamping unit accommodates double profile machining

Collet chucks

Collets

Tools

eluCad (office software package for optimized production management) will have to make sure software is transferable
