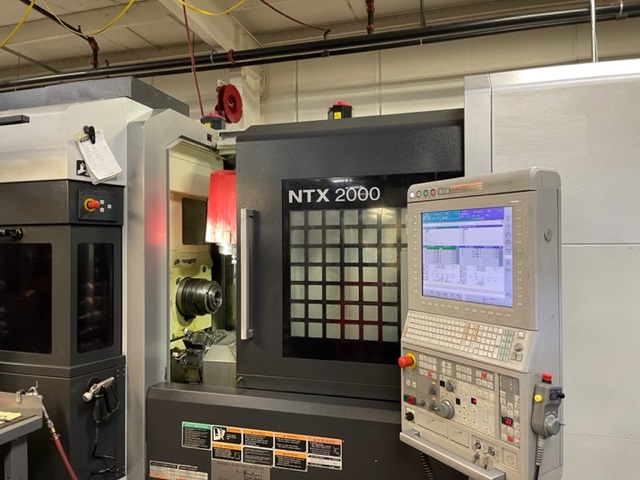

2014 DMG-MORI NTX2000-1500 SZM, LATHES, CNC, COMBINATION, 3-AXIS OR MORE MACHINE # 8305

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


NTX2000-1500 SZM
Lathes and Turning Centers CNC
Turning and milling center
used
34800 (LB)
2014
$0.00

Description

Reference #: 8305
Machine Type: CNC Lathes
Year: 2014
Manufacturer: DMG-Mori
Model: NTX2000-1500 SZM
Control: Celos Control (Fanuc 31iB
Condition: Used
Under Power: Yes
Code: L2155
Specifications:
Turning Diameter: 24.02"
Turning Length: 60.6"
Swing Diameter Max. Over Bed Cover: 25.98"
Travel Turret No. 1 (Milling Spindle) - X: 19.4"
Travel Turret No. 1 (Milling Spindle) - Y: + / - 4.9"
Travel Turret No. 1 (Milling Spindle) - Z: 61.4" +10.0"
Swivel range Turret No. 1 - B-Axis X/Y/Z: +/- 4.7"
Rapid traverse feeds turret 1 (milling head) X/Y/Z: 1574 IPM
Milling Spindle Speed: 12,000 RPM
Power Capacity - Milling Spindle: 24.8 / 14.7 HP
Tool Taper Milling Spindle: HSK-A 63
ATC Milling Spindle (Turret 1): 76
Tool change time tool/tool, milling spindle: 1.2 seconds
Turret No. 2 Stations (Rotary Tools): 10/10
Turret 2 Tool Speed: 10,000 RPM
Travel X/Y Turret 2: 160"
Turret 2 Power Rotary Tools: 2.0 HP
Turret 2 Tool Speed: 6,000 RPM
Spindle 1 Speed: 5,000 RPM
Spindle 1 Motor: 30 HP
Spindle 2 Motor: 30 HP
C-Axis Spindle 1 and 2: 0.001 degree
Bar capacity spindle 1: 3.1
Spindle 2 Speed: 5,000 RPM
Spindle 2 Motor: 29.5"
Bar Capacity Spindle 2: 2.5"
Machine Dimensions: 160" X 117" X 103"
Machine Weight: 34,800 Lbs
Equipped With:
Celos Control (Fanuc 31iB5) Control
MSX 711 Mapps IV
76 Tools
Coolant Gun
Chip Conveyor
Renishaw MP700
Signal Tower
4 MB Storage
Mfg Suite

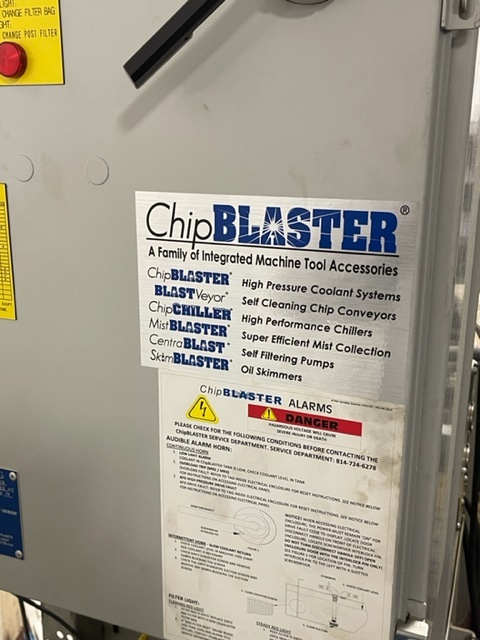

Chip Blaster JV40
