2013 OKUMA MILLAC 33T MACHINING CENTER #6848

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


Millac 33T
B6175A
Vertical Turret Lathes VTL
CNC Vertical Turret Lathes
used
13500 (LB)
2013
$0.00

Description

Reference #: 6848

Machine Type: Vertical Lathes

Year: 2013

Manufacturer: Okuma

Model: Millac 33T

Control: Fanuc 31IA5

Condition: Good

Under Power: Can be

Code: B6175A

Specifications:

X-Axis travel: 13.40"

Y-Axis travel: 11.81"

Z-Axis travel: 14"

Max. Table Weight: 440 Lbs

Max. Turning Diameter: 9.84"

Max. Turning Length: 8.66"

Max. Swing: 18.11"

Spindle Center Height from Floor: 35.43"

Spindle Table: CT 40

Spindle Speed (Upper): 12,000 RPM

Spindle Motor (Upper): 20/15 HP

Spindle Speed (Lower): 6,000 RPM

Spindle Motor (Lower): 20/15 HP

Automatic Tool Changer: 30 Positions

Tool Length Capacity: 11.81"

Tool Diameter: 4.7"

Max. Tool Weight: 22 Lbs

Coolant Tank Capacity: 120 Gallons

Dimensions (W x D x H) with Rear Exit Conveyor: 40" x 136" x 108"

Machine Weight: 13,500 Lbs

Equipped With:

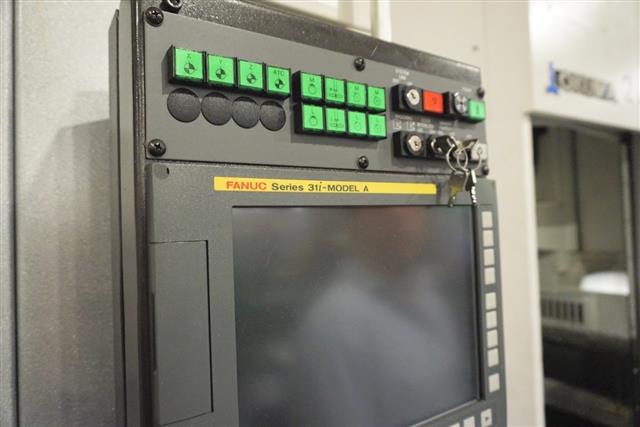

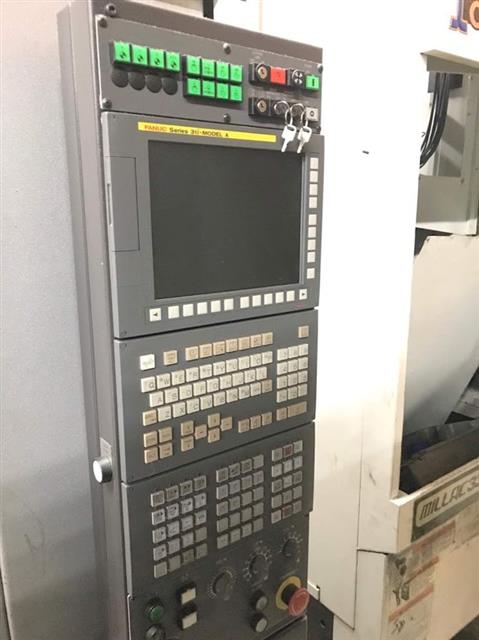

Fanuc 31IA5 CNC Contouring Control

10.4" Color LCD Screen

Background Editing Function

Tool Life Management

Big Plus Spindle

Spindle Chiller

Coolant Thru Spindle (1,000 PSI - MP Systems)

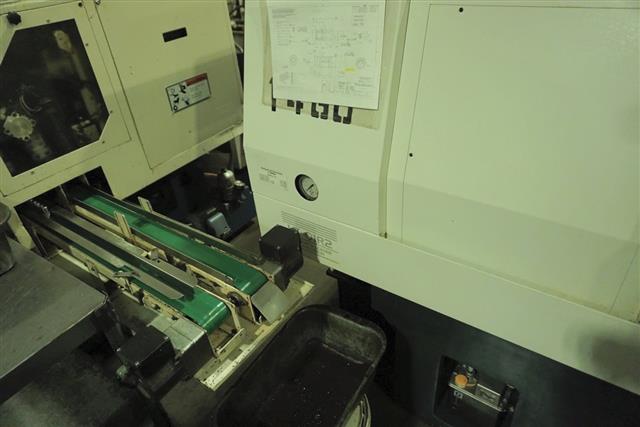

Chip Conveyor (rear / hinge type)

Many other control options

All Manuals available

10" Chuck

Comments:

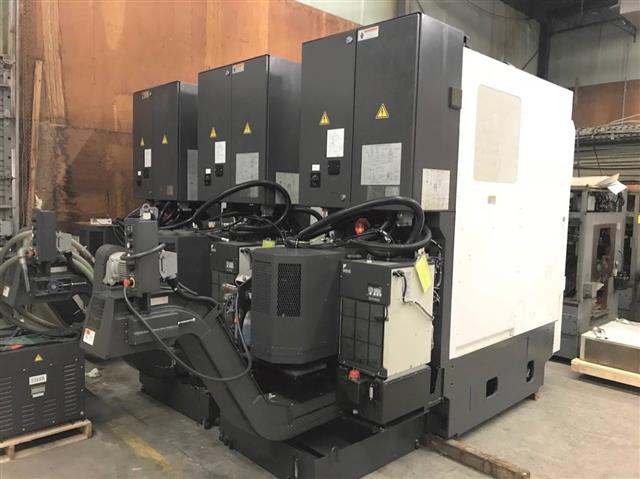

Three machines available - Two 2013 and One 2014

Low Hours

Moved into warehouse storage June 2018

The MILLAC 33T is a combination three axis vertical lathe/vertical

machining center that performs heavy-duty milling and turning

operations in one setup. It features quick startup of the M and L

spindles with a high power/high torque motor and a rapid traverse

rate of 1,575 ipm. Increased spindle clamping force makes the

MILLAC 33T the right choice for heavy milling operations. The high

speed automatic tool changer features a tool-to-tool time of 1.4 sec

and a chip-to-chip time 3.5 sec. The hang-down magazine is located

between columns, reducing tool preparation time. The proven box

type construction reduces vibration and tool chatter, even during

the heaviest cuts. The small footprint of the MILLAC 33T high

performance machining center makes it the ideal choice for shops

needing to add efficient milling and turning capability to their

machine inventory.
