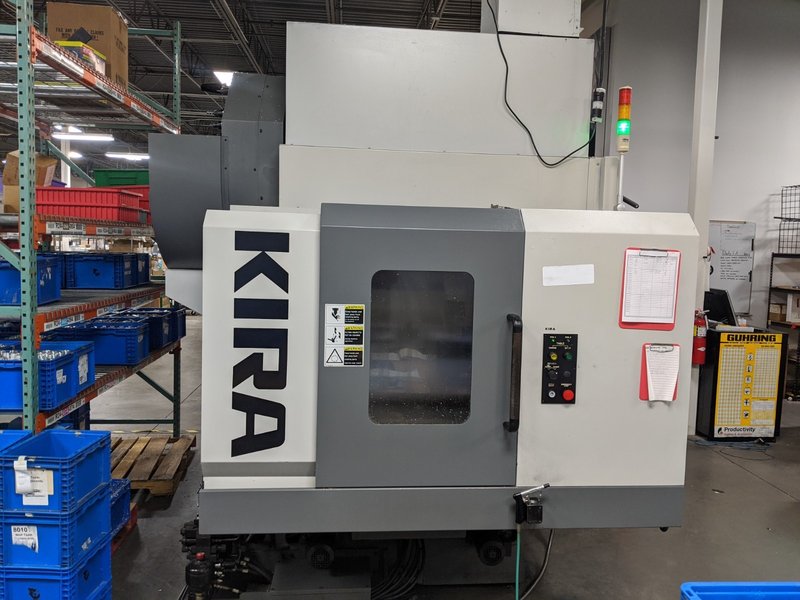

2013 KIRA DM43VCD VERTICAL MACHINING CENTER

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


DM43VCD
Machining Centers Vertical Horizontal CNC
Vertical Machining Centers
used
15432 (LB)
2013
$0.00

Description

SPECIFICATIONS:

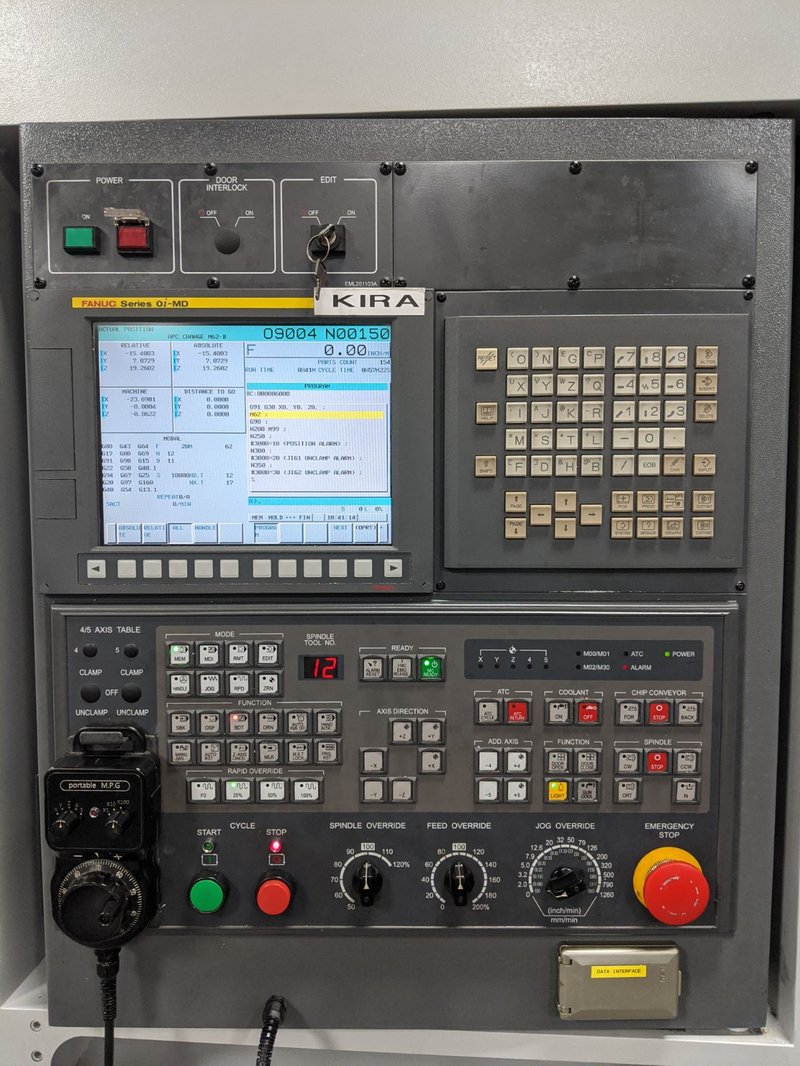

Control Fanuc 0i-MD Control with USB drive
Table Size(2) 27.56 in x 18.70 in
Max Table Load 882 Lbs
X-Axis Travel 23.62"
Y-Axis Travel 16.92"
Z-Axis Travel 22.44"
Spindle Nose to Table 7.87 in to 30.31 in
Spindle Speed 12,000 RPM
Spindle Motor 15/20 HP
Spindle Drive Type Belt Drive
Spindle Taper CT40
Tool Changer40 Position Side Mount
Rapid Traverse Rate (X, Y, Z)1890 IPM
Floor Space 95 in x 126 in
Machine Height 108 in
Machine Weight 15432 lbs
EQUIPPED WITH:
Fanuc 0i-MD Control with USB Drive
Optional 40 Position Tool Changer
Optional 12000 RPM, 20HP Spindle
Rigid tapping
Chip Conveyor

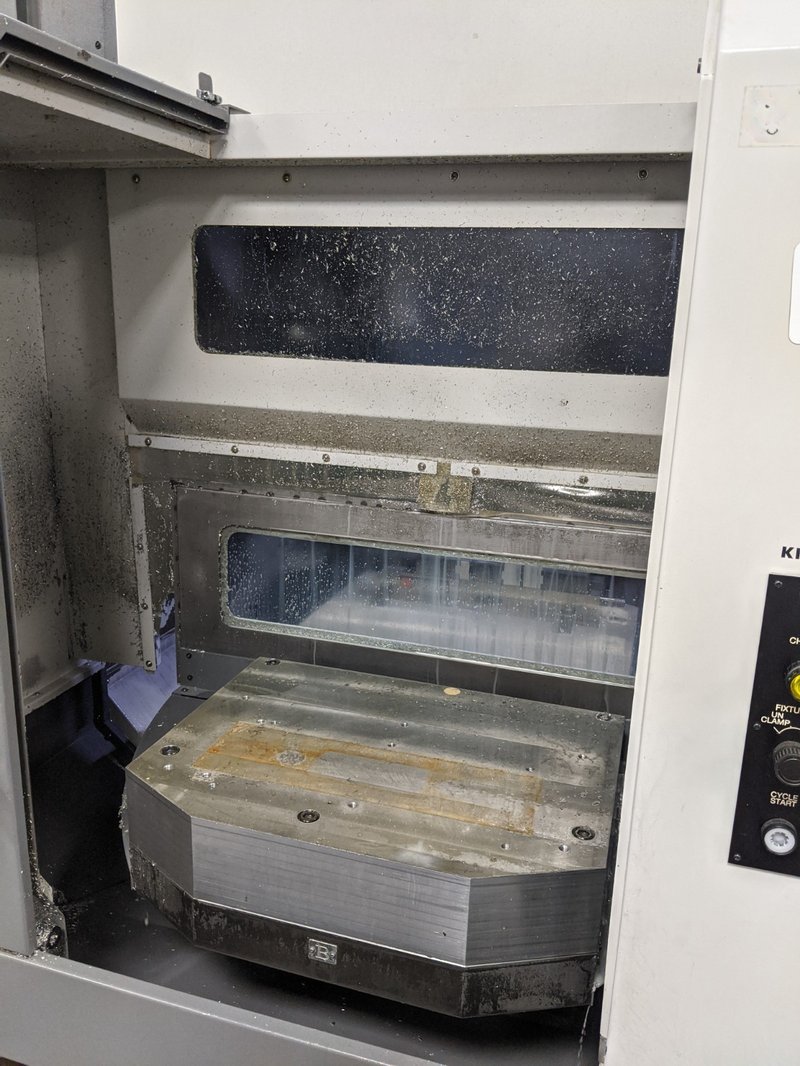

Rotary Dual Pallet Changer
Spindle Oil Chiller
Tooling Included:
20+ Cat 40 Tool Holders, Side Locks and ER Collet Chucks Complete with Pull Studs. Collets Not Included
Aluminum CTP Risers Plates Included
