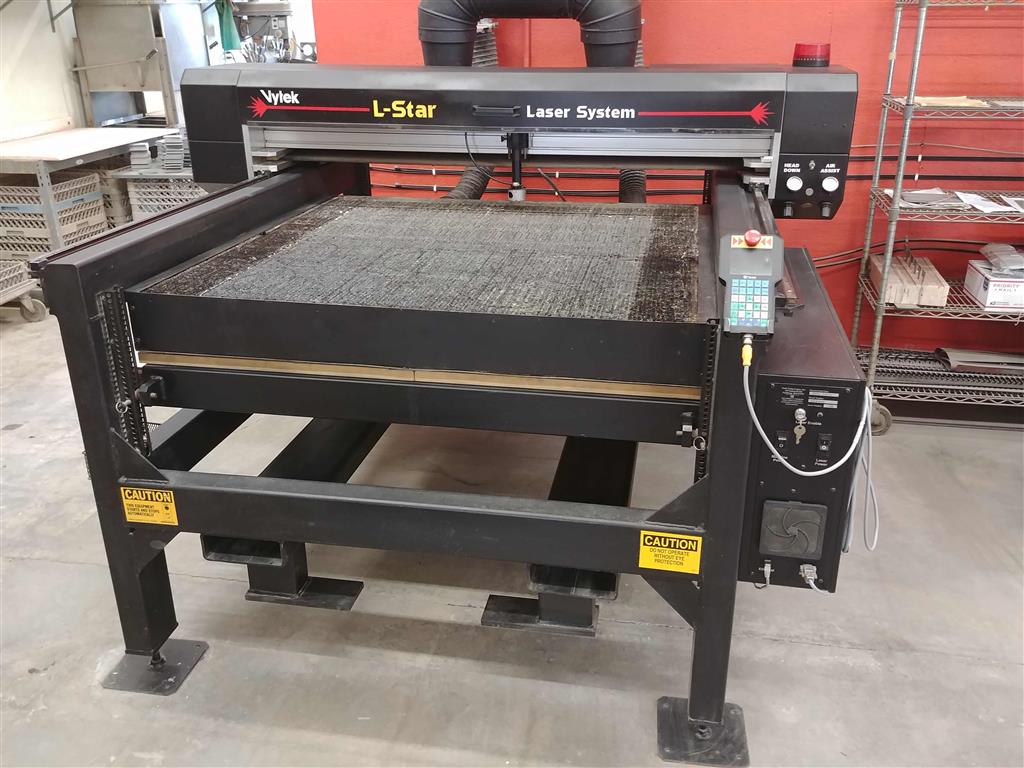

Reference #: 6876
Machine Type: Lasers
Year: 2012
Manufacturer: VyTek
Model: LS5050
Control:
Condition: Used
Under Power: Yes
Code: L0850
Specifications:
Travels: 50" x 50"
Laser Power Rating: 150 Watts (CO2)
Equipped With:
Options not standard on this machine:
Plunger head for metal cutting, height follow and jumping over raised parts
Dual gas
Two tables - Removable metal and other cutting tray
Up and down draft
Basically all the bells and whistles offered when machine was made and a couple new bells
Modifications since purchase:
Dropped table and extended tube - better fume evacuating but might want to
raise for metal cutting
Accordion guard??
Quick change triple gas hub
Sealed mirror chamber to reduce cleaning intervals-went from monthly to
almost never
Positive pressure optic runs with oversized air filter
Tripled the updraft plinth size for better fume evacuation
48" (full Y axis) LED Light strip for better visibility
Optic temperature over heat sensor that shuts beam off before tube can
get damaged
Sealed pulley and side chamber with optical window
Comments:
New price was $132,000
Cuts up to 1" thick acrylic
Cuts up to 14ga steel
16 plus depth for etching tall objects
It`s been mostly idle since we recharged the tube and bought the bigger laser
in 2015
New bearing rails blocks in 2016
Has been in a climate control environment with max shop temp of 76 deg
You will see from my shop I am very fastidious about organization and repair
Lots of power in a relatively small size, still a big machine. Great for smaller shop
Open bed so parts larger than 48x48 can be feed
New honeycomb
