Description

Original Travels:

• X-Axis: 1200.78”
• Y-Axis: 196.8”
• Z-Axis: 137.7”

Actual Travels:

• X-Axis: 127 Feet
• Y-Axis: 24 Feet
• Z-Axis: 6 Feet

Rapids:

• X, Y, and Z Axes: 1,181 ipm

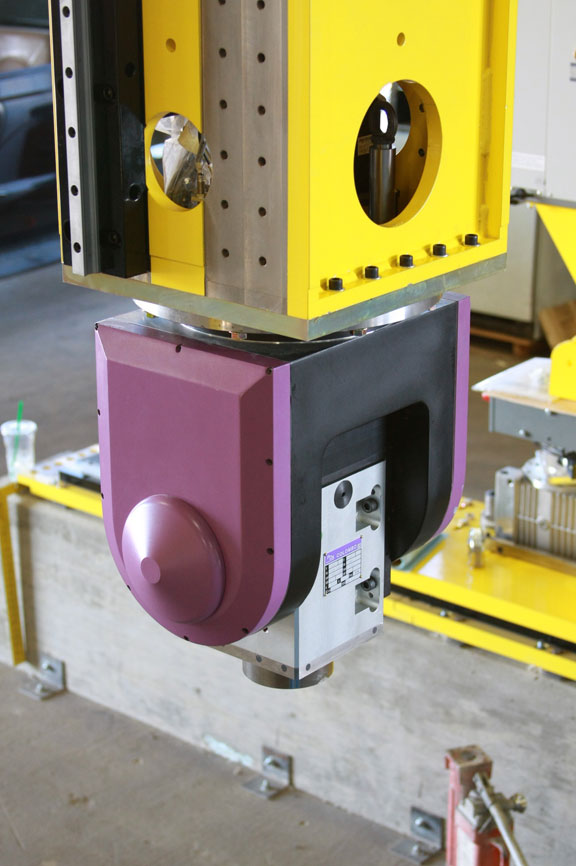

C-Axis:

• Rotation: +/- 225 degrees
• Max. Speed Cont (@ 3000 rpm): 72 deg/sec
• Max. Speed Positioning (@3000 rpm): 110 deg/sec
• Max. Torque continuous: 221 Ft Lbs
• Max. Torque non-continuous: 272 Ft. Lbs

ATC:

• Positions: 24 (expandable)

Comments:

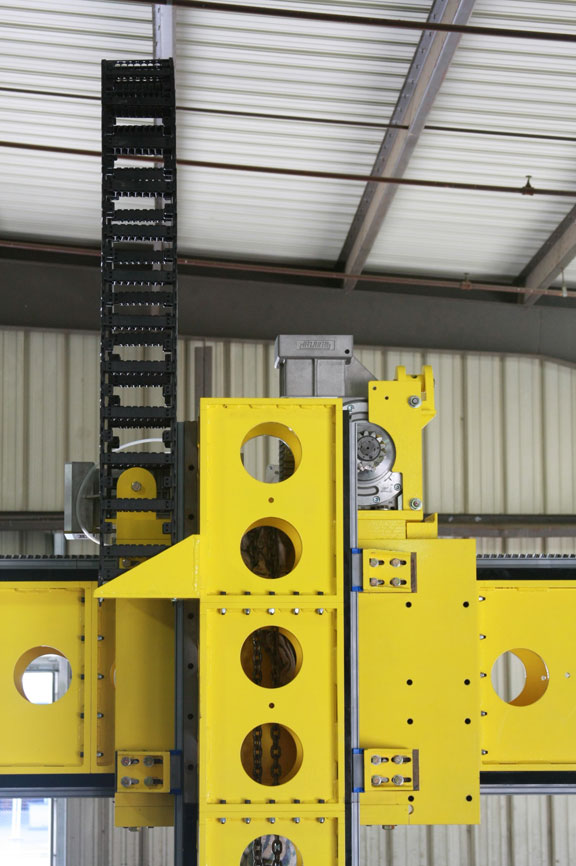

• Pre-loaded dual rack and pinion with AC servo motors that feed back to
• each other to maintain accuracy
• HIM Controller: Color screen, Cam-Soft platform, PC based
• conversational. System accepts virtually any solid or surface file format
• for programming. Customer configurable
• Potentially 32 axis machine, cognitive controller upgrade, with optional
• interfaced Laser Interferometry TCP tracking with built-in Temperature
• controls that measure heat, humidity, and barometric pressure for large
• area high accuracy positioning
• Built for the aerospace, automotive, ship building, wind energy, and the
• pre-fab industries

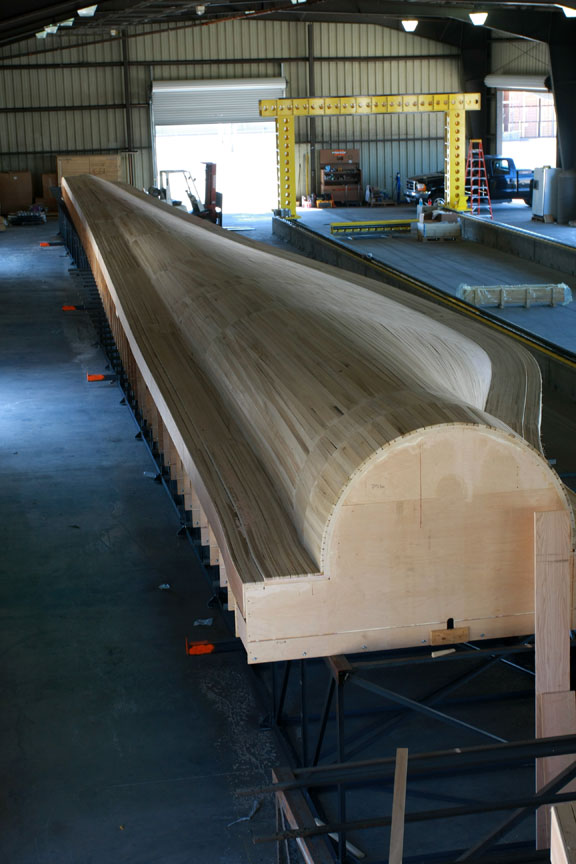

• Initially designed to mill wind generator blade molds and because it is
• built on two meter long blocks, you can expand these dimensions or
• reduce them as required.
• Additionally, system designed to machine composites and light alloys,
• perform MIG welding, assembly, dispensing mold agents,
• buffing/polishing, painting, and PFE automatic composite layup
• (patented).
• Important: This machine can reduce the number of machines required
• to make a part without having to transfer the part, so your accuracies
• remain intact.
• Machine can be customized to fit your needs! Or sold as offered.
• NEW 2012 - Original cost was $3,000,000.00
